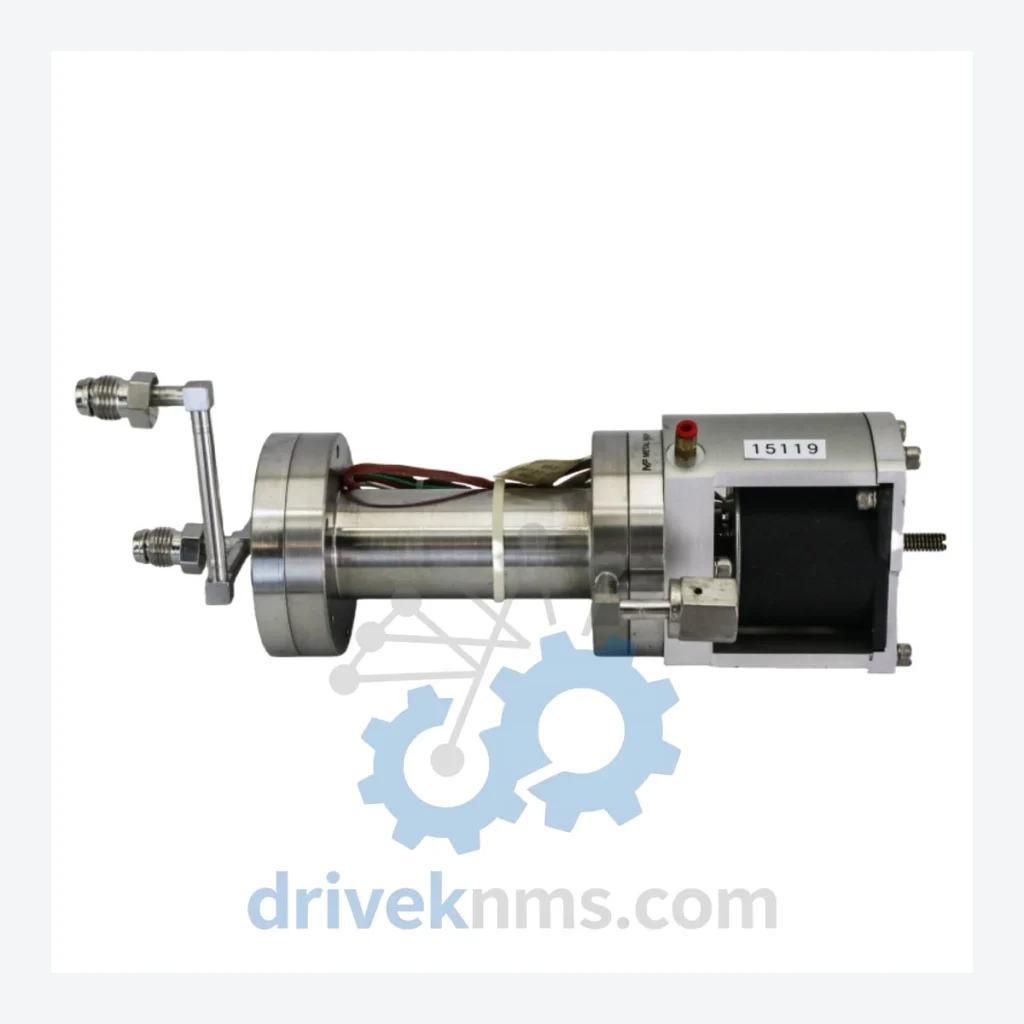

Novellus 02-454637-00 Pedestal Cylinder Assembly – Obsolete SPEED/SEQUEL Spare Part

Technical Dossier

Product Details And Specifications

Novellus 02-454637-00 Pedestal Cylinder Assembly – Obsolete SPEED/SEQUEL Spare Part

When a pedestal cylinder assembly fails on a Novellus SPEED or SEQUEL CVD platform, the production line does not pause — it stops. The cost of sourcing a replacement through OEM channels no longer exists: Novellus Systems was acquired by Lam Research in 2012, and the original manufacturing line for this assembly has long been discontinued. Fabs that have not secured spare inventory face a binary choice: source from the secondary market or commit to a full chamber upgrade that routinely exceeds $1–3 million USD in capital expenditure, plus weeks of lost wafer output. DriveKNMS maintains verified stock of the 02-454637-00 / P/N 1201006408 (EXPPTS03001) pedestal cylinder assembly — one of the most difficult-to-locate mechanical subassemblies in the Novellus legacy parts ecosystem.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Novellus SPEED and SEQUEL platforms were workhorses of 200mm and early 300mm CVD production through the 1990s and 2000s. Many fabs continue to run these tools for mature node production, MEMS, power devices, and compound semiconductors — applications where the economics of upgrading to a current-generation platform cannot be justified. The pedestal cylinder assembly (02-454637-00) is a high-wear mechanical component responsible for the vertical actuation of the wafer pedestal within the process chamber. Its failure directly halts wafer processing in the affected chamber.

Because Lam Research has not maintained the Novellus legacy parts catalog at the component level, procurement teams attempting to source this part through standard OEM channels will encounter dead ends. The secondary market is the only viable path. Fabs that delay this procurement decision until a failure event occurs typically face 4–12 weeks of unplanned downtime while a suitable part is located, inspected, and shipped. At a conservative estimate of $50,000–$150,000 USD per week in lost wafer output per chamber, the cost of not holding a spare is not a theoretical risk — it is a scheduled liability.

Maintaining one or two units of the 02-454637-00 in bonded spare inventory extends the operational life of each affected chamber by 5–10 years without requiring any process re-qualification, chamber modification, or engineering change order. This is asset protection at its most direct.

Condition & Reliability Assurance

DriveKNMS applies a 5-step inspection protocol to all legacy mechanical and electromechanical assemblies before shipment:

• Step 1 – Visual and Dimensional Inspection: Full external inspection for corrosion, mechanical damage, and dimensional conformance to OEM drawings.
• Step 2 – Electrolytic Capacitor Assessment: Where applicable, all electrolytic capacitors in associated control boards are evaluated for ESR drift and physical swelling — the primary failure mode in aged assemblies.
• Step 3 – Firmware Version Verification: For assemblies with embedded firmware, version compatibility with the TC-400 controller is confirmed prior to shipment.
• Step 4 – Pin and Connector Integrity Check: All electrical connectors and pneumatic fittings are inspected for oxidation, pin recession, and seal integrity.
• Step 5 – Functional Verification (where test fixtures are available): Actuation cycle testing is performed to confirm mechanical travel and response within OEM specification.

Each unit ships with a DriveKNMS inspection report. Condition grade (New Old Stock or Professionally Refurbished) is disclosed in writing prior to order confirmation.

Key Features for System Maintenance

• Drop-in replacement: The 02-454637-00 installs directly into the existing chamber pedestal interface — no mechanical modification required.
• No re-programming required: Compatible with the existing TC-400 controller configuration. Chamber recipes and process parameters remain unchanged after replacement.
• Avoids engineering change orders: Because this is an exact OEM part number replacement, no process re-qualification or change control documentation is triggered under standard fab maintenance protocols.
• Preserves capital asset value: Extending the operational life of a Novellus SPEED/SEQUEL chamber through targeted spare parts management defers multi-million dollar capital expenditure and maintains depreciated asset utilization.
• Long-term sparing strategy: Given the scarcity trajectory of Novellus legacy parts, procurement of multiple units for bonded spare inventory is strongly recommended for fabs operating more than two affected chambers.

FAQ

Q: What warranty applies to discontinued parts?
A: DriveKNMS provides a 90-day warranty against defects in materials and workmanship for all inspected and refurbished units. New Old Stock units are sold with a 30-day inspection warranty. Warranty terms are confirmed in writing at the time of order.

Q: How do I confirm the part is genuine and not a counterfeit?
A: All units sourced by DriveKNMS are traceable to documented supply chain sources. We provide full condition disclosure, inspection reports, and, where available, original OEM packaging documentation. We do not sell unmarked or unverified assemblies.

Q: Should I purchase more than one unit?
A: For fabs operating multiple Novellus SPEED or SEQUEL chambers, holding a minimum of one spare per two chambers is standard practice for legacy platform maintenance. Given the declining availability of this part number on the secondary market, procurement teams are advised to secure inventory now rather than at the point of failure.

Q: Can you source related Novellus legacy parts?
A: Yes. DriveKNMS specializes in hard-to-find Novellus, Lam Research legacy, and broader semiconductor equipment spare parts. Contact us with your full part number list for availability assessment.
