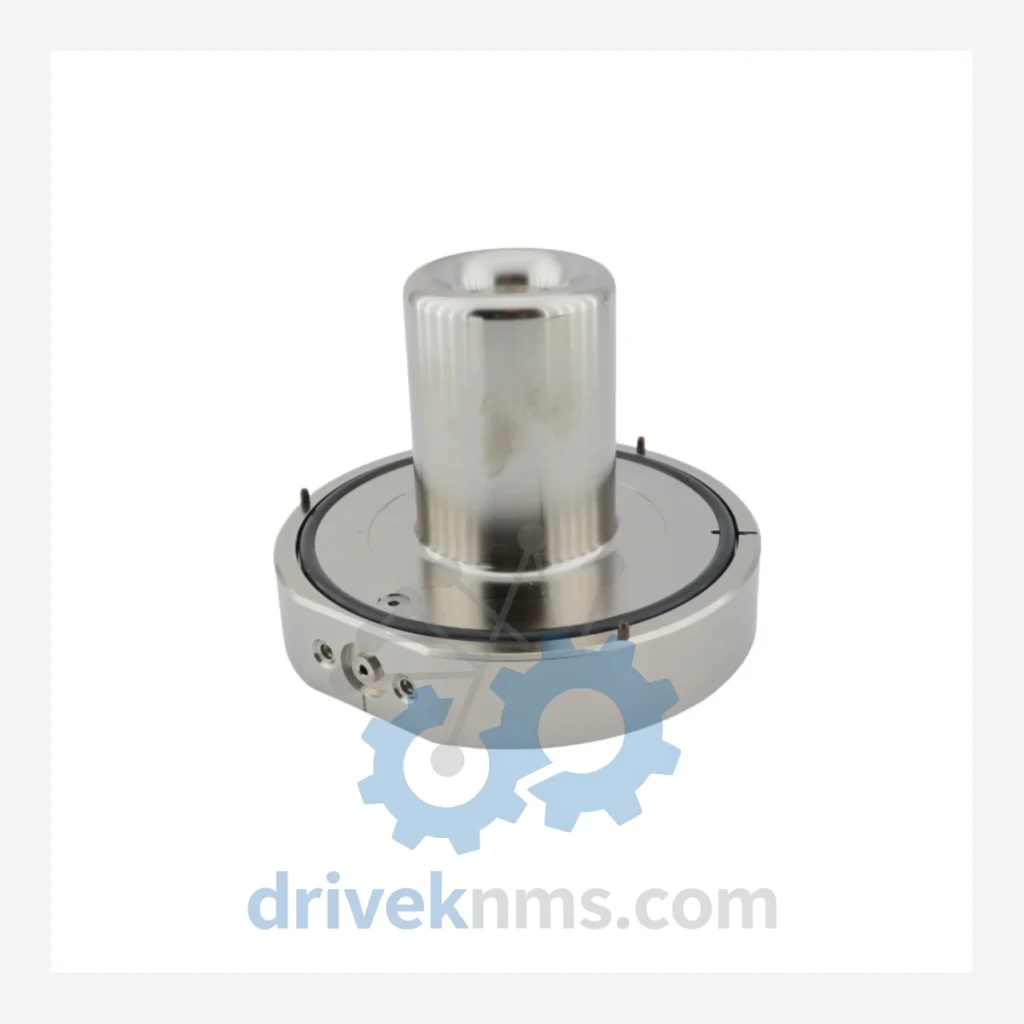

Novellus 16-145020-00 CVD Process Module – Obsolete Novellus/Lam Legacy Spare Part

Technical Dossier

Product Details And Specifications

Novellus 16-145020-00 CVD Process Module – Obsolete Novellus/Lam Legacy Spare Part

When a CVD process module fails on a legacy Novellus system, the consequences extend far beyond a single tool going down. A full fab line upgrade — replacing a Novellus Concept One, Sequel, Speed, or Vector platform — carries capital expenditure in the range of several million USD, plus months of process re-qualification, yield loss during transition, and engineering redeployment costs. For facilities operating mature nodes or specialty processes, that investment is rarely justified by the failure of a single module component.

DriveKNMS holds RFQ-reviewed sourcing status of the Novellus 16-145020-00 ETLB 25-125 / 2870RPM FDR 71B-50/2 HDP-CVD spare part — a component that has become increasingly difficult to source through standard distribution channels following Lam Research's acquisition of Novellus Systems. This listing represents a direct path to restoring tool uptime without triggering a platform-level capital decision.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters beyond those listed above are not published here to prevent misapplication. Contact our technical team for configuration-specific verification before installation.

Solving the Discontinued Hardware Crisis

Novellus HDP-CVD systems were the backbone of oxide deposition processes across logic, memory, and power device fabs throughout the 1990s and 2000s. Following the 2012 Lam Research acquisition, OEM support for legacy Novellus platforms was progressively wound down. By 2018, most Novellus-specific spare parts had been removed from active Lam distribution catalogs.

The result: facilities still running Novellus Concept One or Speed HDP-CVD tools — often for mature-node or specialty analog/power processes where re-qualification costs make platform migration economically irrational — face a shrinking pool of serviceable spare parts. Each tool-down event now carries the risk of becoming a permanent decommission decision, not because the tool has reached end of life, but because the replacement part cannot be sourced in time.

Asset Life Extension Strategy: How to Keep Legacy Novellus HDP-CVD Tools Running for 5–10 More Years

For plant managers and fab engineers facing pressure to retire aging CVD equipment, the following approach has been used successfully to defer platform replacement while maintaining process stability:

Condition & Reliability Assurance

All obsolete and legacy parts supplied by DriveKNMS undergo a structured 5-step quality verification process before dispatch review:

1. Visual and mechanical inspection: Full external examination for physical damage, pin corrosion, connector integrity, and housing condition. Parts with evidence of field damage beyond normal wear are rejected at this stage.
2. Electrolytic capacitor assessment: For assemblies containing PCB-level components, capacitor aging is evaluated. Electrolytic capacitors in legacy assemblies are a primary failure mode after extended storage; affected units are flagged for component-level refurbishment or rejected.
3. Firmware and revision verification: Where applicable, firmware version and hardware revision are confirmed against known-compatible configurations for the target platform. Mismatched revisions are documented and disclosed prior to sale.
4. Pin and contact corrosion inspection: All electrical connectors are inspected under magnification for oxidation, fretting corrosion, and contact deformation. Affected contacts are cleaned or the unit is rejected.
5. Functional verification (where test equipment permits): Mechanical assemblies are tested for rotational specification compliance. Electrical assemblies are bench-tested where DriveKNMS test fixtures support the part type.

Key Features for System Maintenance

• Drop-in replacement: The 16-145020-00 is a direct OEM part number replacement. No mechanical modification, re-engineering, or custom fabrication is required for installation.
• No reprogramming required: This is a hardware assembly, not a programmable controller. Replacement does not require recipe re-entry, controller reconfiguration, or process re-qualification — reducing mean time to repair (MTTR) to the mechanical installation interval only.
• Avoids engineering reconstruction costs: Sourcing the original OEM part number eliminates the need to engage process engineers for compatibility assessment, avoiding day-rate consulting costs that frequently exceed the part value itself on legacy platforms.
• Preserves process qualification status: Using the original part number maintains the as-qualified hardware configuration of the tool, protecting existing process qualification records — a critical consideration for regulated production environments.

Q: How do I know the part is genuine and not counterfeit?
A: All parts are sourced from documented supply chains — original OEM surplus, decommissioned fab equipment, or authorized secondary market sources. Part markings, date codes, and physical characteristics are verified against known-authentic references. We do not source from unverified brokers. Traceability documentation is available on request.

Q: Can DriveKNMS source other Novellus legacy parts not listed on the website?
A: Yes. Submit your full part number list to our procurement team. We maintain an active sourcing network for Novellus, Lam Research legacy, and other discontinued semiconductor equipment components.
