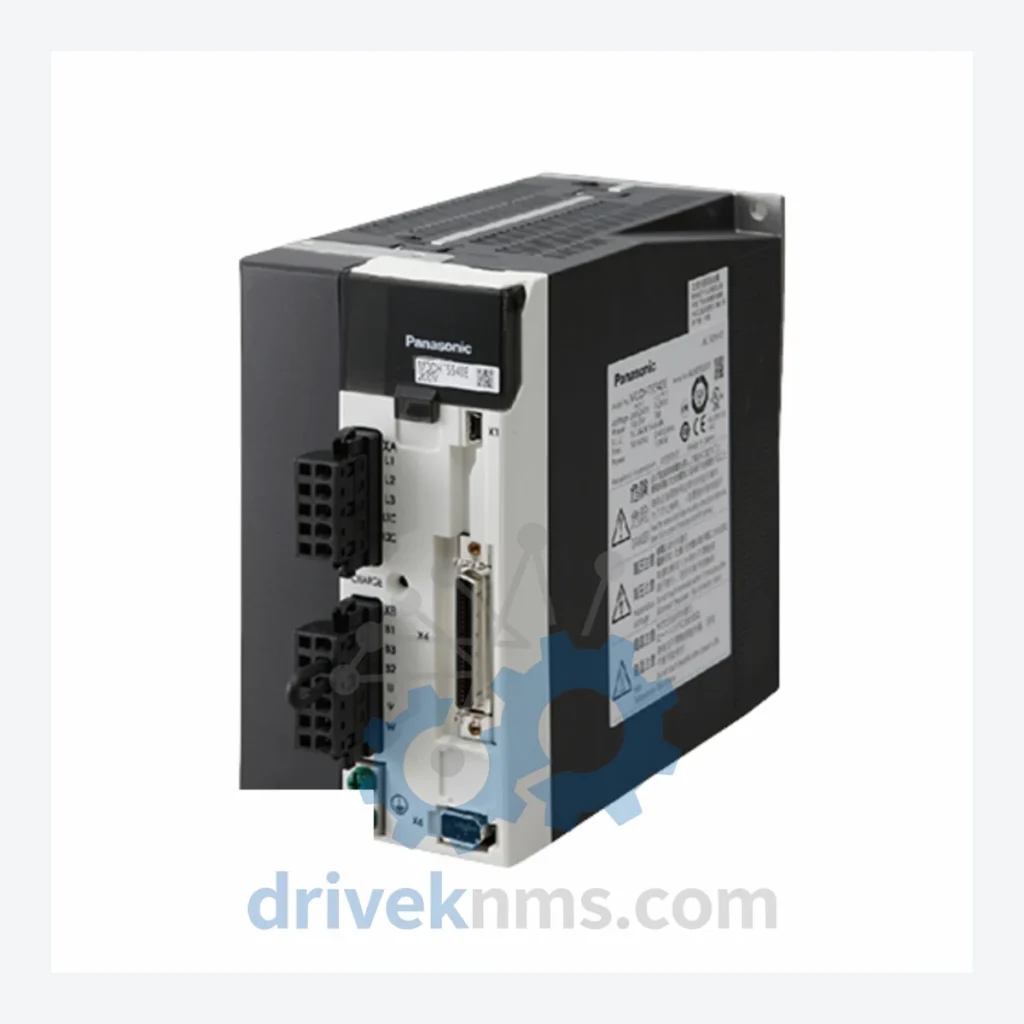

Panasonic MINAS A5 Series Servo Drives MADKT1505E

Technical Dossier

Product Details And Specifications

Panasonic MINAS A5 Series Technical Notes

The Panasonic MINAS A5 series represents one of the most widely deployed AC servo drive platforms in global heavy industry. Installed across petrochemical refineries, nuclear auxiliary systems, steel rolling mills, and large-scale automated assembly lines, the MINAS A5 platform is recognized for its high-resolution 20-bit encoder feedback (1,048,576 pulses/rev), real-time auto-tuning, and full-closed loop control capability. Its modular architecture supports a continuous output range from 50 W to 15 kW, making it applicable across precision positioning axes and high-torque industrial drives alike. The MADKT1505E specifically is a 1.5 kW, 200 V class driver in the A5 family, widely used in packaging machinery, semiconductor handling equipment, and CNC auxiliary axes.

The Evolution of MINAS A5 Architecture

Panasonic's MINAS servo lineage began with the MINAS A-series in the early 1990s, establishing the foundational pulse-train and analog command interface that remains backward-compatible through successive generations. The MINAS A4 series introduced enhanced vibration suppression and expanded network options. The MINAS A5 series, released circa 2009–2010, marked a significant architectural step: adoption of a 20-bit absolute encoder (replacing the prior 17-bit incremental standard), integration of RTEX (Real-Time Express) high-speed serial communication at 100 Mbps, and a redesigned power stage for improved thermal efficiency.

The A5 series is segmented into sub-families: the standard MADDT / MADKT drivers (200 V class), the MFDDTB / MFDDLB drivers (100 V class), and the large-capacity MBDDT / MBDKT drivers (up to 15 kW). The RTEX network variant uses the MADKT prefix, while the standard pulse/analog variant uses MADDT. Compatibility between A5 drivers and A6 motors requires parameter-level configuration; direct drop-in replacement is not guaranteed without firmware verification. As of 2024, the MINAS A6 series is Panasonic's current-generation platform, positioning the A5 as a mature/end-of-active-production series — making reliable spare parts sourcing critical for installed-base maintenance.

MINAS A5 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the Panasonic MINAS A5 series, organized by functional category and power class:

200 V Class — Standard Pulse/Analog Interface (MADDT)

• MADDT1005: 100 W, single-phase 200 V, pulse/analog command, standard I/O servo driver
• MADDT1507: 200 W, single-phase 200 V, pulse/analog command, compact footprint driver
• MADDT2507: 400 W, single/three-phase 200 V, pulse/analog, general-purpose positioning driver
• MADDT3507: 750 W, three-phase 200 V, pulse/analog, mid-range torque control driver
• MADDT5507: 1.0 kW, three-phase 200 V, pulse/analog, high-dynamic response driver
• MADDT7507: 1.5 kW, three-phase 200 V, pulse/analog, standard industrial servo driver

200 V Class — RTEX Network Interface (MADKT)

• MADKT1005E: 100 W, single-phase 200 V, RTEX 100 Mbps network servo driver
• MADKT1507E: 200 W, single-phase 200 V, RTEX network, compact axis driver
• MADKT2507E: 400 W, single/three-phase 200 V, RTEX network, multi-axis capable driver
• MADKT3507E: 750 W, three-phase 200 V, RTEX network, mid-power network-controlled driver
• MADKT5507E: 1.0 kW, three-phase 200 V, RTEX network, high-speed positioning driver
• MADKT1505E: 1.5 kW, three-phase 200 V, RTEX 100 Mbps, 20-bit absolute encoder interface driver
• MADKT2005E: 2.0 kW, three-phase 200 V, RTEX network, high-torque axis servo driver

Large Capacity — 200 V Class (MBDDT / MBDKT)

• MBDDT2210: 3.0 kW, three-phase 200 V, pulse/analog, large-capacity industrial driver
• MBDDT3510: 5.0 kW, three-phase 200 V, pulse/analog, heavy-duty servo driver
• MBDKT2110E: 3.0 kW, three-phase 200 V, RTEX network, large-axis network driver
• MBDKT3510E: 5.0 kW, three-phase 200 V, RTEX network, high-power coordinated motion driver

100 V Class (MFDDTB / MFDDLB)

• MFDDTB3A2: 100 W, single-phase 100 V, pulse/analog, compact low-voltage servo driver
• MFDDTB5A2: 200 W, single-phase 100 V, pulse/analog, space-saving axis driver

Quality Control for the MINAS A5 Range

MINAS A5 drivers present specific test challenges due to their RTEX serial bus architecture and 20-bit encoder interface. Standard servo tester equipment is insufficient for full functional validation of RTEX-variant units. DriveKNMS applies the following protocol to all A5 units prior to dispatch:

• Power Stage Verification: DC bus voltage ramp test, IGBT gate drive signal integrity check, and inrush current measurement against factory specification.
• RTEX Communication Test: Full RTEX network handshake simulation using a Panasonic-compatible motion controller, verifying node address assignment, cyclic data exchange, and error frame rate at rated 100 Mbps.
• Encoder Interface Validation: 20-bit absolute encoder signal simulation to confirm serial encoder reception, battery backup circuit continuity (for absolute position retention), and multi-turn data integrity.
• Parameter Restore & Factory Default: All units are reset to factory default parameters (Pr0.00–Pr8.xx range) and verified against the published MINAS A5 parameter specification sheet before packaging.
• Load Simulation Run: Where test motor availability permits, a 30-minute loaded run at 50% rated torque is performed to confirm thermal management and fault-free operation.
