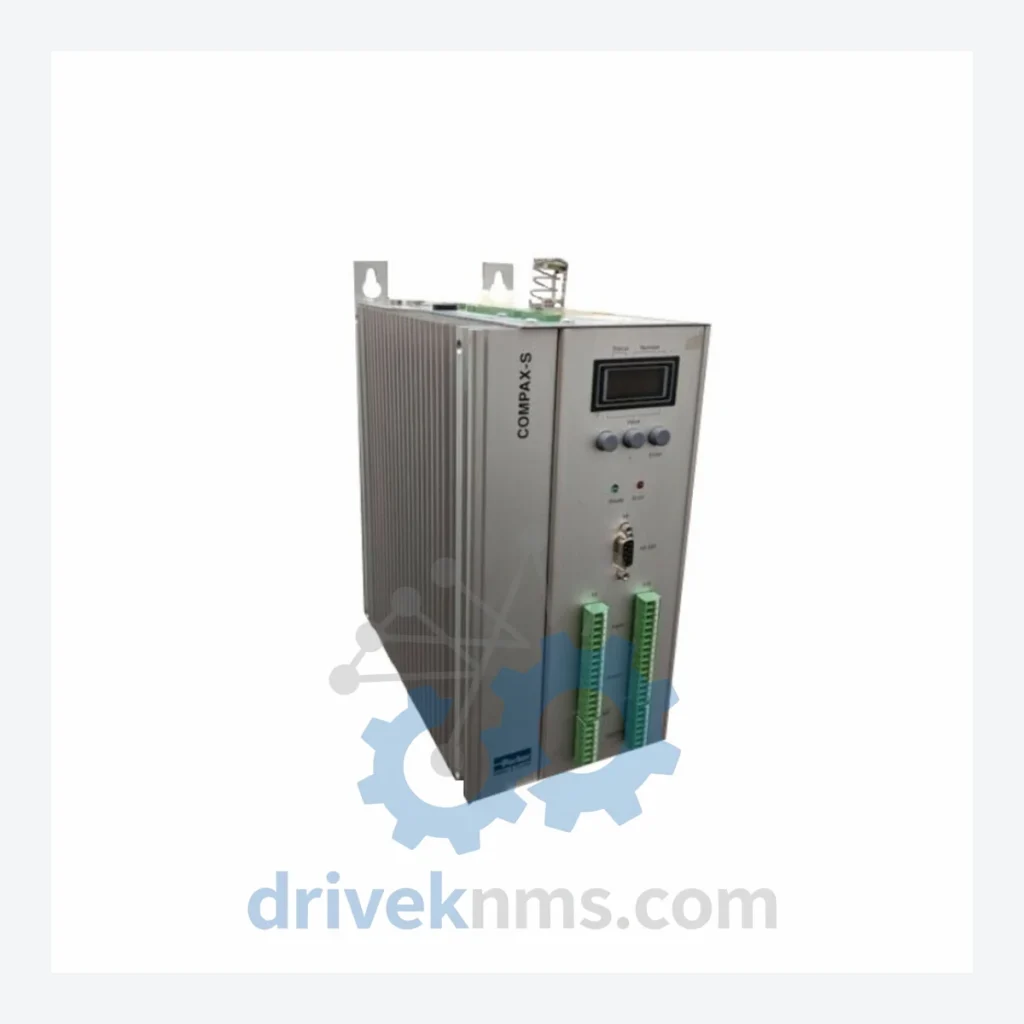

Parker CPX2570S/E2/F3 Servo Drive – Obsolete Compax-S Spare Part

Technical Dossier

Product Details And Specifications

Parker CPX2570S/E2/F3 Servo Drive – Obsolete Compax-S Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters are confirmed against original Parker documentation only. No parameters are assumed or extrapolated.

Solving the Discontinued Hardware Crisis

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

The CPX2570S/E2/F3 is not a generic drive. Its firmware, communication protocol, and axis configuration are tightly integrated into the surrounding Compax-S architecture. Substituting a modern drive requires re-engineering the motion program, reconfiguring the controller, and in many cases replacing the motor feedback hardware — a chain of dependencies that makes a simple swap anything but simple.

For plant managers facing this reality, the calculus is straightforward: a verified spare unit extends the operational life of the existing system by 5 to 10 years at a fraction of the cost of migration. That window is sufficient to plan a controlled, budgeted transition on the facility's own schedule — rather than under emergency conditions after an unplanned failure.

Facilities running Parker Compax-S systems should maintain a minimum of one cold-spare CPX2570S/E2/F3 per active axis. For high-utilization lines, two units per axis is the defensible standard. The cost of holding that inventory is negligible against the cost of a single unplanned outage.

Condition & Reliability Assurance

Obsolete parts sourced from secondary markets carry real risk. DriveKNMS applies a structured 5-step inspection protocol before any Compax-S unit is offered for sale:

• Step 1 – Visual and Mechanical Inspection: Full external examination for physical damage, connector pin condition, and housing integrity.
• Step 2 – Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mode in drives of this generation. Each unit is evaluated for capacitor condition; units with suspect capacitors are either reconditioned or rejected.
• Step 3 – Firmware Version Verification: The firmware revision is confirmed and documented. Mismatched firmware between a replacement drive and the host system is a known cause of commissioning failure.
• Step 4 – Pin and Connector Corrosion Check: All I/O, feedback, and power connectors are inspected under magnification for oxidation and contact degradation.
• Step 5 – Functional Verification: Where test infrastructure permits, units are powered and checked for basic operational response prior to shipment.

Units are shipped with full documentation of inspection findings. Condition grade (New, Refurbished, or Tested Used) is disclosed explicitly on every order.

Key Features for System Maintenance

• Drop-in replacement: The CPX2570S/E2/F3 installs directly into the existing Compax-S slot without mechanical modification.
• No reprogramming required: Motion parameters and axis configurations reside in the controller, not the drive. A correctly matched replacement unit does not require re-engineering of the motion program.
• Avoids engineering reconstruction costs: Maintaining the existing drive platform eliminates the need for system integrator engagement, new cabling, and controller reconfiguration — costs that routinely exceed the value of the equipment being replaced.
• Preserves validated process: For regulated industries (pharmaceutical, medical device, food processing), replacing a drive with a like-for-like unit avoids triggering revalidation requirements that a platform change would impose.
