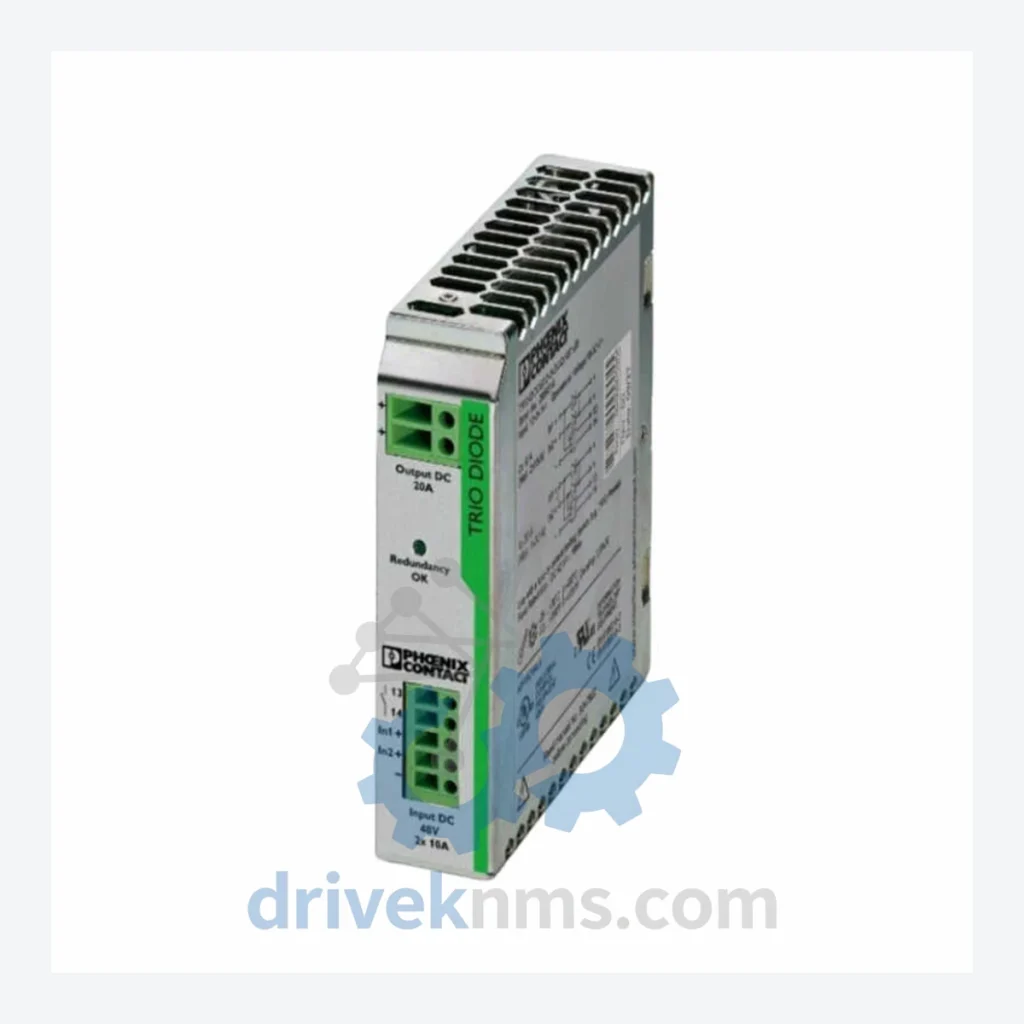

Phoenix Contact TRIO-DIODE/48DC/2X10/1X20

Technical Dossier

Product Details And Specifications

Phoenix Contact TRIO-DIODE Series Technical Notes

The Evolution of TRIO-DIODE Architecture

Phoenix Contact introduced the TRIO-DIODE series as a companion product line to the TRIO-PS modular power supply range, targeting the growing demand for redundant 24 VDC bus architectures in process automation during the early 2000s. Initial variants focused on 24 VDC systems with single-channel decoupling at 10 A and 20 A ratings. As industrial power demands scaled — particularly in DCS-heavy environments running Honeywell, Emerson DeltaV, and ABB 800xA — Phoenix Contact expanded the TRIO-DIODE range to cover 48 VDC bus voltages and higher current configurations (2×10 A, 1×20 A, 2×20 A, 1×40 A).

TRIO-DIODE Full Catalog & Functionalities (SKU List)

The following SKUs represent the confirmed TRIO-DIODE product range. Each entry includes the article number (Phoenix Contact order code) and a precise functional description.

TRIO-DIODE/12-24DC/2X10/1X20 (2866514): Redundancy module, 12–24 VDC input, 2×10 A + 1×20 A output decoupling.
TRIO-DIODE/24DC/2X10/1X20 (2866527): Redundancy module, 24 VDC, 2×10 A input channels, 1×20 A decoupled output — current listing SKU.
TRIO-DIODE/48DC/2X10/1X20 (2866530): Redundancy module, 48 VDC bus, 2×10 A inputs, 1×20 A output, Schottky decoupling.
TRIO-DIODE/24DC/2X20/1X40 (2866543): High-current redundancy module, 24 VDC, 2×20 A inputs, 1×40 A combined output.
TRIO-DIODE/48DC/2X20/1X40 (2866556): High-current redundancy module, 48 VDC, 2×20 A inputs, 1×40 A output for heavy-load bus rails.
TRIO-DIODE/12DC/2X10/1X20 (2866501): Redundancy module optimized for 12 VDC telecom and SCADA panel applications.
TRIO-DIODE/24DC/1X10 (2866569): Single-channel decoupling module, 24 VDC, 10 A, compact footprint for space-constrained enclosures.
TRIO-DIODE/24DC/1X20 (2866572): Single-channel decoupling module, 24 VDC, 20 A, direct DIN rail mount.
TRIO-DIODE/48DC/1X10 (2866585): Single-channel 48 VDC decoupling, 10 A, suited for telecom power bus redundancy.
TRIO-DIODE/48DC/1X20 (2866598): Single-channel 48 VDC decoupling, 20 A, for mid-range redundant bus configurations.
TRIO-DIODE/24DC/2X10/1X20/PT (2866610): TRIO-DIODE with integrated push-in terminal technology for tool-free wiring.
TRIO-DIODE/48DC/2X10/1X20/PT (2866623): 48 VDC push-in terminal variant, 2×10 A + 1×20 A, reduced installation time.
TRIO-DIODE/24DC/2X20/1X40/PT (2866636): High-current push-in terminal variant, 24 VDC, 40 A output, for high-density panel builds.
TRIO-DIODE/48DC/2X20/1X40/PT (2866649): High-current push-in terminal variant, 48 VDC, 40 A output.
TRIO-DIODE/12-24DC/2X20/1X40 (2866662): Wide-range input (12–24 VDC), 2×20 A inputs, 1×40 A output, dual-voltage plant compatibility.
TRIO-DIODE/24DC/3X10/1X30 (2866675): Three-input redundancy module, 24 VDC, 3×10 A inputs, 1×30 A output for triple-redundant architectures.

Quality Control for the TRIO-DIODE Range

TRIO-DIODE modules are passive power components with no firmware or programmable logic, but their internal Schottky diode assemblies and bus bar connections require specific validation procedures before deployment in safety-instrumented systems. DriveKNMS applies the following test protocol to all TRIO-DIODE units processed through its facility:

Forward Voltage Drop Test: Each input channel is loaded to rated current (10 A or 20 A) and forward voltage drop is measured. Acceptable threshold: ≤0.6 V per channel at rated load, consistent with Schottky diode specification.
Reverse Leakage Current Test: Reverse bias is applied to each diode channel to verify isolation integrity. Leakage current must remain below 1 mA at rated reverse voltage.
Thermal Imaging: Units are operated at 100% rated load for 30 minutes. Infrared thermal scan identifies hot spots indicating degraded diode junctions or compromised internal connections.
Insulation Resistance Test: 500 VDC megohmmeter test between input terminals and chassis ground. Minimum acceptable: 100 MΩ.
DIN Rail Clip Integrity: Mechanical retention force of DIN rail mounting clip is verified to prevent vibration-induced displacement in mobile or high-vibration installations.
Terminal Torque Verification: Screw-terminal variants are checked for correct torque (per Phoenix Contact specification) to ensure low-resistance connections under thermal cycling.
