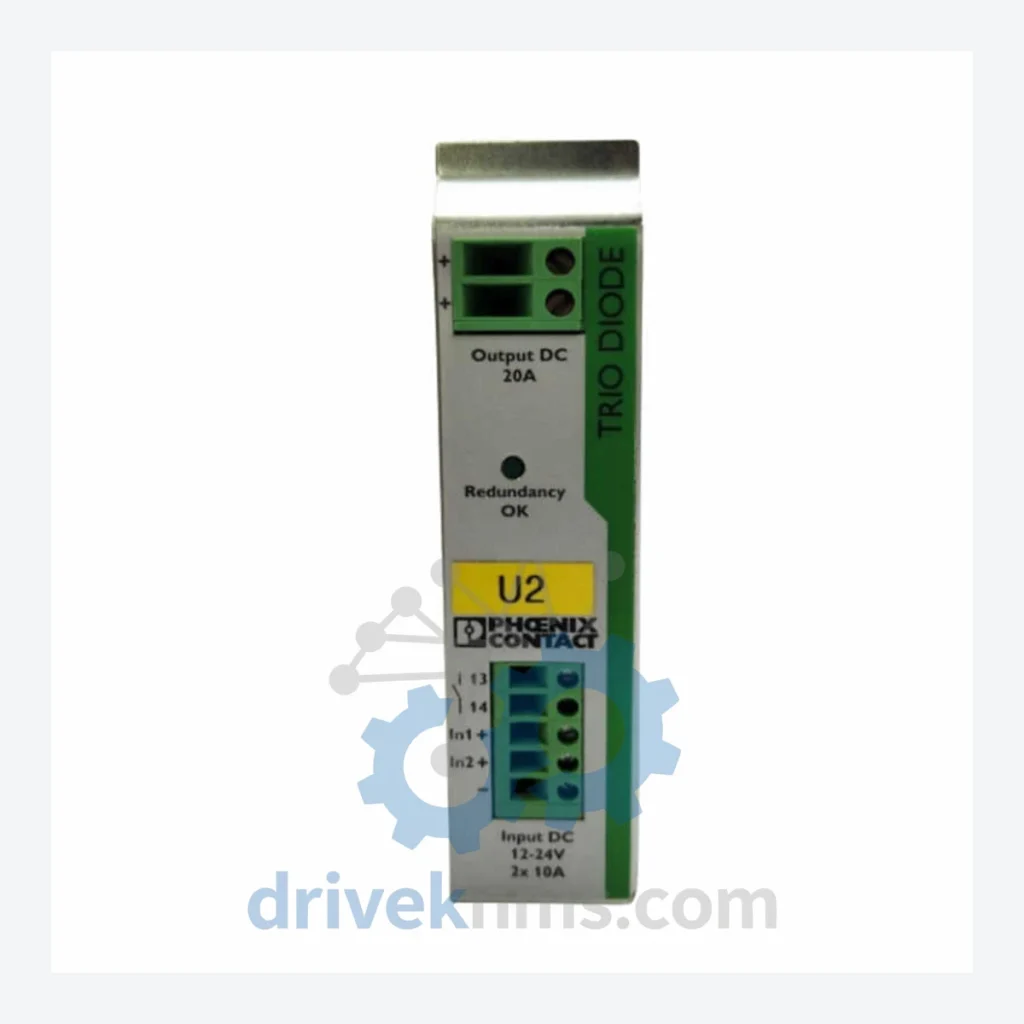

Phoenix Contact TRIO-DIODE/12-24DC/2X10/1X20 2866514

Technical Dossier

Product Details And Specifications

Phoenix Contact TRIO-DIODE Series: Comprehensive Module Range and Technical Overview

The Phoenix Contact TRIO-DIODE series is a line of redundancy modules engineered for 12 VDC and 24 VDC industrial power distribution systems. These modules are deployed in safety-critical environments including chemical processing plants, nuclear facilities, offshore platforms, and petroleum refineries where uninterrupted DC bus availability is a non-negotiable operational requirement. The TRIO-DIODE architecture enables parallel connection of two power supply outputs onto a single load bus, eliminating single-point-of-failure risk in the DC supply chain. The series is fully compatible with the Phoenix Contact TRIO-POWER and QUINT-POWER supply families, making it a standard component in IEC 61511 and IEC 62061 compliant safety instrumented systems (SIS) worldwide.

The Evolution of TRIO-DIODE Architecture

The TRIO-DIODE series was introduced as part of Phoenix Contact's TRIO power supply ecosystem, designed to address the growing demand for redundant 24 VDC rail power in DIN-rail mounted control cabinets. Early iterations of the series used discrete Schottky diode assemblies with passive heat dissipation. Subsequent generations introduced integrated thermal management, higher current ratings, and dual-channel configurations to support both 10 A and 20 A output branches on a single module — as seen in the TRIO-DIODE/12-24DC/2X10/1X20 (2866514).

As industrial automation migrated toward IEC 61508 SIL-rated architectures, the TRIO-DIODE series was validated for use in redundant power supply topologies within PLC and DCS cabinets. The series remains in active production and is considered a mature, stable platform. Long-term availability is supported through Phoenix Contact's extended product lifecycle program, and DriveKNMS maintains buffer stock of both current and legacy variants for MRO (Maintenance, Repair & Operations) customers.

Key compatibility milestones: compatible with TRIO-PS/1AC/24DC/5 (2903148), TRIO-PS/1AC/24DC/10 (2903151), TRIO-PS/1AC/24DC/16 (2903164), and QUINT-PS series. DIN EN 50155 and UL 508 listed variants are available within the broader TRIO ecosystem.

TRIO-DIODE Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified TRIO-DIODE series product range. Each entry is classified by function and rated output configuration.

Redundancy Modules — Dual Input / Single Output (Decoupling Diode Modules)

• TRIO-DIODE/12-24DC/2X10/1X20 (2866514): Dual 10 A input, single 20 A output; 12–24 VDC; DIN-rail mount redundancy module — the primary SKU of this listing.
• TRIO-DIODE/12-24DC/2X5/1X10 (2866527): Dual 5 A input, single 10 A output; 12–24 VDC; compact form factor for lower-current redundant rails.
• TRIO-DIODE/24DC/2X10/1X20 (2866530): 24 VDC fixed input variant; dual 10 A input, single 20 A output; optimized for 24 VDC-only installations.
• TRIO-DIODE/24DC/2X5/1X10 (2866543): 24 VDC fixed; dual 5 A input, single 10 A output; space-saving redundancy for 24 VDC panel buses.
• TRIO-DIODE/12DC/2X10/1X20 (2866556): 12 VDC fixed input; dual 10 A input, single 20 A output; used in 12 VDC telecom and transport control panels.
• TRIO-DIODE/12DC/2X5/1X10 (2866569): 12 VDC fixed; dual 5 A input, single 10 A output; low-current 12 VDC redundancy module.
• TRIO-DIODE/24DC/2X20/1X40 (2866572): High-current variant; dual 20 A input, single 40 A output; 24 VDC; for high-load DCS power buses.
• TRIO-DIODE/12-24DC/2X20/1X40 (2866585): Wide-range input; dual 20 A input, single 40 A output; 12–24 VDC; heavy-duty redundancy for large control panels.

Monitoring & Signaling Accessories (TRIO-DIODE Compatible)

• TRIO-DIODE/12-24DC/2X10/1X20/SI (2866598): Variant with integrated signaling contact; provides relay output for redundancy fault indication to SCADA/DCS.
• TRIO-DIODE/24DC/2X10/1X20/SI (2866601): 24 VDC fixed with signaling contact; fault relay output for alarm integration.
• TRIO-DIODE/12-24DC/2X5/1X10/SI (2866614): Compact variant with signaling; dual 5 A input, 10 A output, fault relay output.

Associated TRIO-POWER Supply Modules (System Context)

• TRIO-PS/1AC/24DC/5 (2903148): 5 A / 24 VDC TRIO power supply; standard upstream source for TRIO-DIODE redundancy configurations.
• TRIO-PS/1AC/24DC/10 (2903151): 10 A / 24 VDC; primary supply module paired with TRIO-DIODE/2X10 variants.
• TRIO-PS/1AC/24DC/16 (2903164): 16 A / 24 VDC; used with TRIO-DIODE/2X20 high-current configurations.
• TRIO-PS/1AC/24DC/20 (2903177): 20 A / 24 VDC; maximum-rated TRIO supply for 40 A combined bus output via TRIO-DIODE/2X20/1X40.

Sourcing Hard-to-Find & Obsolete TRIO-DIODE Parts

DriveKNMS maintains a dedicated inventory of Phoenix Contact TRIO-DIODE modules, including variants that have been discontinued or placed on extended lead time by the OEM. For facilities operating legacy DCS or PLC cabinets where the TRIO-DIODE series was installed during original commissioning, replacing individual modules without a full panel redesign is the standard MRO approach.

DriveKNMS sources TRIO-DIODE units through authorized distribution channels and verified secondary market suppliers. All units are inspected prior to dispatch. For end-of-life (EOL) variants where new stock is unavailable, DriveKNMS can provide tested-used or refurbished units with full traceability documentation. Customers in the petrochemical, power generation, and water treatment sectors rely on this service to maintain operational continuity without capital expenditure on panel redesign.

Quality Control for the TRIO-DIODE Range

Each TRIO-DIODE module processed by DriveKNMS undergoes a structured inspection and functional test protocol specific to diode redundancy modules:

• Visual Inspection: Housing integrity, terminal block condition, DIN-rail clip function, and label legibility are verified against OEM reference standards.
• Diode Forward Voltage Test: Each internal Schottky diode branch is tested for correct forward voltage drop (typically 0.3–0.5 V at rated current) to confirm no open or shorted diode junctions.
• Load Sharing Verification: Both input channels are energized simultaneously at rated current to confirm balanced current sharing and correct output bus voltage within ±1% of nominal.
• Thermal Stress Test: Modules are operated at 80% of rated output current for a minimum of 30 minutes. Thermal imaging confirms no abnormal hotspots on the diode assembly or PCB.
• Signaling Contact Test (SI variants): For modules with integrated fault relay, the signaling contact is verified for correct open/close state under normal and fault-simulated conditions.
• Insulation Resistance Test: 500 VDC megohm test between input terminals and chassis ground to confirm isolation integrity.

Test records are retained for each unit and are available upon request for customers with IEC 61511 documentation requirements.
