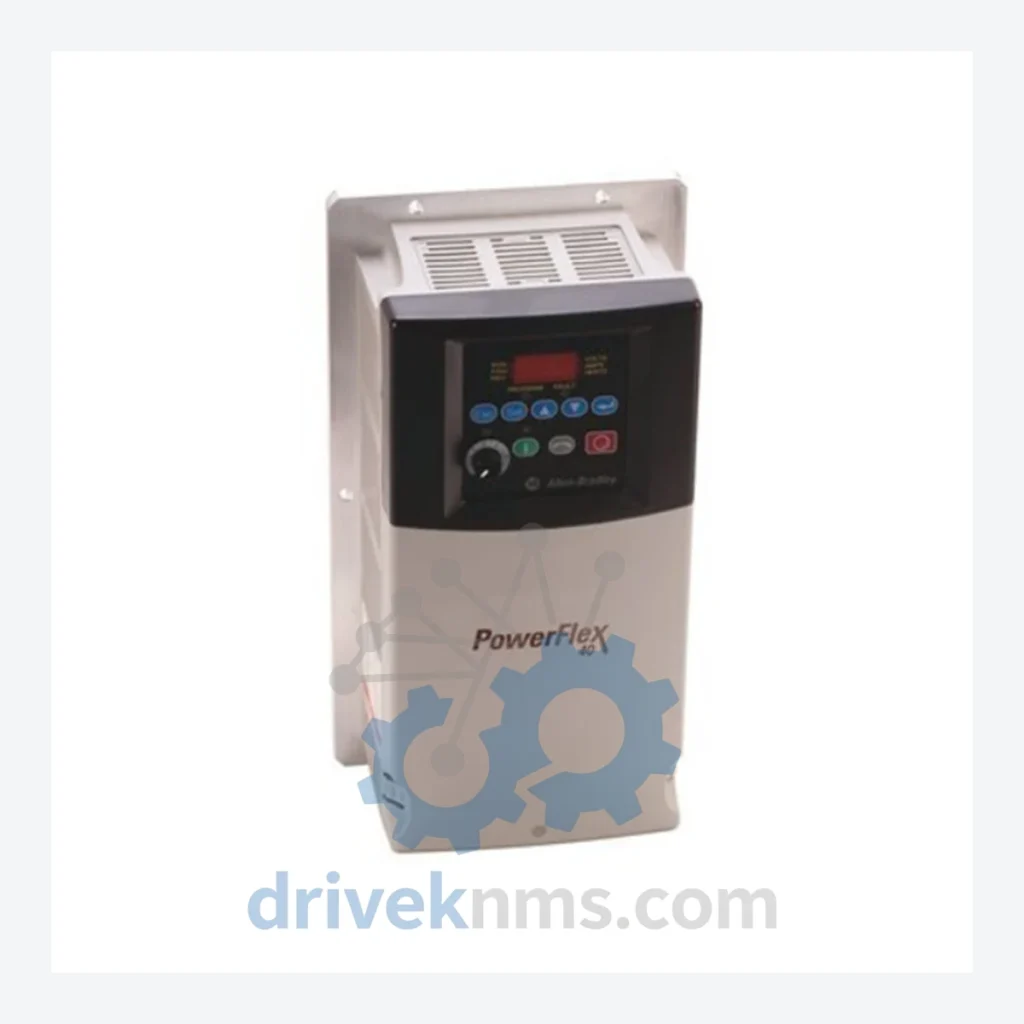

Allen-Bradley PowerFlex 40 Modules: 22B-D017N104 & Full Series

Technical Dossier

Product Details And Specifications

Allen-Bradley PowerFlex 40 Series Technical Notes

The Allen-Bradley PowerFlex 40 series (catalog prefix: 22B) is a compact, general-purpose AC variable frequency drive (VFD) manufactured by Rockwell Automation. It is rated for 0.4 kW to 22 kW (0.5–30 HP) output power and operates across a supply voltage range of 100–600V AC. The PowerFlex 40 is one of the most widely deployed drive families in global heavy industry, with documented installations in petrochemical refineries, chemical processing plants, water treatment facilities, pulp and paper mills, and nuclear auxiliary systems. Its DIN-rail-mountable form factor, integrated EMC filter options, and native DeviceNet/EtherNet/IP communication support made it the default drive selection for machine builders and system integrators throughout the 2000s and 2010s. The series remains in active use across thousands of installed base sites globally, and long-term spare parts availability is a primary operational concern for maintenance engineers.

PowerFlex 40 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked models within the Allen-Bradley PowerFlex 40 (22B) series, organized by voltage class and output current rating:

100–120V AC Single-Phase Input

• 22B-A8P0N104: 0.4 kW / 0.5 HP, 8.0A output, 120V 1Ø input, Frame A, no filter
• 22B-A2P5N104: 0.75 kW / 1 HP, 2.5A output, 120V 1Ø input, Frame A, no filter

200–240V AC Single-Phase Input

• 22B-B2P5N104: 0.4 kW / 0.5 HP, 2.5A output, 240V 1Ø input, Frame A, no filter
• 22B-B5P0N104: 1.1 kW / 1.5 HP, 5.0A output, 240V 1Ø input, Frame B, no filter
• 22B-B8P0N104: 2.2 kW / 3 HP, 8.0A output, 240V 1Ø input, Frame B, no filter

200–240V AC Three-Phase Input

• 22B-C2P5N104: 0.4 kW / 0.5 HP, 2.5A output, 240V 3Ø input, Frame A, no filter
• 22B-C5P0N104: 1.1 kW / 1.5 HP, 5.0A output, 240V 3Ø input, Frame B, no filter
• 22B-C9P6N104: 2.2 kW / 3 HP, 9.6A output, 240V 3Ø input, Frame B, no filter
• 22B-C012N104: 3.7 kW / 5 HP, 12A output, 240V 3Ø input, Frame C, no filter

380–480V AC Three-Phase Input

• 22B-D2P3N104: 0.75 kW / 1 HP, 2.3A output, 480V 3Ø input, Frame A, no filter
• 22B-D4P0N104: 1.5 kW / 2 HP, 4.0A output, 480V 3Ø input, Frame A, no filter
• 22B-D6P0N104: 2.2 kW / 3 HP, 6.0A output, 480V 3Ø input, Frame B, no filter
• 22B-D010N104: 4.0 kW / 5 HP, 10A output, 480V 3Ø input, Frame B, no filter
• 22B-D013N104: 5.5 kW / 7.5 HP, 13A output, 480V 3Ø input, Frame C, no filter
• 22B-D017N104: 7.5 kW / 10 HP, 17.5A output, 480V 3Ø input, Frame D, no filter — the primary SKU for this listing
• 22B-D024N104: 11 kW / 15 HP, 24A output, 480V 3Ø input, Frame D, no filter
• 22B-D030N104: 15 kW / 20 HP, 30A output, 480V 3Ø input, Frame E, no filter
• 22B-D043N104: 22 kW / 30 HP, 43A output, 480V 3Ø input, Frame E, no filter

500–600V AC Three-Phase Input

• 22B-E1P7N104: 0.75 kW / 1 HP, 1.7A output, 600V 3Ø input, Frame A, no filter
• 22B-E3P0N104: 1.5 kW / 2 HP, 3.0A output, 600V 3Ø input, Frame A, no filter
