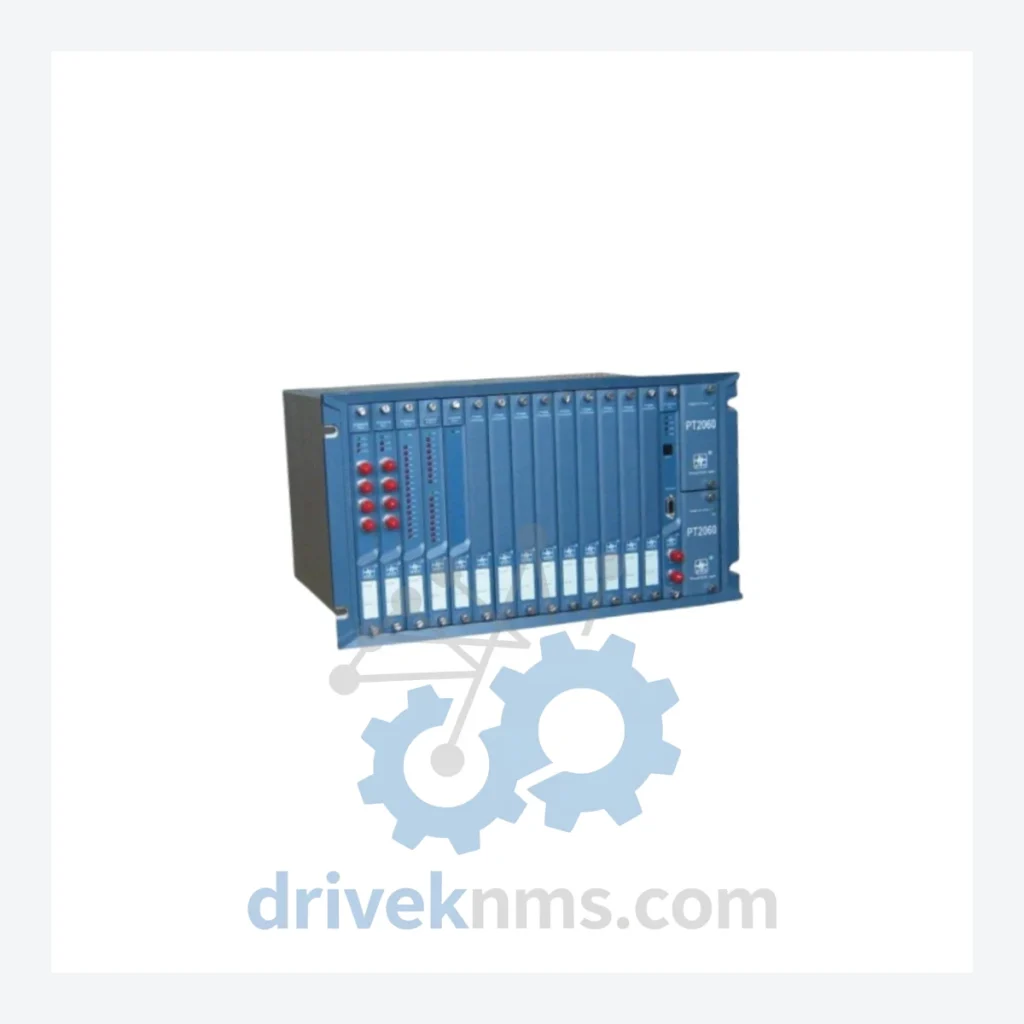

Provib Tech PT2060 Modules PT2060/90-A1-B1

Technical Dossier

Product Details And Specifications

Provib Tech PT2060 Series Technical Notes

The Provib Tech PT2060 series is a modular vibration monitoring platform deployed across critical heavy-industry infrastructure worldwide, including petrochemical refineries, nuclear power stations, offshore platforms, and large-scale rotating machinery installations. The series provides continuous, real-time acquisition of vibration, speed, and position signals from rotating equipment such as turbines, compressors, pumps, and fans. Its architecture is compliant with API 670 (Machinery Protection Systems) standards, making it a reference-grade solution for OEM integrators and plant maintenance engineers operating under stringent safety and uptime requirements.

The PT2060 platform is characterized by a rack-based, backplane-coupled design that allows mixed-function module population within a single chassis. This modularity enables site-specific configuration without hardware redesign, a key factor in its adoption across multi-unit plant environments where standardization of spare parts inventory is operationally critical.

The Evolution of PT2060 Architecture

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

PT2060 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented PT2060 series module range. Each entry is classified by functional category and includes a concise technical descriptor.

Vibration Monitoring Modules (VM)

• PT2060/90-A1-B1: 90-channel vibration monitor, revision A1-B1 backplane
• PT2060/01: Single-channel proximity probe monitor, 4–20 mA output
• PT2060/02: Dual-channel radial vibration monitor, relay trip output
• PT2060/04: Quad-channel vibration acquisition module, DIN rail mount
• PT2060/08: 8-channel vibration I/O expansion module, rack-mount
• PT2060/16: 16-channel vibration signal conditioner, analog output

Speed & Keyphasor Modules (SP)

• PT2060/SP-01: Single-channel speed monitor, pulse input, 4–20 mA output
• PT2060/SP-02: Dual-channel tachometer module, TTL/open-collector input
• PT2060/KP-01: Keyphasor signal conditioner, single-channel, BNC output

Position & Thrust Modules (PX)

• PT2060/PX-01: Axial position monitor, eddy-current probe compatible
• PT2060/PX-02: Differential expansion monitor, dual-probe input
• PT2060/PX-04: 4-channel position acquisition module, 4–20 mA output

Communication & Interface Modules (CM)

• PT2060/CM-485: RS-485 Modbus RTU communication adapter, rack-mount
• PT2060/CM-ETH: Ethernet TCP/IP gateway module, Modbus TCP
• PT2060/CM-HART: HART protocol interface module, multi-drop capable

Power Supply Modules (PS)

• PT2060/PS-24: 24 VDC rack power supply, redundant-capable, 10 A output
• PT2060/PS-48: 48 VDC power supply module, high-density rack configuration

Quality Control for the PT2060 Range

PT2060 modules incorporate multi-layer backplane communication buses and precision analog signal conditioning circuits that require specialized test procedures beyond standard power-on verification. DriveKNMS applies the following quality control protocol to all PT2060 units prior to shipment:

• Backplane continuity and impedance verification across all connector pins
• Signal conditioning accuracy test: input simulation across full measurement range (0–25 mm/s, 0–200 µm pk-pk) with output deviation check against factory calibration data
• Relay output functional test: trip setpoint simulation and contact closure verification
• Communication interface test: Modbus RTU/TCP register map validation against PT2060 protocol documentation
• Thermal cycling: 48-hour burn-in at 55°C to screen latent component failures
• Visual inspection: PCB, connector, and housing condition assessment with photographic documentation

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.
