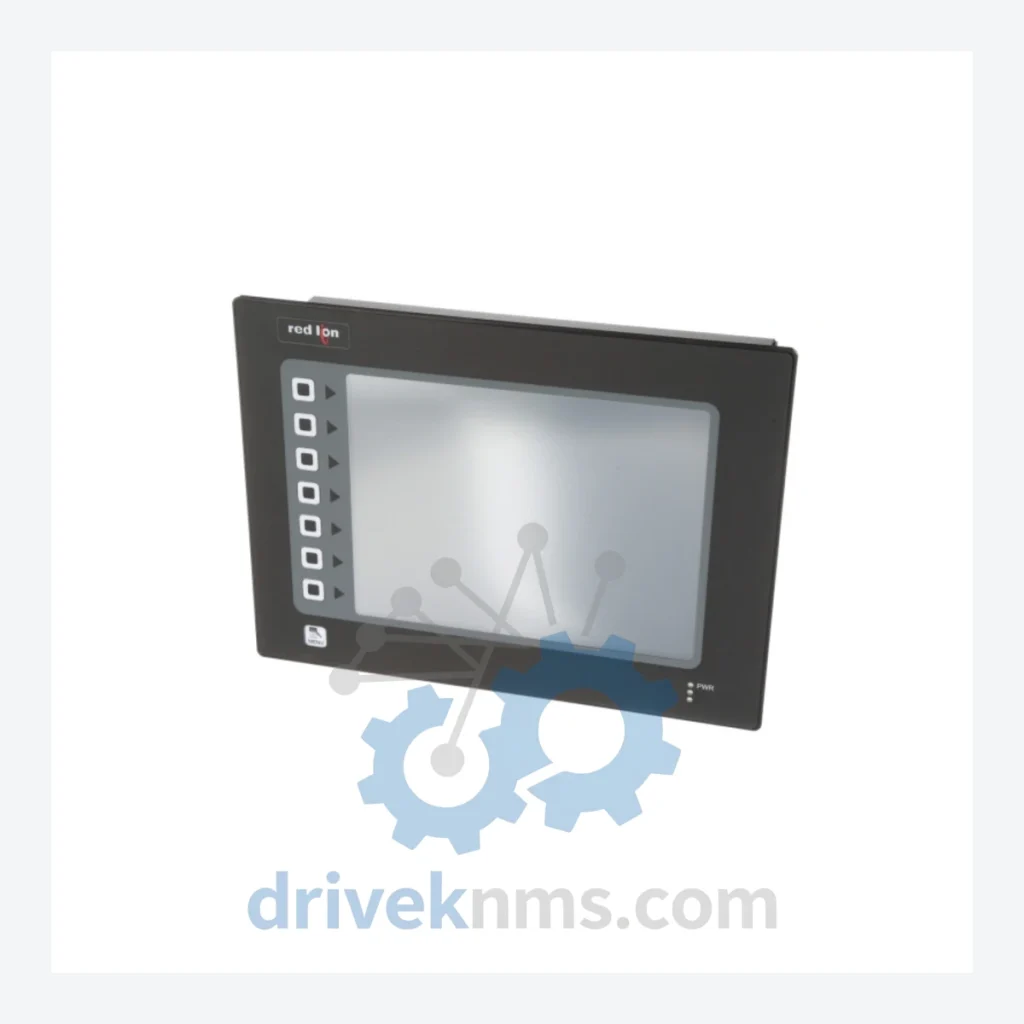

Red Lion G3 Series Operator Interface Modules G310C000

Name: Red Lion G3 Series Operator Interface Modules G310C000
Brand: Red Lion Controls

Model: G310C000

Brand Red Lion Controls

Series G310C000

Model G310C000

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

Red Lion G3 Series Technical Notes

The Red Lion G3 Series is a line of compact operator interface terminals (OITs) and human-machine interface (HMI) panels engineered for deployment in demanding industrial environments. Installed across chemical processing plants, oil refineries, water treatment facilities, and discrete manufacturing lines globally, the G3 Series occupies a well-established position in the mid-range HMI market. Its combination of serial and Ethernet communication support, onboard data logging, and compatibility with over 300 industrial protocols via Red Lion's Data Station technology made it a standard specification item for system integrators throughout the 2000s and 2010s. Units in this series continue to operate in legacy installations where replacement with a modern platform is not operationally or economically viable.

G3 Series Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented G3 Series product range. Units are classified by display type, input method, and communication configuration.

Operator Interface Terminals — Monochrome / Keypad Input

G306A000: 3.8-in STN mono LCD, keypad, RS-232/485, 128×64 px resolution
G306C000: 3.8-in STN mono LCD, keypad, dual serial ports, expanded tag capacity
G306K000: 3.8-in STN mono LCD, keypad, Ethernet 10/100, RS-485
G306M000: 3.8-in STN mono LCD, keypad, dual Ethernet + serial, data logging
G310A000: 5.7-in STN mono LCD, keypad, RS-232/485, standard I/O configuration
G310C000: 5.7-in STN mono LCD, keypad, dual serial ports, 320×240 px, 512 KB memory
G310K000: 5.7-in STN mono LCD, keypad, Ethernet 10/100 + RS-485 dual port
G310M000: 5.7-in STN mono LCD, keypad, dual Ethernet + serial, onboard data logging

Operator Interface Terminals — Color TFT / Touchscreen

G315C000: 5.7-in color TFT, touchscreen, RS-232/485, 320×240 px
G315K000: 5.7-in color TFT, touchscreen, Ethernet 10/100 + RS-485
G315M000: 5.7-in color TFT, touchscreen, dual Ethernet + serial, data logging enabled
G321C000: 10.4-in color TFT, touchscreen, RS-232/485, 800×600 px resolution
G321K000: 10.4-in color TFT, touchscreen, Ethernet 10/100 + RS-485
G321M000: 10.4-in color TFT, touchscreen, dual Ethernet + serial, SD card logging
G324K000: 12.1-in color TFT, touchscreen, Ethernet 10/100, high-brightness panel option
G324M000: 12.1-in color TFT, touchscreen, dual Ethernet + serial, extended memory
G308C000: 8.0-in color TFT, touchscreen, RS-232/485, mid-range display variant
G308K000: 8.0-in color TFT, touchscreen, Ethernet 10/100 + RS-485

Quality Control for the G3 Series Range

G3 Series units undergo a structured inspection and functional verification process prior to dispatch. Each unit is powered on and tested against its factory display resolution and backlight output specification. Serial and Ethernet communication ports are verified using loopback and live protocol handshake tests. Touchscreen linearity and keypad actuation force are checked against Red Lion's published mechanical tolerances. Units with cracked display glass, failed backlights, or corrupted onboard firmware are quarantined and not offered for sale. Where applicable, Crimson configuration software is used to confirm that the unit's internal tag database and communication driver stack are intact and responsive. Refurbished units are clearly identified as such, with condition grade disclosed at point of sale.
