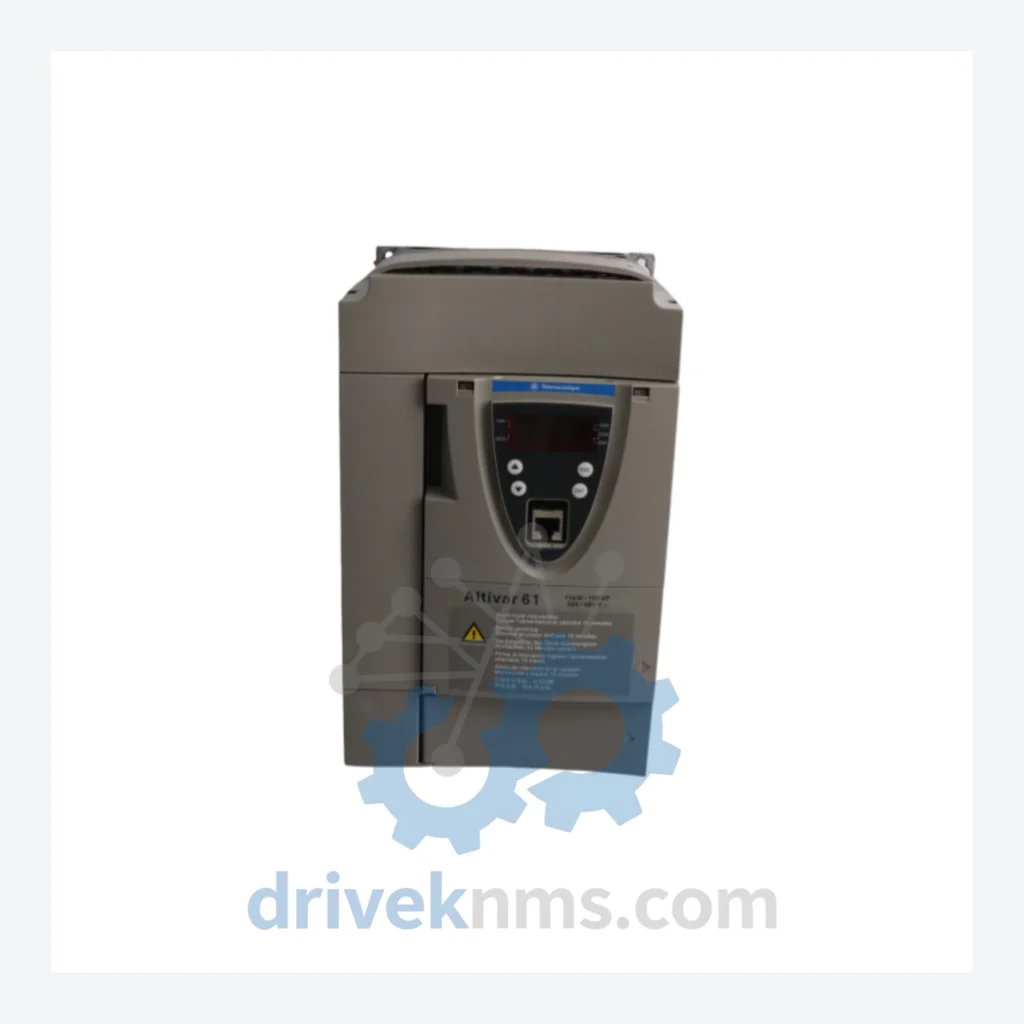

Schneider ATV61HU75N4 / ATV71HU75N4Z Variable Speed Drive – Obsolete Altivar Spare Part

When a variable speed drive fails on a production line built around the Schneider Altivar 61 or Altivar 71 platform, the consequences are not limited to a single machine going offline. In most facilities, these drives are embedded within coordinated motion control architectures — conveyors, pumps, compressors, HVAC systems, and multi-axis handling equipment — where a single failed unit can halt an entire production cell. Sourcing a direct replacement from the original manufacturer is no longer possible: both the ATV61 and ATV71 series have reached end-of-life status. The alternative — a full system migration to a current-generation drive platform — typically involves engineering re-parameterization, PLC logic revision, motor cable re-routing, and commissioning downtime that collectively cost facilities hundreds of thousands to several million dollars. DriveKNMS holds verified physical stock of the ATV61HU75N4 and ATV71HU75N4Z. This is not a catalog listing. This is a real unit, available now.

Technical Specifications

Note: Electrical parameters listed above are based on published Schneider Electric documentation. Parameters not confirmed by physical inspection are not listed. Verify all specifications against your site's engineering drawings before installation.

Solving the Discontinued Hardware Crisis

The Altivar 61 and Altivar 71 families were workhorses of industrial automation for over two decades. They are still operating — right now — inside water treatment plants, automotive body shops, food processing lines, and pharmaceutical HVAC systems across every major industrial region. Schneider Electric officially discontinued both series, and the authorized distribution channel has been dry for years.

The problem facing plant managers is structural: the control system was designed around these specific drives. The motor parameters, ramp profiles, fault logic, and communication addresses are all tuned to the ATV61/ATV71 behavior. Substituting a current-generation drive — even from the same manufacturer — requires a qualified drive engineer to re-commission the unit, re-enter all parameters, and validate the process response. In a regulated environment such as pharmaceuticals or food production, this triggers a formal change control process. The total cost of that exercise, including lost production, engineering fees, and validation documentation, routinely exceeds the cost of maintaining a spare parts inventory for five to ten years.

Facilities that have extended their Altivar 61/71 infrastructure by maintaining a strategic spare parts buffer have consistently deferred capital expenditure on system replacement by five to ten years. The arithmetic is straightforward: one spare drive at current market price versus a six-figure system migration. The decision is not technical — it is financial.

How to extend your Altivar 61/71 system life by 5–10 years:

• Identify your critical single points of failure. Map every ATV61/ATV71 unit in your facility by power rating and communication option card. Drives controlling processes with no bypass or redundancy are your highest-risk assets.
• Establish a minimum spare holding. For drives controlling critical processes, a minimum of one cold spare per power rating is standard practice. For high-cycle applications (conveyors, compressors), two spares per rating is defensible.
• Document current parameter sets. Export and archive the parameter file from every operating drive using SoMove or the Altivar DTM. A drive failure without a saved parameter file doubles your recovery time.
• Inspect operating units annually. Electrolytic capacitor degradation is the primary failure mode in drives that have been in service for more than eight years. Capacitor replacement on a functioning drive costs a fraction of a full unit replacement.
• Negotiate long-lead procurement now. Available stock of ATV61/ATV71 units in the secondary market is finite and declining. Units sourced today will cost less than units sourced after your next unplanned failure.

Condition & Reliability Assurance

DriveKNMS applies a five-step inspection protocol to all obsolete drive units before shipment. This process is designed specifically for the failure modes common to drives that have been in storage or light service for extended periods.

• Step 1 – Visual and mechanical inspection: Enclosure integrity, terminal block condition, fan blade and bearing check, connector pin corrosion assessment.
• Step 2 – Electrolytic capacitor evaluation: DC bus capacitors are the component most susceptible to degradation in stored drives. Units showing capacitor bulge, electrolyte leakage, or elevated ESR are quarantined.
• Step 3 – Firmware version verification: The installed firmware version is recorded and cross-referenced against known compatibility requirements for the ATV61/ATV71 communication option cards in common use.
• Step 4 – Power-on functional test: The unit is energized under controlled conditions. Fault history is read and cleared. Basic V/f output is verified across the operating frequency range.
• Step 5 – Final documentation: A condition report is issued with each unit, recording inspection findings, test results, and firmware version. This document travels with the unit.

Units that do not pass all five steps are not offered for sale.

Key Features for System Maintenance

• Drop-in replacement: The ATV61HU75N4 and ATV71HU75N4Z share the same mounting footprint, terminal layout, and parameter structure as the units they replace. No mechanical modification to the cabinet is required.
• No re-programming required: If a parameter backup exists from the failed unit, parameters can be restored via SoMove in under ten minutes. The replacement drive accepts the same parameter file format.
• Communication compatibility: Native Modbus RTU is retained. Profibus DP, CANopen, and DeviceNet compatibility is preserved through the original option card slots — no gateway or protocol converter is needed.
• Avoids engineering reconstruction costs: A direct replacement eliminates the need for drive re-sizing calculations, cable de-rating reviews, or PLC I/O mapping changes that a platform migration would require.
• Immediate dispatch: Stock on hand. No lead time associated with manufacturing or distribution allocation.

FAQ

What warranty applies to an obsolete drive unit?
DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Units that fail within the warranty period are replaced or refunded. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the drive's rated specification.

How do I know the unit is genuine and not counterfeit?
All units supplied by DriveKNMS are sourced through verified industrial channels. The nameplate, serial number format, and internal construction are consistent with genuine Schneider Electric manufacture. We do not supply units of unknown origin or units that have been re-labeled.

New or refurbished?
Stock condition varies. Each listing specifies whether the unit is new-in-box, unused surplus, or inspected refurbished. All refurbished units have passed the five-step QA process described above. Condition is disclosed before order confirmation.

Should I buy more than one unit?
If the ATV61HU75N4 or ATV71HU75N4Z is installed in a process-critical application with no bypass, purchasing a minimum of one additional spare at the time of your first order is advisable. Available stock in the secondary market for discontinued drives does not replenish. The unit you do not buy today may not be available when you need it.

Can you supply other Altivar 61 or Altivar 71 power ratings?
Yes. DriveKNMS maintains stock across multiple power ratings in the ATV61 and ATV71 series. Contact us with your specific part number for availability.
