Schneider Electric Modicon Quantum Series: Comprehensive Module Range and Technical Overview

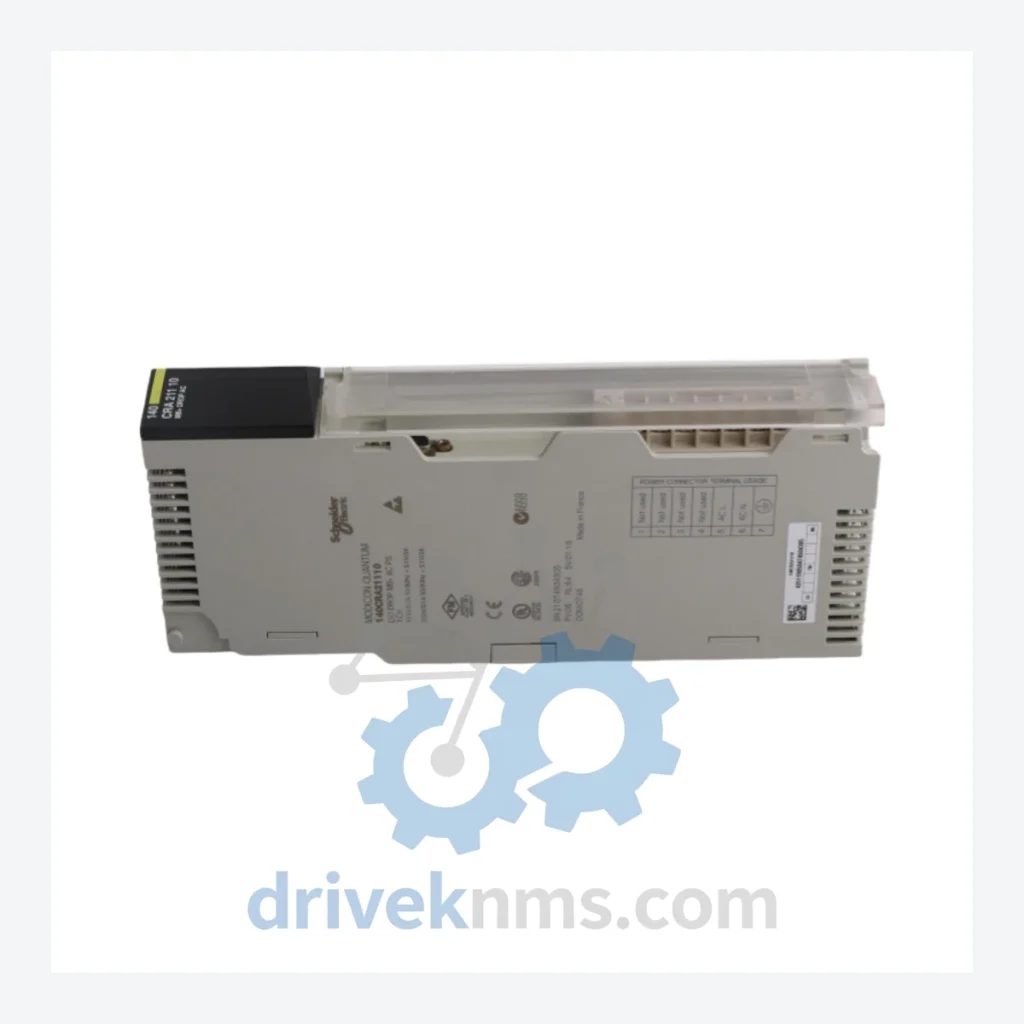

The Schneider Electric Modicon Quantum platform is one of the most widely deployed large-scale PLC/DCS architectures in global heavy industry. Installed across petrochemical complexes, nuclear power stations, offshore oil platforms, and continuous-process refineries, the Quantum rack-based system has served as the backbone of safety-critical and high-availability automation since its commercial introduction in the early 1990s. Its modular backplane architecture supports hot-standby redundancy, remote I/O expansion via RIO drop cables, and deterministic Modbus Plus and Ethernet communication — characteristics that made it the reference platform for process industries requiring 99.999% uptime. The 140CRA21110 is a Remote I/O Adapter module within this ecosystem, enabling a Quantum rack to function as a remote drop on a Modbus Plus RIO network, extending the control architecture across large plant footprints without additional CPUs.

The Evolution of Modicon Quantum Architecture

The Quantum platform succeeded the Modicon 984 series and was engineered to address the scalability limitations of its predecessor. The original architecture (circa 1993–1998) centered on Modbus Plus as the primary inter-rack communication bus, with CPUs such as the 140CPU11302 and 140CPU43412 providing deterministic scan cycles. The introduction of Ethernet-capable CPUs (140CPU65150, 140CPU65160) in the early 2000s marked the first major architectural shift, enabling integration with SCADA systems over standard TCP/IP infrastructure without protocol converters.

The second evolution addressed redundancy: the Hot Standby CPU pairs (140CPU67160 / 140CPU67261) introduced bumpless transfer between primary and standby processors, a requirement for nuclear and refinery applications. Communication adapter modules evolved in parallel — the RIO adapter family (140CRA21110, 140CRA93100) allowed remote racks to participate in the Modbus Plus RIO network, while the 140NOE77101 and 140NOE77111 Ethernet modules brought web-based diagnostics and Modbus TCP to field-level racks.

As of 2026, the Modicon Quantum series is in its end-of-commercialization phase. Schneider Electric has transitioned its strategic platform to the Modicon M580 (ePAC), which offers native Ethernet backplane communication and IEC 61131-3 programming continuity. However, the installed base of Quantum systems in long-lifecycle industries (nuclear, refining, water treatment) remains substantial, and replacement parts continue to be sourced through specialist distributors for lifecycle extension programs spanning 10–20 additional years.

Modicon Quantum Full Catalog & Functionalities (SKU List)

Remote I/O & Communication Adapters

• 140CRA21110: Remote I/O adapter, Modbus Plus RIO drop, single-slot
• 140CRA93100: Remote I/O adapter, Modbus Plus, enhanced diagnostics
• 140NOE77101: Ethernet TCP/IP network module, 10/100 Mbps, web server
• 140NOE77111: Ethernet TCP/IP module with enhanced Modbus TCP throughput
• 140NOM21200: Modbus Plus network option module, peer-to-peer messaging

CPU Modules

• 140CPU11302: Entry-level CPU, 16K words memory, Modbus Plus port
• 140CPU43412: Mid-range CPU, 64K words, dual Modbus Plus ports
• 140CPU65150: High-performance CPU, Ethernet + Modbus Plus, 7MB memory
• 140CPU65160: CPU with integrated Ethernet, enhanced instruction set
• 140CPU67160: Hot Standby primary CPU, Ethernet, 7MB memory
• 140CPU67261: Hot Standby CPU, dual Ethernet, extended memory

Digital Input / Output Modules

• 140DAI54000: 32-channel 24VDC digital input module, sink type
• 140DAO84000: 32-channel 24VDC digital output module, source type
• 140DDI35300: 16-channel 125VDC digital input, isolated
• 140DDO35300: 16-channel 125VDC digital output, relay contact

Analog Input / Output Modules

• 140ACI04000: 4-channel analog current input, 4–20mA, 12-bit resolution
• 140ACO02000: 2-channel analog current output, 4–20mA
• 140AVI03000: 4-channel analog voltage input, ±10V, 12-bit
• 140AVO02000: 2-channel analog voltage output, ±10V

Power Supply Modules

• 140CPS11420: 115/230VAC power supply, 20A @ 5VDC backplane output
• 140CPS21400: 24VDC input power supply, 20A backplane, redundancy-ready
• 140CPS41400: Redundant power supply module, hot-swap capable

Sourcing Hard-to-Find & Obsolete Modicon Quantum Parts

DriveKNMS maintains a dedicated inventory program for Modicon Quantum modules that have reached end-of-sale status with Schneider Electric. The 140CRA21110 and the broader CRA adapter family are among the most frequently requested obsolete modules, as RIO-based remote drop architectures remain in service at facilities where a full migration to M580 is not economically or operationally feasible within the current maintenance cycle.

DriveKNMS sources Quantum modules through decommissioned plant buybacks, authorized surplus channels, and factory-refurbishment programs. Each unit is catalogued with its firmware revision, backplane connector condition, and communication port integrity status. For CPUs, SRAM battery condition and memory module compatibility are verified prior to dispatch. Lead times for common modules such as the 140CPU65150 and 140NOE77101 are typically 3–7 business days from confirmed order. For low-volume obsolete modules, DriveKNMS operates a global sourcing network with response times of 5–15 business days.

Lifecycle extension contracts are available for facilities requiring guaranteed supply of specific Quantum module families over a 12–60 month horizon, with reserved stock allocation and priority dispatch terms.

Quality Control for the Modicon Quantum Range

Modicon Quantum modules present specific test challenges due to their backplane bus architecture and the interdependency between CPU, power supply, and I/O modules during initialization. DriveKNMS applies a structured test protocol for each module category:

• CPU Modules: Powered in a reference Quantum rack with known-good power supply and I/O. Boot sequence verified, firmware version confirmed, Modbus Plus and Ethernet port communication tested with protocol analyzer. Memory integrity checked via full read/write cycle.
• RIO Adapter Modules (140CRA21110 series): Installed in a remote drop rack and connected to a Modbus Plus RIO network. Drop address configuration verified, token-passing participation confirmed, I/O data exchange validated against a reference CPU scan.
• Analog I/O Modules: Calibrated against NIST-traceable reference signals. Input accuracy verified at 0%, 25%, 50%, 75%, and 100% of rated range. Output linearity tested across full span.
• Power Supply Modules: Load-tested at 50% and 100% rated output. Ripple and regulation measured. Redundancy switchover tested where applicable.
• Digital I/O Modules: All channels exercised individually. Isolation resistance measured between channel groups and backplane ground.

All tested modules are issued a DriveKNMS inspection report with test date, technician ID, and pass criteria results. Modules that fail any test parameter are quarantined and not returned to inventory.
