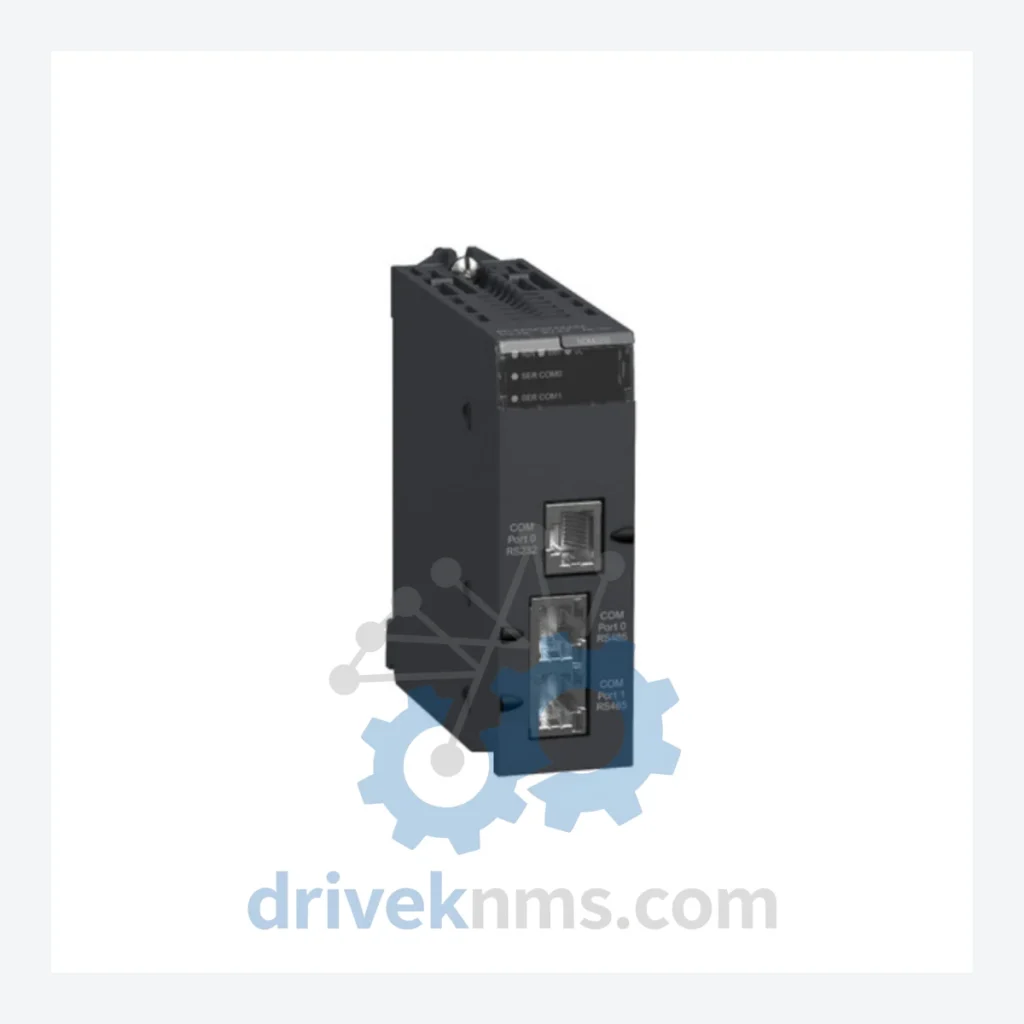

Schneider Electric BMXNOM0200 Communication Module – Obsolete Modicon M340 Spare Part

Technical Dossier

Product Details And Specifications

Schneider Electric BMXNOM0200 Communication Module – Obsolete Modicon M340 Spare Part

When a BMXNOM0200 fails in a live Modicon M340 rack, the consequences extend far beyond a single module replacement. This card is the network backbone of the M340 platform — responsible for Modbus TCP/IP and Ethernet I/P communications between the PLC and upstream SCADA, DCS, or MES systems. Its failure does not merely interrupt one process; it severs the data exchange layer of an entire production cell. For facilities still operating on Modicon M340 infrastructure, the realistic alternative to sourcing a replacement BMXNOM0200 is a full platform migration — a project that routinely costs USD $500,000 to $2,000,000 when engineering, downtime, revalidation, and retraining are factored in. DriveKNMS maintains verified physical stock of the BMXNOM0200 specifically to prevent that outcome.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Modicon M340 platform was widely deployed across process industries, water treatment, building automation, and discrete manufacturing throughout the 2000s and 2010s. The BMXNOM0200 served as the serial communication bridge in thousands of these installations — connecting PLCs to legacy field devices, variable frequency drives, and remote I/O nodes via Modbus RTU.

Schneider Electric has formally discontinued the BMXNOM0200. Replacement units are no longer available through authorized distribution channels. For plant managers operating M340-based systems, this creates a specific and serious operational risk: a single module failure can strand an otherwise functional PLC rack with no direct replacement path.

Migrating away from the M340 platform is not a weekend project. It requires hardware replacement across every rack, software migration from Unity Pro to EcoStruxure Control Expert or an entirely different vendor platform, re-engineering of all serial communication configurations, and full functional acceptance testing. In regulated industries — pharmaceutical, food and beverage, energy — this process also triggers revalidation cycles. The total cost of a forced migration under production pressure is consistently higher than a planned one, and a planned one is already expensive.

The most cost-effective strategy for facilities with 3–10 years of remaining asset life on their M340 systems is to maintain a strategic spare inventory of critical modules including the BMXNOM0200. A single spare unit, properly stored, can defer a multi-million dollar infrastructure decision by years. DriveKNMS sources, inspects, and holds these units precisely for this scenario.

How to extend your Modicon M340 system life by 5–10 years:

• Conduct a module-level criticality audit across all M340 racks. Identify single points of failure — communication modules, power supplies, and CPU cards carry the highest replacement risk.
• Establish a minimum spare holding of one BMXNOM0200 per production line or per facility, depending on your redundancy tolerance.
• Document current firmware versions and Unity Pro project files in a controlled archive. This eliminates re-engineering time when a swap is required.
• Schedule annual visual inspections of installed modules — check for capacitor bulging, connector corrosion, and backplane seating integrity.
• Negotiate long-lead procurement of critical spares now, while market supply exists. Waiting until failure guarantees premium pricing and extended downtime.

Condition & Reliability Assurance

Sourcing discontinued industrial hardware carries inherent risk. DriveKNMS applies a structured 5-step inspection protocol to every BMXNOM0200 unit before it is offered for sale:

1. Visual and mechanical inspection: Enclosure integrity, connector pin condition, backplane edge connector examination for oxidation or mechanical damage.
2. Electrolytic capacitor assessment: Boards are inspected under magnification for capacitor bulging, electrolyte leakage, or heat stress indicators — the primary failure mode in aged communication modules.
3. Firmware version verification: Where accessible, firmware revision is documented and cross-referenced against known compatibility matrices for M340 CPU firmware versions.
4. Functional bench test: Units are powered via a compatible M340 rack and verified for correct initialization, LED status behavior, and communication port response.
5. Packaging and ESD protection: Units are repackaged in anti-static materials with desiccant for long-term storage integrity.

Units are offered as New Old Stock (NOS), Tested Surplus, or Professionally Refurbished, with condition clearly stated on each order confirmation.

Key Features for System Maintenance

• Drop-in replacement: The BMXNOM0200 installs directly into any open M340 communication slot. No rack modification required.
• No reprogramming required: Module configuration is stored in the Unity Pro / EcoStruxure project file. Swapping the physical module does not require re-engineering the communication setup — only a project download to the CPU.
• Avoids engineering reconstruction costs: Unlike a platform migration, a module swap is a maintenance event, not a capital project. It can be executed by in-house automation staff within a planned maintenance window.
• Preserves existing field wiring: Serial port wiring to RS-232/RS-485 field devices remains unchanged. No field rewiring is required.
• Maintains SCADA/DCS integration: Upstream system configurations — tag databases, communication drivers, historian connections — are unaffected by a like-for-like module replacement.

FAQ

What warranty applies to a discontinued module like the BMXNOM0200?
DriveKNMS provides a 90-day functional warranty on all tested surplus and refurbished units. New Old Stock units carry a 30-day DOA guarantee. Warranty terms are confirmed in writing on each order.

How do I know the unit is genuine and not counterfeit?
All units are sourced from documented industrial decommissioning projects, authorized surplus dealers, or direct OEM overstock. We do not source from anonymous secondary markets. Physical markings, PCB revision codes, and label formats are cross-checked against known genuine references.

Should I buy more than one unit?
For any facility with more than one M340 rack in production service, holding a minimum of two BMXNOM0200 units is a defensible maintenance position. The cost of a second spare is a fraction of one hour of unplanned downtime on a production line. For facilities with a defined end-of-life horizon of 5+ years, a strategic reserve of three to five units is a standard risk mitigation practice.

Can you source additional units if I need more?
Contact us with your quantity requirement. We maintain active sourcing channels and can often locate additional units within 2–4 weeks for larger orders.
