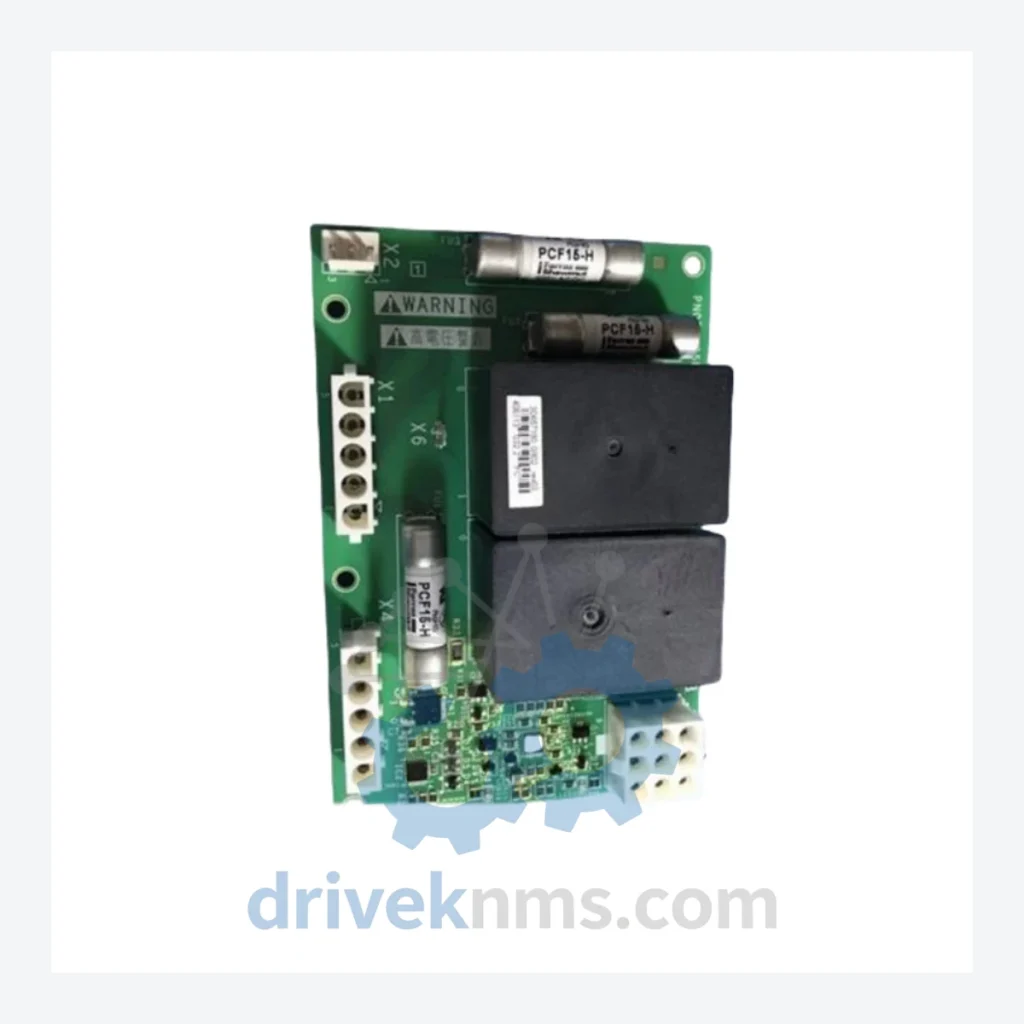

Schneider Electric PN072549P703 Drive Control Board – Obsolete ATV Series Spare Part

Technical Dossier

Product Details And Specifications

Schneider Electric PN072549P703 Drive Control Board – Obsolete ATV Series Spare Part

DriveKNMS reviews sourcing options for this model through RFQ handling before quotation.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Specific electrical parameters (voltage ratings, current ratings, firmware revision) are verified during our QA process and disclosed upon request. No parameters are published without physical verification to ensure accuracy and equipment safety.

Solving the Discontinued Hardware Crisis

The Schneider Electric ATV drive family was deployed extensively across manufacturing, water treatment, HVAC, and material handling applications through the 1990s and 2000s. The PN072549P703 control board sits at the core of the drive's gate-firing and feedback logic — it is not a peripheral accessory. When this board fails, the drive does not run in a degraded mode; it stops entirely.

Schneider Electric's own product lifecycle policy has moved these platforms to end-of-life status, meaning OEM replacement boards are no longer manufactured. The practical consequence for a plant engineer is straightforward: source from the surplus market or replace the entire drive. For facilities where the ATV drive is integrated into a larger control architecture — particularly those running alongside Schneider Electric Modicon PLCs or Telemecanique motor control centers — a like-for-like board replacement is the only option that avoids reprogramming the upstream control system.

Condition & Reliability Assurance

Obsolete boards sourced from the secondary market carry inherent risk if they are not properly evaluated before installation. DriveKNMS applies a structured 5-step inspection protocol to every PN072549P703 unit before it leaves our facility:

• Electrolytic Capacitor Assessment: Capacitors are the primary failure point in aged power electronics. Each board is inspected for capacitor bulging, electrolyte leakage, and ESR deviation. Boards with degraded capacitors are either recapped with specification-matched components or rejected.
• Firmware Version Verification: Where applicable, the firmware revision on the board's programmable components is confirmed against known-compatible versions for the target drive platform. Mismatched firmware is a documented cause of erratic drive behavior post-installation.
• Pin and Connector Corrosion Inspection: All edge connectors, terminal blocks, and inter-board connectors are examined under magnification for oxidation, fretting corrosion, and mechanical damage. Affected contacts are treated or the board is rejected.
• Functional Power-On Test: Where test fixtures are available for the platform, boards are powered and tested for correct signal output prior to shipment.
• Visual and Solder Joint Inspection: All solder joints are inspected for cold joints, cracking, and lifted pads — common in boards that have experienced thermal cycling over years of service.

Key Features for System Maintenance

How do I know the board is genuine and not counterfeit?
All units are sourced through documented surplus channels. Physical markings, PCB revision codes, and component date codes are cross-referenced against known-authentic examples. Boards that cannot be positively authenticated are not sold.
