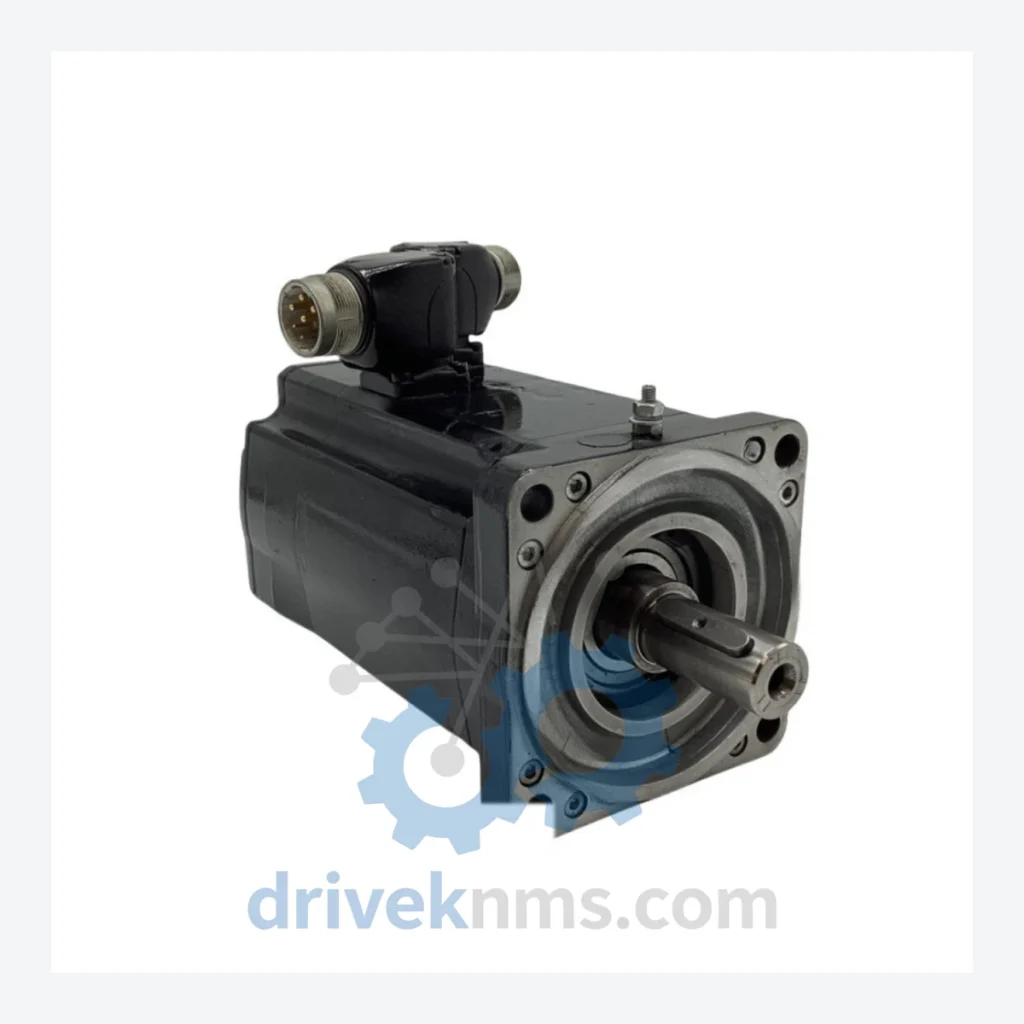

Schneider Electric SH31001P11A2000 Servo Motor – Lexium Series Critical Spare Part

Technical Dossier

Product Details And Specifications

Schneider Electric SH31001P11A2000 Servo Motor – Lexium Series Critical Spare Part

Technical Specifications

Note: Electrical parameters (rated torque, rated speed, encoder resolution, power rating) are confirmed against Schneider Electric documentation on a per-order basis. No parameters are published here that cannot be independently verified. Contact us for the full datasheet.

Solving the Discontinued Hardware Crisis

The SH31001P11A2000 is not itself discontinued, but the broader challenge it addresses is real: Schneider Electric's Lexium servo platform has gone through multiple generations, and older Lexium 05 and Lexium 15 installations are increasingly difficult to support as authorized service networks deprioritize legacy drive configurations. A facility running a 10- or 15-year-old Lexium motion system faces a compounding risk — the drives, motors, and feedback devices were specified together, and replacing one component with a non-identical substitute can require full drive recommissioning, new motor parameter files, and in some cases, PLC program modifications.

The SH31001P11A2000 as a verified OEM part eliminates that engineering exposure entirely. It is a drop-in replacement within its compatible drive family. For plant engineers managing aging Schneider motion infrastructure, the calculus is straightforward: one verified spare motor on the shelf costs a fraction of one day of line stoppage, and a fraction of the engineering cost of a forced migration to a newer drive generation.

Facilities that have extended the service life of Lexium-based systems by 5 to 10 years consistently report the same approach: maintain a minimum of one spare motor per critical axis, maintain one spare drive module per line, and establish a verified supplier relationship for components outside standard distribution. DriveKNMS exists specifically to serve that third requirement.

Condition & Reliability Assurance

• Step 1 – Visual and Mechanical Inspection: Shaft runout check, housing integrity, connector pin condition, and corrosion assessment on all mating surfaces.
• Step 2 – Winding Resistance and Insulation Test: Phase-to-phase resistance balance and insulation resistance measurement to identify winding degradation not visible externally.
• Step 3 – Encoder and Feedback Device Verification: Where applicable, encoder signal integrity is confirmed. Firmware version is logged and cross-referenced against known compatibility matrices for target drive families.
• Step 4 – Electrolytic Capacitor Assessment: For units with integrated electronics, capacitor condition is evaluated. Units showing ESR drift outside acceptable limits are flagged and not shipped.
• Step 5 – Functional Run Test and Documentation: Units are run under no-load conditions where test infrastructure permits. Full inspection records accompany each shipment.

Units are classified and clearly labeled as New (sealed OEM), Surplus New (unused, removed from original packaging), or Professionally Refurbished (inspected and tested to OEM specification). Classification is disclosed prior to order confirmation — no ambiguity.

Key Features for System Maintenance

• Drop-in replacement: The SH31001P11A2000 installs directly into compatible Lexium drive systems without mechanical modification or drive parameter re-entry, provided the drive firmware is at a compatible revision level.
• No PLC reprogramming required: Motor substitution within the same part number eliminates the need for motion program changes, axis scaling adjustments, or safety function recertification.
• Avoids forced system migration: Sourcing an OEM replacement motor costs a fraction of the engineering, commissioning, and validation cost of migrating to a current-generation Schneider motion platform.
• Protects capital asset value: Automated production equipment represents significant capital investment. Maintaining it with verified OEM components preserves asset book value and avoids premature write-down.
• Reduces insurance and compliance exposure: Using non-OEM or unverified substitute components in safety-rated motion applications introduces liability. OEM part numbers maintain the original equipment specification.

How do I confirm the unit is genuine Schneider Electric?
DriveKNMS supplies only units with traceable provenance. Nameplate data, serial number, and where available, original packaging documentation are provided with each shipment. We do not supply counterfeit or remarked components.

Should I hold more than one spare unit?
For any axis classified as critical — meaning its failure stops the line — the standard recommendation is a minimum of one cold spare per axis. For high-cycle axes or axes in harsh environments, two units is a defensible position. The cost of a second spare motor is negligible against the cost of a second unplanned stoppage while waiting for resupply.

Can DriveKNMS source other Schneider Lexium components?
Yes. DriveKNMS specializes in hard-to-source motion control and automation components across multiple brands. If you are building a broader Lexium spare parts inventory, contact us with your full BOM and we will provide consolidated sourcing.
