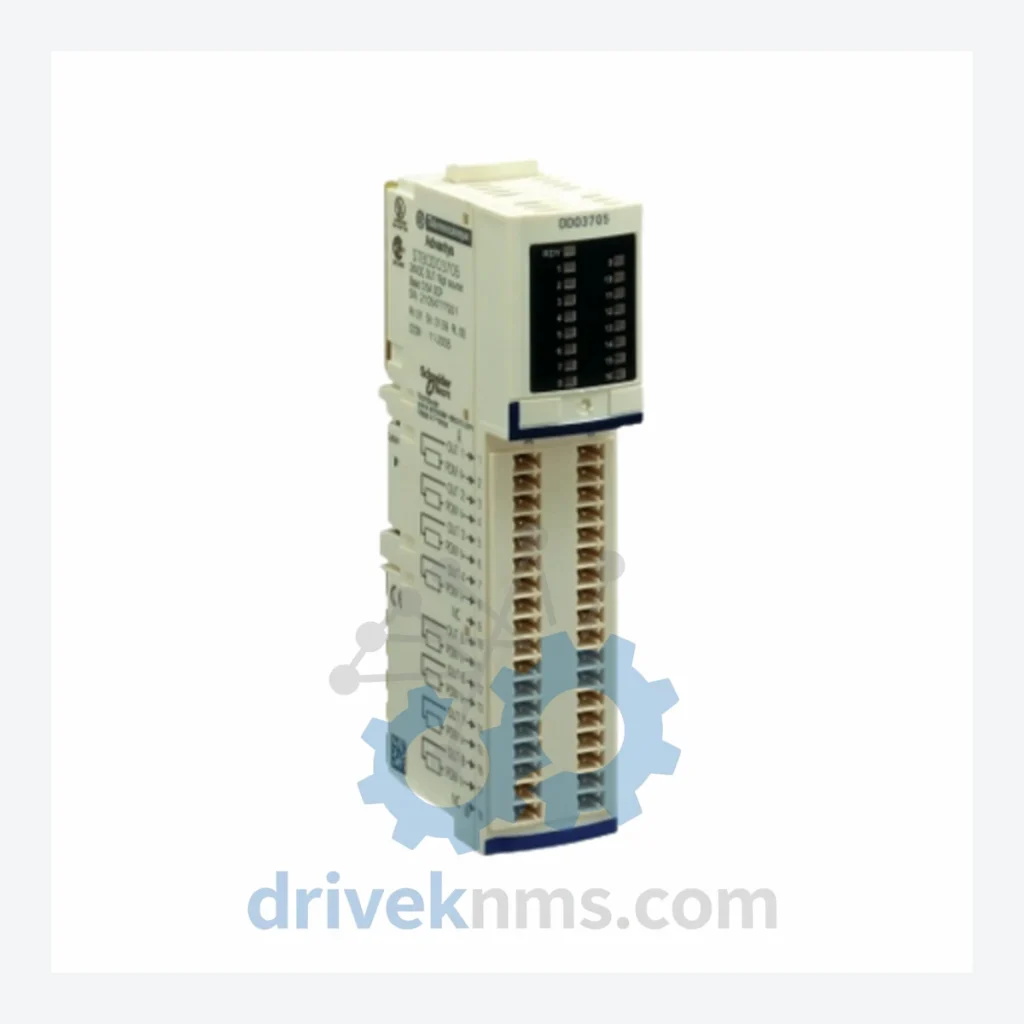

Schneider Electric STB (Advantys) Modules: STBDDO3705 / STBDD03705

Technical Dossier

Product Details And Specifications

Schneider Electric STB (Advantys) Series: Comprehensive Module Range and Technical Overview

The Schneider Electric Advantys STB (Slice I/O) series is a distributed I/O platform deployed across heavy industrial environments worldwide, including petrochemical refineries, nuclear power facilities, offshore platforms, and large-scale chemical processing plants. Designed for integration with Modbus, CANopen, PROFIBUS DP, DeviceNet, and Ethernet-based fieldbus architectures, the STB platform provides modular, rail-mounted I/O expansion with deterministic communication and high environmental tolerance. Its compact slice form factor and hot-swap capability make it a preferred solution for process control engineers requiring high-density I/O in space-constrained control panels. The STBDDO3705 and its alternate reference STBDD03705 are 24 VDC digital output modules within this platform, providing 4 transistor output channels rated at 0.5 A per channel, suitable for driving solenoid valves, relays, and indicator lamps in safety-critical process loops.

The Evolution of STB Advantys Architecture

The Advantys STB platform was introduced by Schneider Electric in the late 1990s as a response to the growing demand for distributed I/O in fieldbus-based DCS and PLC architectures. The first generation relied primarily on Modbus RTU and CANopen network interface modules (NIMs), with a fixed island topology where all slice modules shared a single fieldbus node address. The second generation expanded fieldbus compatibility to include PROFIBUS DP (via STBNDP2212) and DeviceNet (via STBNDN2212), enabling integration into Siemens and Rockwell Automation control environments without gateway hardware.

The third and current generation introduced Ethernet-based NIMs (STBNIP2212) supporting Modbus TCP and EtherNet/IP, aligning the platform with IIoT-ready architectures. Throughout all generations, the physical slice module form factor and 24 VDC power bus remained backward-compatible, allowing legacy I/O modules such as the STBDDO3705 to operate on modern Ethernet islands without hardware modification. This cross-generational compatibility is a primary reason the STB platform remains in active service in facilities with 15–25 year operational lifecycles. Modules produced before 2010 may require firmware-level NIM updates to support advanced diagnostic features available in current NIM generations.

STB Advantys Full Catalog & Functionalities (SKU List)

Digital Output Modules

• STBDDO3705 / STBDD03705: 4-channel 24 VDC transistor output, 0.5 A/ch, current sourcing (PNP)
• STBDDO3410: 4-channel 24 VDC transistor output, 2 A/ch, high-current sourcing
• STBDDO3600: 6-channel 24 VDC transistor output, 0.5 A/ch, standard density
• STBDDO3705K: 4-channel 24 VDC transistor output, conformal-coated variant for harsh environments
• STBDRA1005: 2-channel relay output, 5 A/ch, 24 VDC/120 VAC, dry contact
• STBDRA1010: 2-channel relay output, 10 A/ch, 24 VDC/240 VAC, dry contact

Digital Input Modules

• STBDDI3725: 4-channel 24 VDC digital input, sink/source compatible, standard
• STBDDI3420: 4-channel 24 VDC digital input, 2-wire sensor compatible
• STBDDI3610: 6-channel 24 VDC digital input, high-density
• STBDDI3100: 2-channel 120 VAC digital input, isolated

Analog I/O Modules

• STBAVI1270: 2-channel analog voltage input, ±10 V / 0–10 V, 12-bit resolution
• STBACI1230: 2-channel analog current input, 4–20 mA, 12-bit resolution
• STBAVO1250: 2-channel analog voltage output, 0–10 V, 12-bit resolution
• STBACO1225: 2-channel analog current output, 4–20 mA, 12-bit resolution

Network Interface Modules (NIM) & Power Supplies

• STBNDP2212: PROFIBUS DP network interface module, up to 32 slice modules per island
• STBNIP2212: Modbus TCP / EtherNet/IP dual-protocol NIM, 10/100 Mbps
• STBNDN2212: DeviceNet network interface module
• STBCPS2111: 24 VDC island bus power supply, 1.5 A, standard
• STBCPS3111: 24 VDC island bus power supply, 3 A, high-capacity

Sourcing Hard-to-Find & Obsolete STB Advantys Parts

Several STB Advantys modules, including early-generation NIMs and specific analog I/O variants, have reached end-of-sale status with Schneider Electric. DriveKNMS maintains a dedicated inventory of tested surplus and refurbished STB modules to support facilities operating legacy Advantys islands beyond the manufacturer's active support window. Our sourcing network covers original-manufacture stock from authorized distribution channels as well as decommissioned industrial equipment, all subject to full functional verification before dispatch.

For facilities requiring long-term maintenance contracts or scheduled replacement programs for STB islands, DriveKNMS provides multi-unit quotations with lead time commitments. Modules such as the STBDDO3705, STBDDI3725, and STBCPS2111 are stocked in quantity to support emergency breakdown scenarios with same-day or next-business-day dispatch capability.

Quality Control for the STB Advantys Range

Each STB module processed by DriveKNMS undergoes a structured verification protocol adapted to the slice I/O architecture. Digital output modules including the STBDDO3705 are tested under load conditions replicating field wiring: each output channel is activated individually and in combination, with current draw, switching response time, and short-circuit protection behavior recorded against Schneider Electric factory specifications. Transistor output modules are verified for leakage current within the 0.5 mA maximum threshold specified for PNP sourcing outputs.

Network interface modules are bench-tested on a live Modbus TCP and PROFIBUS DP test island comprising a minimum of 8 slice modules, verifying island initialization, I/O data mapping, and diagnostic register accuracy. Analog modules are calibrated using traceable reference instruments to confirm linearity and offset error within the ±0.1% full-scale specification. All modules are inspected for backplane connector pin integrity, capacitor condition, and conformal coating continuity where applicable. Test records are retained per serial number for traceability.
