Schneider Electric Twido TWD Series: Comprehensive Module Range and Technical Overview

The Schneider Electric Twido (TWD) series is a compact, modular programmable logic controller platform engineered for small-to-medium industrial automation applications. Deployed extensively across chemical processing plants, water treatment facilities, oil & gas upstream installations, and discrete manufacturing lines, the Twido platform achieved significant global installed base throughout the 2000s and early 2010s. Its architecture supports both compact all-in-one base units and modular expansion configurations, enabling system integrators to tailor I/O density to process requirements without over-specifying hardware. The series is now in end-of-life / mature phase; Schneider Electric has officially discontinued active production, with Modicon M221 and M241 designated as the primary migration targets. Despite this, the TWD installed base remains substantial in legacy plant environments where full DCS migration is deferred due to capital expenditure constraints or process continuity requirements.

The Evolution of Twido TWD Architecture

The Twido platform was introduced by Schneider Electric (then Telemecanique / Square D) in the early 2000s as a successor to the Nano/Micro PLC range. The architecture evolved through three identifiable generations. The first generation established the TWDLC compact base units with fixed I/O and integrated serial ports. The second generation introduced the modular TWDLMDA/TWDLMDD base controllers with expansion bus capability, enabling attachment of discrete I/O, analog, and communication extension modules. The third generation added Ethernet connectivity options (TWDNOE77101) and enhanced analog resolution modules, extending the platform's viability into networked SCADA environments. Backplane communication is handled via a proprietary serial expansion bus; modules are not hot-swappable and require controller power-down for safe insertion or removal. Migration to M221/M241 requires I/O remapping and program conversion via SoMachine Basic or EcoStruxure Machine Expert — Basic, as TwidoSuite programming software is no longer supported on Windows 10/11 without compatibility shims.

Twido TWD Full Catalog & Functionalities (SKU List)

Compact Base Controllers

• TWDLCAA10DRF: 6DI / 4DO relay compact base, 100–240 VAC power supply
• TWDLCAA16DRF: 9DI / 7DO relay compact base, 100–240 VAC, integrated serial port
• TWDLCAA24DRF: 14DI / 10DO relay compact base, 100–240 VAC, 1 serial port
• TWDLCDE40DRF: 24DI / 16DO relay compact base, 24 VDC power, high-density discrete I/O

Modular Base Controllers

• TWDLMDA20DRT: 12DI / 8DO transistor modular base, 24 VDC, expansion bus host
• TWDLMDA20DTK: 12DI / 8DO transistor modular base, 24 VDC, with CANopen port
• TWDLMDD20DRT: 12DI / 8DO relay modular base, 24 VDC, supports up to 7 expansion modules

Discrete I/O Expansion Modules

• TWDDDI8DT: 8-channel 24 VDC digital input expansion module, sink/source compatible
• TWDDDO8TT: 8-channel 24 VDC transistor digital output expansion module, 0.5 A per channel
• TWDDMM8DRT: 4DI / 4DO mixed discrete expansion module, relay outputs

Analog I/O Modules

• TWDAMI2HT: 2-channel analog input module, 0–10 V / 0–20 mA / 4–20 mA, 12-bit resolution
• TWDAMI4LT: 4-channel analog input module, 0–10 V / 4–20 mA, 12-bit resolution

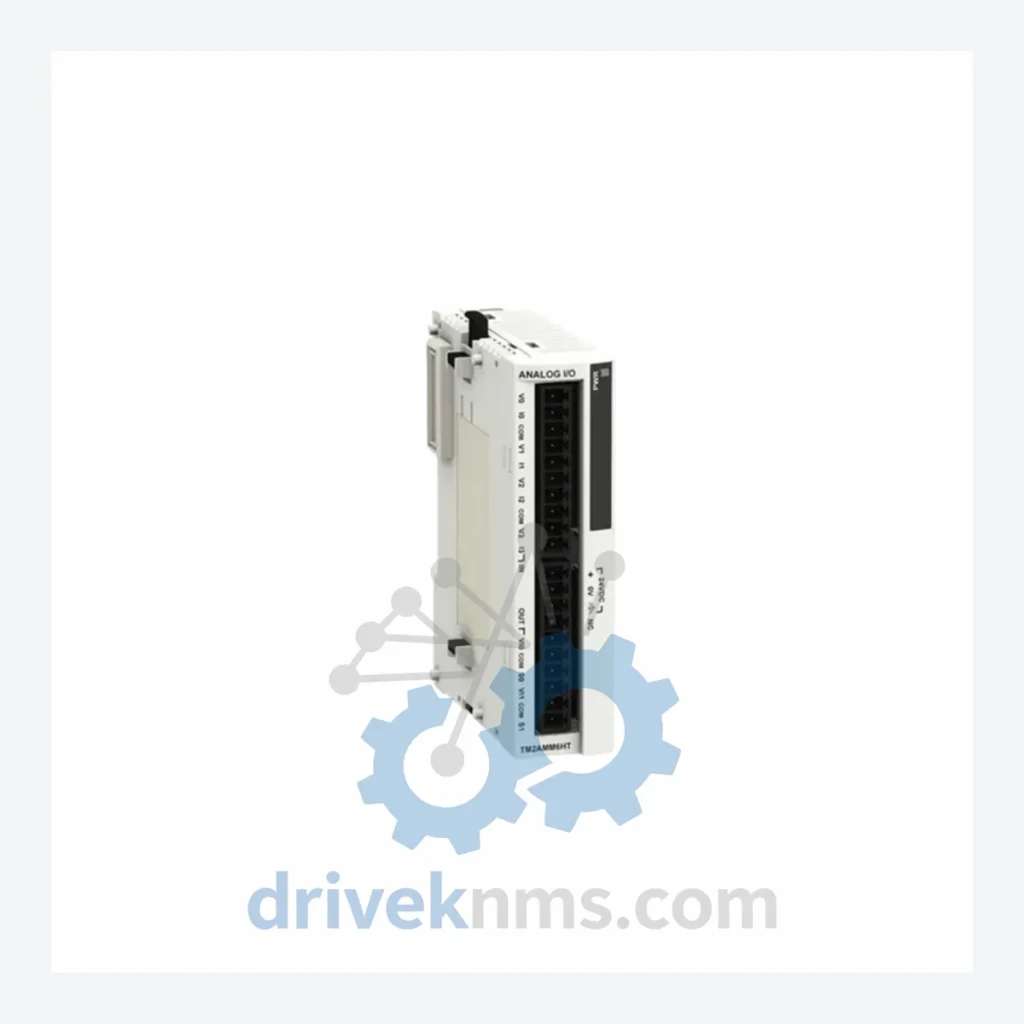

• TWDAVO2HT: 2-channel analog output module, 0–10 V / 4–20 mA selectable, 12-bit resolution, 24 VDC bus-powered — this listing
• TWDAMM3HT: 2AI / 1AO mixed analog module, 12-bit, 0–10 V / 4–20 mA

Communication & Specialty Modules

• TWDNAC485T: RS-485 serial communication adapter, Modbus RTU / ASCII master-slave
• TWDNOE77101: Ethernet TCP/IP communication module, 10/100 Mbps, Modbus TCP server
• TWDXCPODM: Operator display module, 4-line LCD, local parameter adjustment without PC

Sourcing Hard-to-Find & Obsolete TWD Series Parts

Quality Control for the TWD Series Range

All TWD series modules processed by DriveKNMS undergo a structured inspection and functional verification protocol prior to dispatch. Each unit is visually inspected for backplane connector integrity, capacitor condition, and PCB contamination. Analog modules — including the TWDAVO2HT, TWDAMI2HT, and TWDAMM3HT — are bench-tested under live 24 VDC bus conditions with calibrated signal injection to verify output linearity, zero-offset, and full-scale accuracy across both voltage (0–10 V) and current (4–20 mA) output ranges. Communication modules (TWDNOE77101, TWDNAC485T) are validated for frame integrity and protocol handshake under simulated Modbus TCP and RTU environments. Discrete I/O modules are cycled through full ON/OFF switching sequences with load verification on each channel. Units failing any test threshold are quarantined and not offered for sale.
