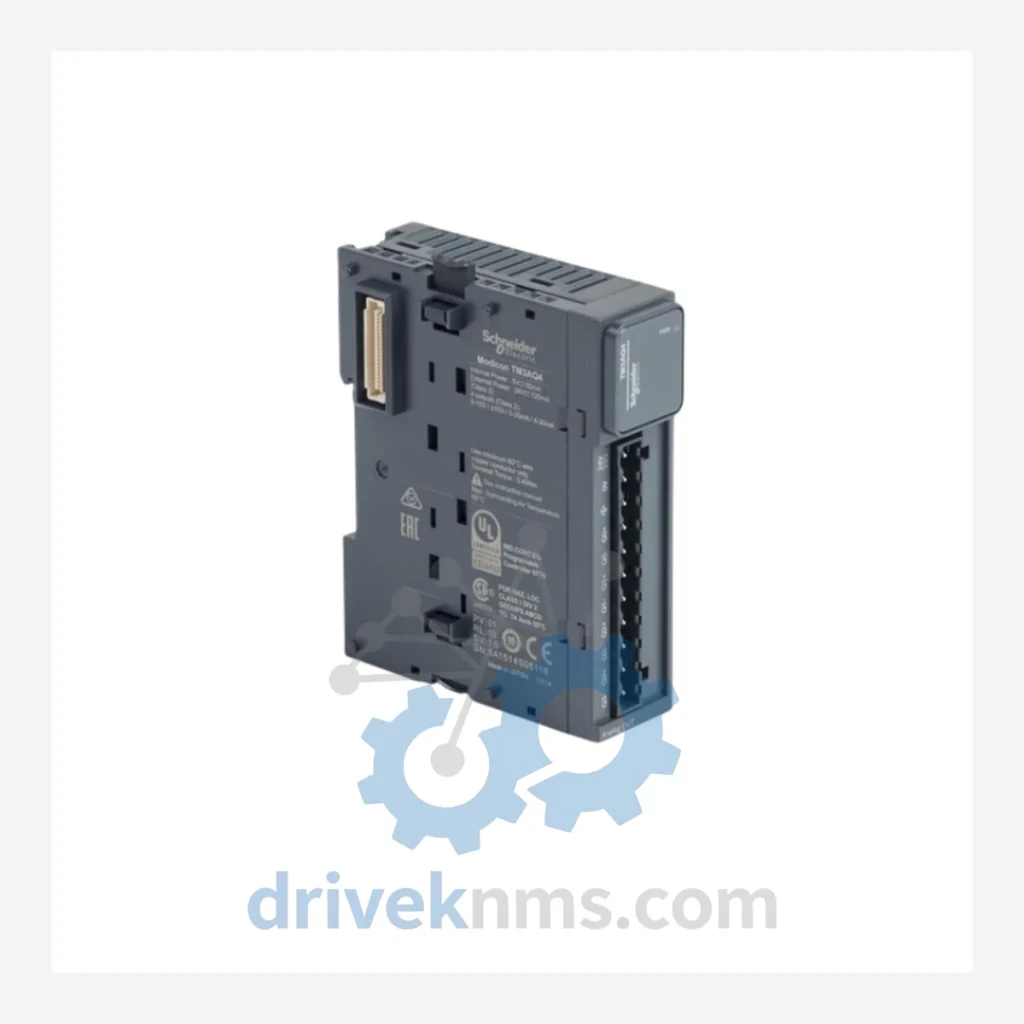

Schneider Electric TM3AQ4 Analog Output Module – Critical TM3 Series Spare Part

Technical Dossier

Product Details And Specifications

Schneider Electric TM3AQ4 Analog Output Module – Critical TM3 Series Spare Part

DriveKNMS reviews sourcing options for this model through RFQ handling before quotation.

Technical Specifications

Solving the Critical Hardware Availability Crisis

The TM3AQ4 occupies a non-negotiable position in any Modicon TM3 expansion rack that requires analog process control. Unlike digital I/O modules that can sometimes be substituted with minor logic adjustments, analog output modules are directly tied to calibrated field devices — control valves, variable frequency drives, and positioners — that depend on precise signal ranges. Swapping in an incompatible module is not a field option.

DriveKNMS sources and holds verified inventory of hard-to-obtain TM3 series components specifically to serve facilities that have exhausted standard channels or require immediate fulfillment.

How Critical Spare Strategy Extends Automation Asset Life by 5–10 Years

Modicon TM3-based control systems represent a significant capital investment. The controller hardware, field wiring, HMI configuration, and engineering hours embedded in a functioning TM3 installation are not trivially replaced. When a single I/O module becomes unavailable, plant management faces a disproportionate choice: source the part or justify a full system migration.

A structured spare parts strategy eliminates that false dilemma. Facilities that maintain a minimum of one verified spare TM3AQ4 per installed rack effectively insulate their automation investment from component-level supply risk. Combined with periodic firmware verification and preventive inspection of connector integrity, this approach routinely extends the productive service life of TM3 installations by 5 to 10 years beyond what reactive maintenance would allow.

Condition & Reliability Assurance

Every TM3AQ4 unit shipped by DriveKNMS passes a structured 5-step inspection protocol before dispatch:

• Step 1 – Visual Inspection: Full examination of housing, connector pins, and PCB surface for physical damage, corrosion, or contamination.
• Step 2 – Connector Integrity Check: Pin-by-pin inspection of the TM3 bus connector and I/O terminal block for oxidation, deformation, or contact resistance anomalies.
• Step 3 – Capacitor Health Assessment: Inspection for electrolytic capacitor swelling or leakage — a primary failure mode in modules that have been stored or operated in thermally stressed environments.
• Step 4 – Firmware Version Verification: Where accessible, firmware revision is confirmed against Schneider Electric's compatibility matrix for the target controller platform.
• Step 5 – Functional Output Test: Analog output channels are verified against specified signal ranges prior to packaging.

Units that do not pass all five steps are not shipped. No exceptions.

Key Features for System Maintenance

• Drop-in Replacement: The TM3AQ4 installs directly into any TM3 expansion slot on a compatible Modicon controller. No hardware modification required.
• No Reprogramming Required: The controller recognizes the module automatically via the TM3 bus. Existing application logic, scaling parameters, and I/O mapping remain intact.
• Avoids Engineering Rework: Unlike a platform migration, replacing a failed TM3AQ4 with a verified spare requires no PLC re-engineering, no field rewiring, and no recommissioning of connected field devices.
• Immediate Operational Restoration: Properly stocked spare modules reduce mean time to repair (MTTR) from weeks to hours.

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Q: How should spare TM3AQ4 modules be stored long-term?
A: Store in original anti-static packaging in a dry, temperature-controlled environment (recommended: 15–30°C, relative humidity below 70%, non-condensing). Avoid proximity to strong magnetic fields or chemical vapors. Inspect annually for connector oxidation.

Q: Can you support multi-unit or repeat RFQ requests?
A: Yes. Send the model list, target quantity and destination so DRIVEKNMS can review sourcing options and quote the requirement as a project RFQ.
