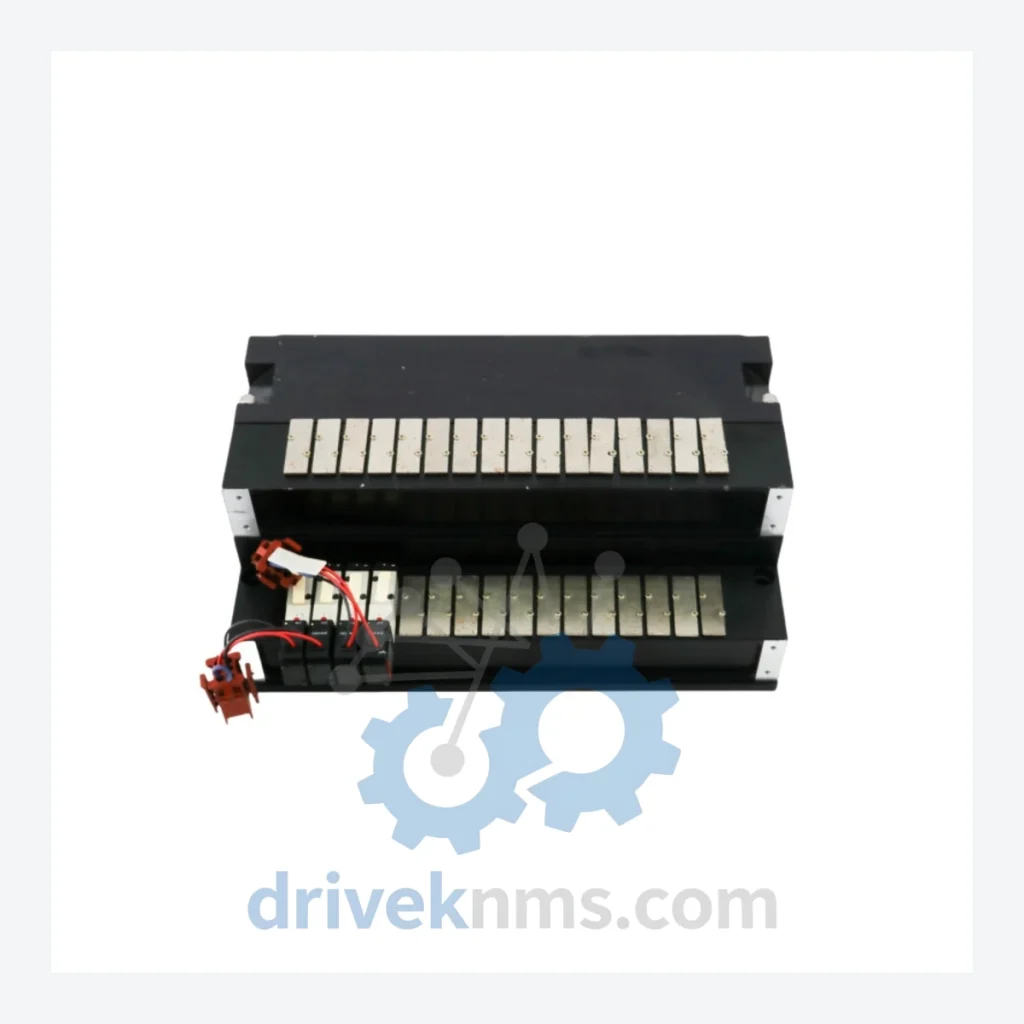

SEMITOOL 61589-33 Manifold Assembly – Obsolete Semiconductor Process Spare Part

When a manifold assembly fails inside a SEMITOOL wet process tool, the production line does not simply pause — it stops. For fabs still operating legacy SEMITOOL equipment such as the Raider, Equinox, or Spray Acid Tool platforms, sourcing a replacement 61589-33 manifold assembly is not a procurement exercise; it is a crisis. A forced equipment retirement triggered by a single unavailable fluid-handling component can cascade into a capital expenditure decision worth several million dollars: new tool qualification, process re-validation, facility modification, and months of engineering downtime. DriveKNMS maintains verified stock of the 61589-33 (46CM) 802-5134B N-2304-1-K00AA AS 820 Manifold Assembly precisely to prevent that outcome.

Technical Specifications

Note: Electrical and dimensional parameters beyond those listed above are not published here to avoid inaccuracy. Contact us for verified datasheet documentation.

Solving the Discontinued Hardware Crisis

SEMITOOL was acquired by Applied Materials in 2009. While Applied Materials continued supporting certain product lines, legacy fluid-handling assemblies such as the 61589-33 manifold were not carried forward into active production. Fabs that built their wet process infrastructure around SEMITOOL platforms now face a structural supply gap: the OEM no longer manufactures this component, authorized distributors have exhausted their buffer stock, and the part does not cross-reference to any current Applied Materials catalog number.

The manifold assembly is not a peripheral item. It governs the routing of process chemistries — acids, solvents, and rinse water — through the tool's internal plumbing. A degraded or failed manifold introduces cross-contamination risk, process drift, and in severe cases, chemical containment failure. There is no field-fabricated substitute. The geometry, material compatibility (typically PVDF or PFA construction), and port configuration are tool-specific. Replacing the manifold with a non-OEM equivalent without engineering validation is not a viable path for a qualified process.

For plant managers facing end-of-life pressure on SEMITOOL assets, the calculus is straightforward: a verified replacement manifold assembly at a fraction of the cost of new tool procurement extends the productive life of the existing asset by 5 to 10 years. That extension defers capital expenditure, preserves a qualified process baseline, and eliminates the re-qualification timeline that accompanies any new tool installation. The 61589-33 is not a consumable — it is the structural argument for keeping the tool running.

How to extend your SEMITOOL asset life by 5–10 years through strategic spare parts management:

• Identify the three to five fluid-handling and motion-control components with the longest lead times on your SEMITOOL platform. The manifold assembly, chemical dosing valves, and spin chuck assemblies are typically the highest-risk items.
• Establish a minimum buffer stock of one verified spare for each critical-path component. A single manifold assembly held in climate-controlled storage costs a fraction of one week of unplanned downtime.
• Document the current firmware and software revision of your tool controller before any maintenance event. SEMITOOL tools running legacy control software may not accept components that have been refurbished with updated firmware.
• Schedule proactive manifold inspection at defined process-hour intervals rather than waiting for failure. Early-stage seal degradation and port wear are detectable before they cause process excursions.
• Engage a specialist supplier — not a general industrial distributor — for obsolete SEMITOOL parts. Traceability, condition grading, and compatibility verification require domain knowledge that general distributors do not carry.

Condition & Reliability Assurance

Every 61589-33 manifold assembly shipped by DriveKNMS passes a five-stage inspection protocol before release:

• Visual and dimensional inspection: Port geometry, flange faces, and body integrity are checked against OEM reference documentation. Units with cracks, deformation, or non-OEM modifications are rejected.
• Material compatibility verification: Wetted surface materials are confirmed against the original SEMITOOL bill of materials. PVDF and PFA components are inspected for UV degradation, stress whitening, and chemical staining that indicate prior exposure to incompatible chemistries.
• Seal and fitting condition: All O-rings, gaskets, and compression fittings are inspected. Aged elastomers are replaced with chemically compatible equivalents prior to shipment.
• Port and thread integrity: All inlet and outlet ports are inspected for corrosion, thread damage, and particulate contamination. Ports are capped and sealed for shipment.
• Firmware and control interface check (where applicable): For assemblies with integrated sensors or electronic interfaces, firmware version is documented and provided with the unit to ensure compatibility with the target tool's control system.

Units are classified as New Old Stock (NOS), Tested Surplus, or Professionally Refurbished. Condition grade is stated explicitly on the invoice and packing documentation.

Key Features for System Maintenance

• Drop-in replacement: The 61589-33 is a direct OEM-equivalent assembly. No re-engineering of the tool's plumbing circuit is required. Installation follows the original SEMITOOL service procedure.
• No reprogramming required: The manifold assembly is a mechanical fluid-handling component. Replacement does not trigger control system reconfiguration or process recipe modification.
• Avoids engineering reconstruction costs: Substituting a non-equivalent manifold would require process re-qualification, chemical compatibility testing, and potentially a new tool qualification package. The OEM-equivalent 61589-33 eliminates that cost entirely.
• Preserves process certification: Fabs operating under IATF 16949, ISO 9001, or semiconductor-specific quality frameworks maintain process traceability when replacing with OEM-equivalent parts. Non-equivalent substitutions may require customer notification and re-qualification.

FAQ

What warranty applies to an obsolete part like the 61589-33?
DriveKNMS provides a 90-day warranty against defects in materials and workmanship for all inspected and tested units. New Old Stock units carry a 180-day warranty. Warranty terms are confirmed in writing at the time of order.

How do I confirm the unit is genuine and not a counterfeit?
All units are sourced from documented industrial surplus channels, decommissioned fabs, or authorized liquidation. We provide full traceability documentation including source records, inspection reports, and condition grading. We do not source from unverified secondary markets.

Should I purchase more than one unit?
For a tool that is still in active production use, holding a minimum of one spare manifold assembly is standard risk management practice. Given that this part is no longer manufactured, availability will not improve over time. Procurement managers responsible for SEMITOOL assets should treat this as a now-or-never inventory decision.

Can you source other SEMITOOL obsolete parts?
Yes. DriveKNMS specializes in hard-to-find and discontinued semiconductor equipment spare parts. Contact us with your full part number and we will confirm availability or initiate a sourcing search.
