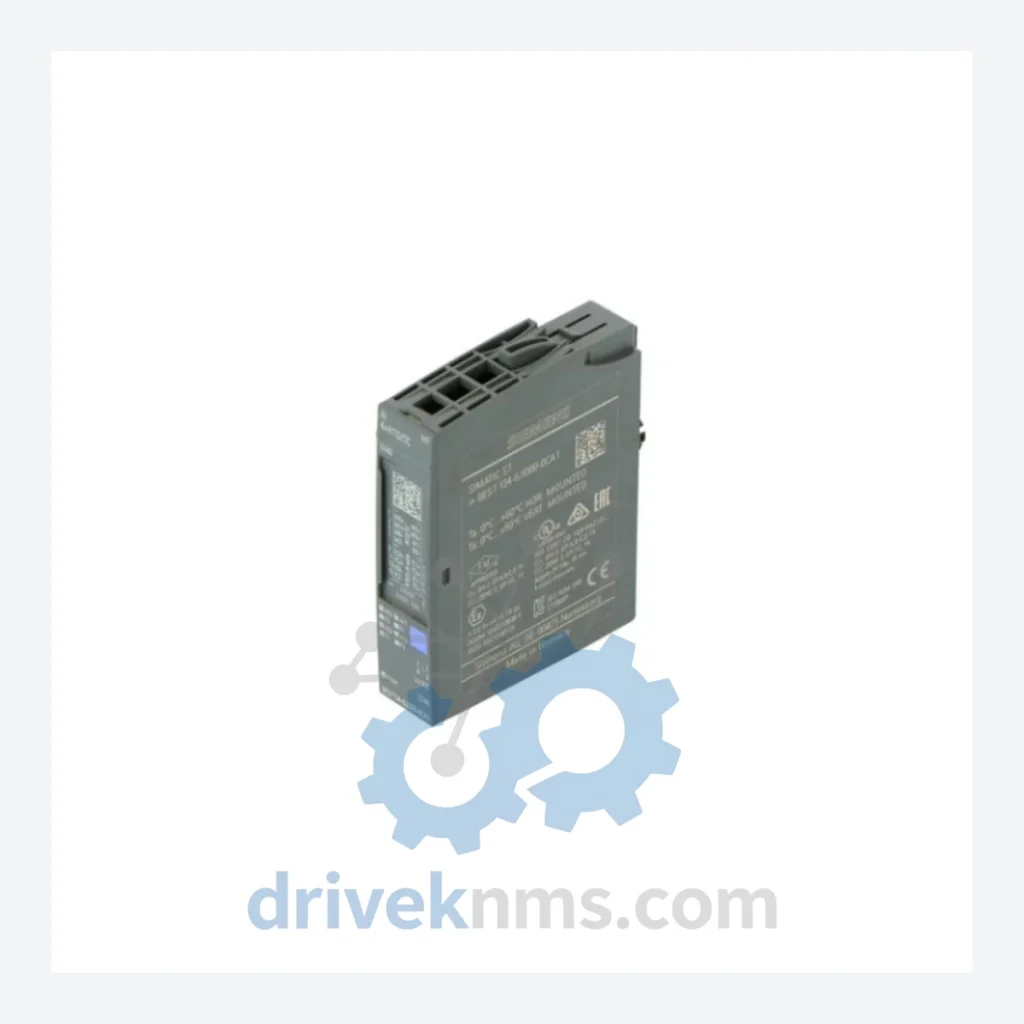

Siemens SIMATIC ET 200SP Modules: 6ES7134-6JD00-0CA1 Analog Input Module

Name: Siemens SIMATIC ET 200SP Modules: 6ES7134-6JD00-0CA1 Analog Input Module
Brand: Siemens

Model: 6ES7134-6JD00-0CA1

Brand Siemens

Series Pending

Model 6ES7134-6JD00-0CA1

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

Siemens SIMATIC ET 200SP Series Technical Notes

The Siemens SIMATIC ET 200SP is a distributed I/O system designed for integration with the SIMATIC S7-1500 controller platform. It is deployed across heavy industrial sectors including petrochemical refineries, nuclear power generation facilities, offshore platforms, and large-scale chemical processing plants. Its compact backplane architecture, high channel density, and PROFINET/PROFIBUS connectivity make it one of the most widely installed distributed I/O families in global process automation. The ET 200SP has displaced legacy ET 200S installations across brownfield and greenfield projects since its introduction, and remains the reference platform for Siemens TIA Portal-based automation architectures.

The Evolution of ET 200SP Architecture

The ET 200SP was introduced as the successor to the ET 200S series, offering a reduced footprint (approximately 15mm module width vs. 30mm for ET 200S), higher packing density, and native PROFINET IRT support. Early hardware revisions (circa 2012–2014) established the BaseUnit concept — a passive carrier that routes power and backplane bus signals, allowing hot-swappable I/O modules without tools. Subsequent firmware generations introduced fail-safe (F) variants compliant with IEC 61508 SIL 2/3 and ISO 13849 PLe, enabling the ET 200SP to serve both standard and safety-instrumented system (SIS) applications on a shared backplane. The introduction of the ET 200SP HA (High Availability) variant extended the platform into redundant controller topologies for continuous process industries. Compatibility between hardware generations is managed through the TIA Portal hardware catalog; cross-generation substitution requires validation of BaseUnit type (BU type A0, B0, etc.) and firmware revision alignment.

ET 200SP Full Catalog & Functionalities — SKU List

Analog Input Modules

6ES7134-6JD00-0CA1: 4-channel analog input, ±10V/0–20mA, 16-bit resolution, BaseUnit BU type A0
6ES7134-6GD01-0BA1: 4-channel analog input, high-speed, ±10V/0–20mA, 16-bit, HART-capable
6ES7134-6HB00-0CA1: 2-channel analog input, thermocouple/RTD, temperature measurement module
6ES7134-6PA01-0BD0: 4-channel analog input, HART, 0–20mA/4–20mA, process field device integration
6ES7134-6FF00-0AA1: 8-channel analog input, 13-bit, standard voltage/current ranges

Analog Output Modules

6ES7135-6GB00-0BA1: 2-channel analog output, ±10V/0–20mA, 16-bit resolution
6ES7135-6HD00-0BA1: 4-channel analog output, HART, 0–20mA, process control output
6ES7135-6HB00-0DA1: 2-channel analog output, high-accuracy, ±10V/0–20mA

Digital Input Modules

6ES7131-6BF01-0BA0: 8-channel digital input, 24VDC, standard, BaseUnit BU type A0
6ES7131-6BH01-0BA0: 16-channel digital input, 24VDC, high-density
6ES7131-6TF00-0CA0: 8-channel digital input, fail-safe (F), SIL 2/PLd
6ES7131-6TF01-0CA0: 8-channel digital input, fail-safe (F), SIL 3/PLe

Digital Output Modules

6ES7132-6BF01-0BA0: 8-channel digital output, 24VDC/0.5A, standard
6ES7132-6BH01-0BA0: 16-channel digital output, 24VDC, high-density
6ES7132-6TF01-0CA0: 8-channel digital output, fail-safe (F), SIL 3/PLe

CPU / Interface Modules

6ES7155-6AU01-0BN0: ET 200SP IM 155-6 PN ST interface module, PROFINET, standard
6ES7155-6AU00-0BN0: ET 200SP IM 155-6 PN HF interface module, PROFINET, high-feature, MRP/MRPD
6ES7155-6AR00-0AN0: ET 200SP IM 155-6 DP interface module, PROFIBUS DP

Power / BaseUnit

6ES7193-6BP00-0BA0: BaseUnit BU15-P16+A0+2D, light type, standard power feed
6ES7193-6BP20-0DA0: BaseUnit BU20-P12+A0+2B, dark type, potential group isolation
