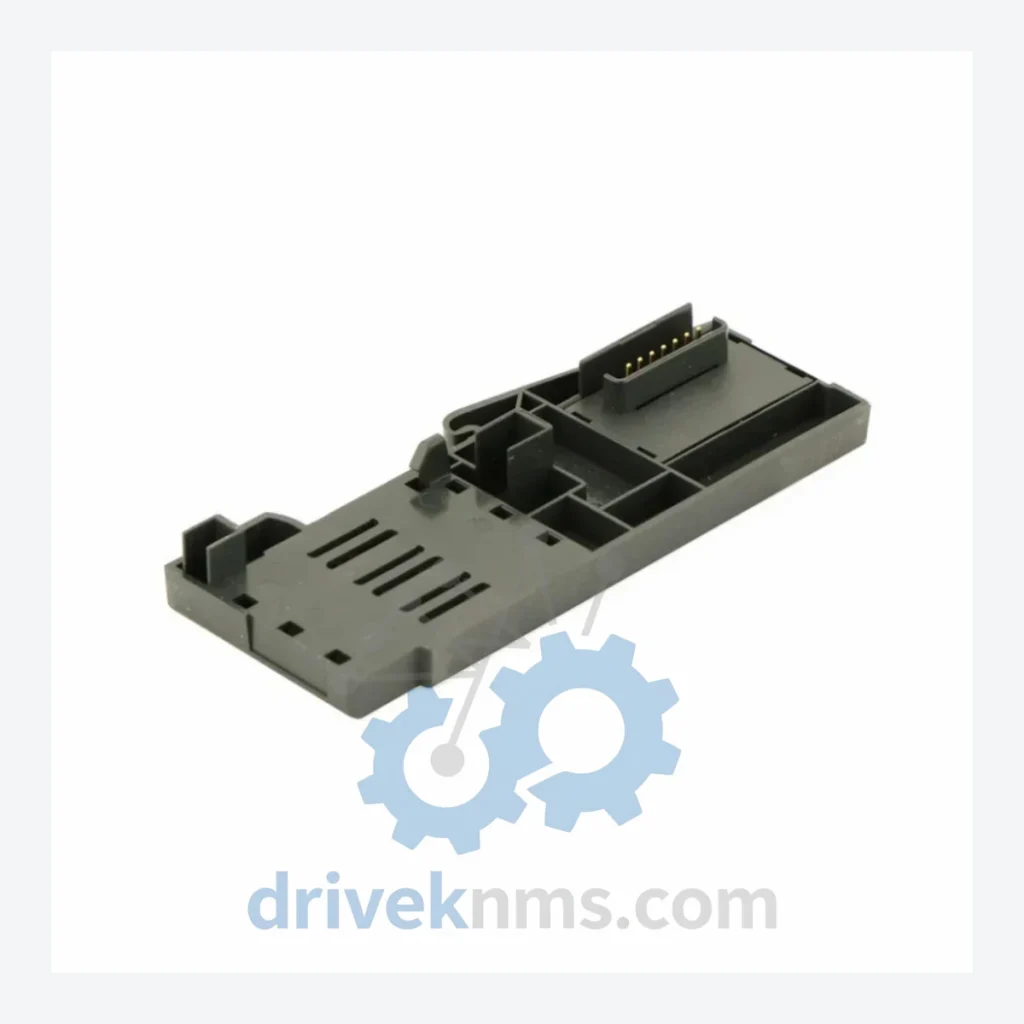

Siemens ET 200S Modules: 6ES7193-4JA00-0AA0

Technical Dossier

Product Details And Specifications

Siemens ET 200S Series Technical Notes

The Siemens ET 200S (SIMATIC ET 200S) is a modular distributed I/O system designed for decentralized automation architectures in heavy industrial environments. Deployed extensively in chemical processing plants, oil refineries, nuclear power facilities, and continuous manufacturing lines, the ET 200S communicates via PROFIBUS DP and PROFINET, enabling high-density I/O expansion at field level with minimal cabinet footprint. Its fine-granular modularity — down to 2-channel I/O slices — makes it the preferred distributed I/O platform for safety-instrumented systems (SIS) and process control networks where channel-level isolation and hot-swappability are mandatory. The 6ES7193-4JA00-0AA0 is a terminal module (TM-E) within this ecosystem, providing the passive backplane connection point for electronic modules in the ET 200S rail assembly.

The Evolution of ET 200S Architecture

The ET 200S platform was introduced by Siemens in the late 1990s as a successor to the ET 200B and ET 200U distributed I/O families, addressing the demand for finer I/O granularity and PROFIBUS DP compliance at field level. The original architecture separated the terminal module (TM) from the electronic module (EM), allowing the wiring infrastructure to remain intact during module replacement — a critical feature for process industries with high uptime requirements.

Early generations (circa 1998–2005) supported PROFIBUS DP up to 12 Mbit/s via the IM 151-1 interface module. The introduction of the IM 151-3 PN brought PROFINET IO compatibility, enabling integration with TIA Portal-based engineering workflows and IRT (Isochronous Real-Time) communication for motion-critical applications. The 6ES7193-4xx terminal module series was standardized across both PROFIBUS and PROFINET variants, ensuring backward mechanical compatibility while the interface layer evolved.

As of 2020, Siemens has positioned the ET 200SP as the strategic successor to the ET 200S. The ET 200S remains in the Siemens catalog under lifecycle status Classic (limited new development, sustained spare parts supply), with full spare parts availability confirmed through 2028 per Siemens Product Lifecycle Management documentation. For installations where ET 200S replacement is not feasible, DriveKNMS provides long-term maintenance inventory for the complete 6ES7193-4xx terminal module range.

ET 200S Full Catalog & Functionalities (SKU List)

Terminal Modules (TM-E / TM-P) — Passive Backplane Connectors

• 6ES7193-4JA00-0AA0: TM-E15S24-A1 terminal module, 15mm width, 24 VDC, screw-type terminals, for 2/4-channel electronic modules.
• 6ES7193-4CA30-0AA0: TM-E15C24-A1 terminal module, 15mm, cage clamp terminals, 24 VDC, standard I/O modules.
• 6ES7193-4CB30-0AA0: TM-E15C24-A1 terminal module, 15mm, cage clamp, for motor starter electronic modules.
• 6ES7193-4GA00-0AA0: TM-E30S44-A1 terminal module, 30mm width, screw terminals, for 4/8-channel wide-body modules.
• 6ES7193-4GB00-0AA0: TM-E30C44-A1 terminal module, 30mm, cage clamp, for power modules and relay outputs.
• 6ES7193-4HA00-0AA0: TM-P15S23-A1 power terminal module, 15mm, screw terminals, for potential distribution.
• 6ES7193-4HB00-0AA0: TM-P15C23-A1 power terminal module, 15mm, cage clamp, potential group segmentation.
• 6ES7193-4JB00-0AA0: TM-E15S24-A1 terminal module variant, screw-type, for fail-safe (F) electronic modules.
• 6ES7193-4LA00-0AA0: TM-E30S47-A1 terminal module, 30mm, screw terminals, for high-density analog modules.
• 6ES7193-4LB00-0AA0: TM-E30C47-A1 terminal module, 30mm, cage clamp, analog signal modules.
• 6ES7193-4MA00-0AA0: TM-E30S47-A1 terminal module, 30mm, screw, for SSI/incremental encoder interface modules.
• 6ES7193-4NA00-0AA0: TM-E30S47-A1 terminal module, 30mm, screw, for IO-Link master modules.
• 6ES7193-4PA00-0AA0: TM-P30S47-A1 power terminal module, 30mm, screw, for 24 VDC load group supply.
• 6ES7193-4PB00-0AA0: TM-P30C47-A1 power terminal module, 30mm, cage clamp, load group supply segmentation.
• 6ES7193-4RA00-0AA0: TM-E30S47-A1 terminal module, 30mm, screw, for HART-capable analog input modules.

Interface Modules (IM) — Station Head Controllers

• 6ES7151-1AA06-0AB0: IM 151-1 Standard, PROFIBUS DP interface module, max 63 I/O modules per station.
• 6ES7151-3AA23-0AB0: IM 151-3 PN Standard, PROFINET IO interface module, supports MRP and IRT.
• 6ES7151-8AB01-0AB0: IM 151-8 PN/DP CPU, combined CPU and interface module for standalone operation.

Sourcing Hard-to-Find & Obsolete ET 200S Parts

The ET 200S platform entered Siemens Classic lifecycle phase, meaning new feature development has ceased while spare parts supply is maintained. Several terminal module variants — particularly early-revision 6ES7193-4xx00-0AA0 units manufactured before 2008 — carry firmware and hardware revisions that are not forward-compatible with later IM 151-3 PN interface modules without configuration updates.

Quality Control for the ET 200S Range

ET 200S terminal modules function as passive backplane components; their primary failure modes are mechanical (broken cage clamp springs, cracked screw terminal blocks, damaged bus connector pins) and electrical (contact resistance degradation, insulation breakdown between potential groups). DriveKNMS applies the following verification protocol to all ET 200S terminal modules prior to shipment:

• Visual inspection of bus connector pin alignment and terminal block integrity under 10x magnification.
• Contact resistance measurement across all terminal positions (acceptance threshold: less than 50 mOhm per contact).
• Insulation resistance test between adjacent potential groups at 500 VDC (acceptance threshold: greater than 100 MOhm).
• Functional fit-check with a reference electronic module to verify backplane bus engagement and locking mechanism operation.
• Revision label verification against Siemens MLFB database to confirm hardware generation compatibility.
