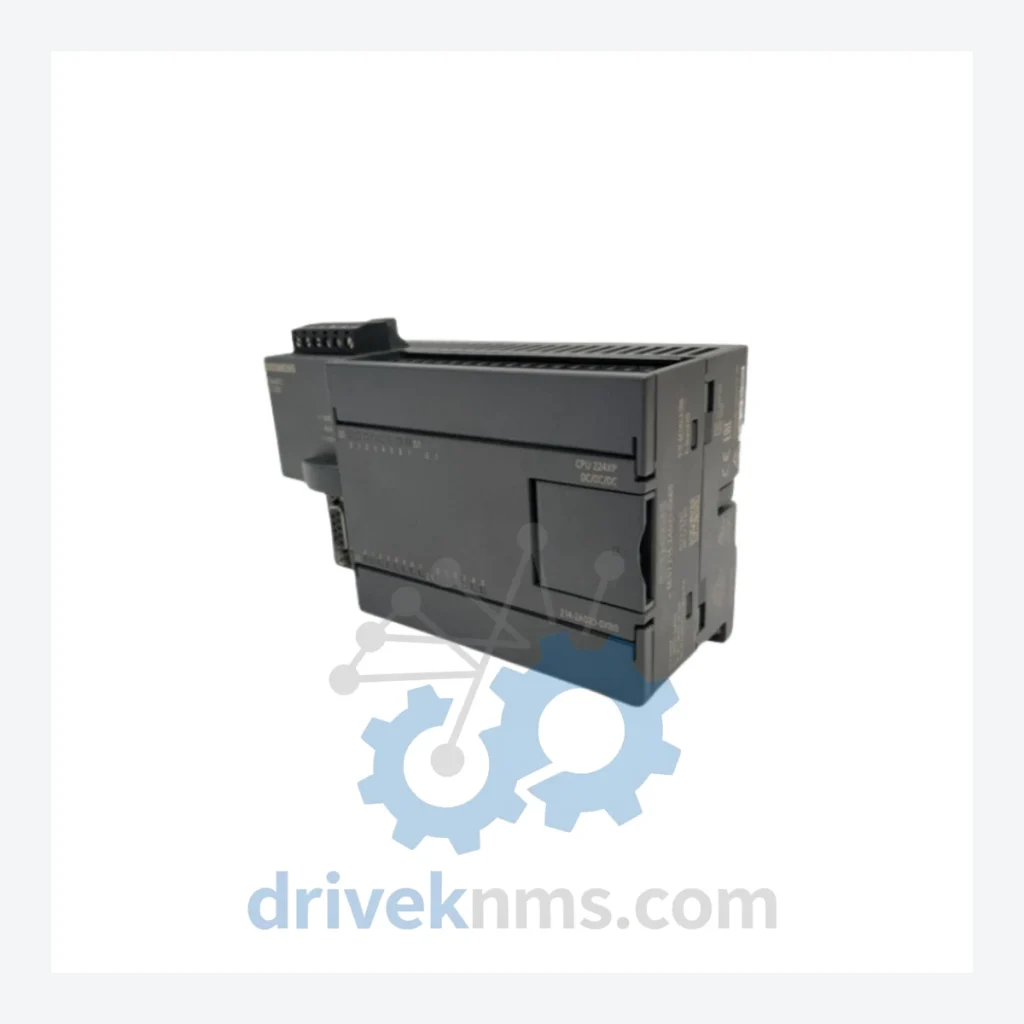

Siemens 6ES7214-2AD23-0XB0 CPU Module – Obsolete S7-200 Spare Part

Technical Dossier

Product Details And Specifications

Siemens 6ES7214-2AD23-0XB0 CPU Module – Obsolete S7-200 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The S7-200 platform was formally discontinued by Siemens in 2017, with extended support ending thereafter. Hundreds of thousands of S7-200 installations remain operational worldwide — in water treatment plants, packaging lines, textile machinery, and building automation systems — because the cost and risk of replacement outweigh the benefit for stable, low-complexity processes.

The CPU 224XP (6ES7214-2AD23-0XB0) is the processing core of these systems. It holds the ladder logic, manages I/O communication, and maintains the real-time control loop. There is no firmware-compatible drop-in replacement from Siemens' current portfolio. Migrating to S7-1200 requires rewriting the entire program in TIA Portal, replacing all associated I/O modules, and in many cases replacing the HMI panels and communication adapters.

For plant managers operating under capital expenditure constraints, the rational decision is to maintain the existing S7-200 infrastructure with verified spare CPUs — and defer migration to a planned shutdown window. A single spare 6ES7214-2AD23-0XB0 held in inventory can prevent an unplanned line stoppage that costs more in lost production in 48 hours than the spare itself costs by an order of magnitude.

How to extend your S7-200 system life by 5 to 10 years:

Condition & Reliability Assurance

Sourcing discontinued industrial hardware from unverified channels carries real operational risk. DriveKNMS applies a 5-step inspection protocol to every unit before it is offered for sale:

1. Visual and mechanical inspection: Housing integrity, connector pin condition, corrosion screening on all exposed contacts and backplane connectors.
2. Electrolytic capacitor assessment: Capacitor aging is the primary failure mode in S7-200 CPUs that have been in storage or light service. Units showing capacitor bulge, leakage, or ESR deviation are rejected.
3. Firmware version verification: The firmware version is read and documented. Compatibility with the customer's existing STEP 7 Micro/WIN version is confirmed prior to shipment where possible.
4. Functional power-on test: The module is powered and communication port response is verified. I/O channel integrity is checked against known-good reference.
5. Final documentation: Each unit ships with an inspection record. Condition grade (New / Refurbished-Grade-A / Tested-Used) is declared explicitly — no ambiguity.

Key Features for System Maintenance

Q: How do I confirm the unit is genuine Siemens and not a counterfeit?
A: All units are sourced through documented supply channels. We provide the unit serial number and firmware version prior to shipment on request, allowing cross-reference against Siemens' product identification guidelines. We do not sell units that fail our authentication screening.

Q: Can you source other S7-200 components — expansion modules, power supplies, HMIs?
A: Yes. DriveKNMS specializes in the full S7-200 ecosystem including EM expansion modules, CP communication processors, TD text displays, and associated power supplies. Contact us with your full bill of materials.
