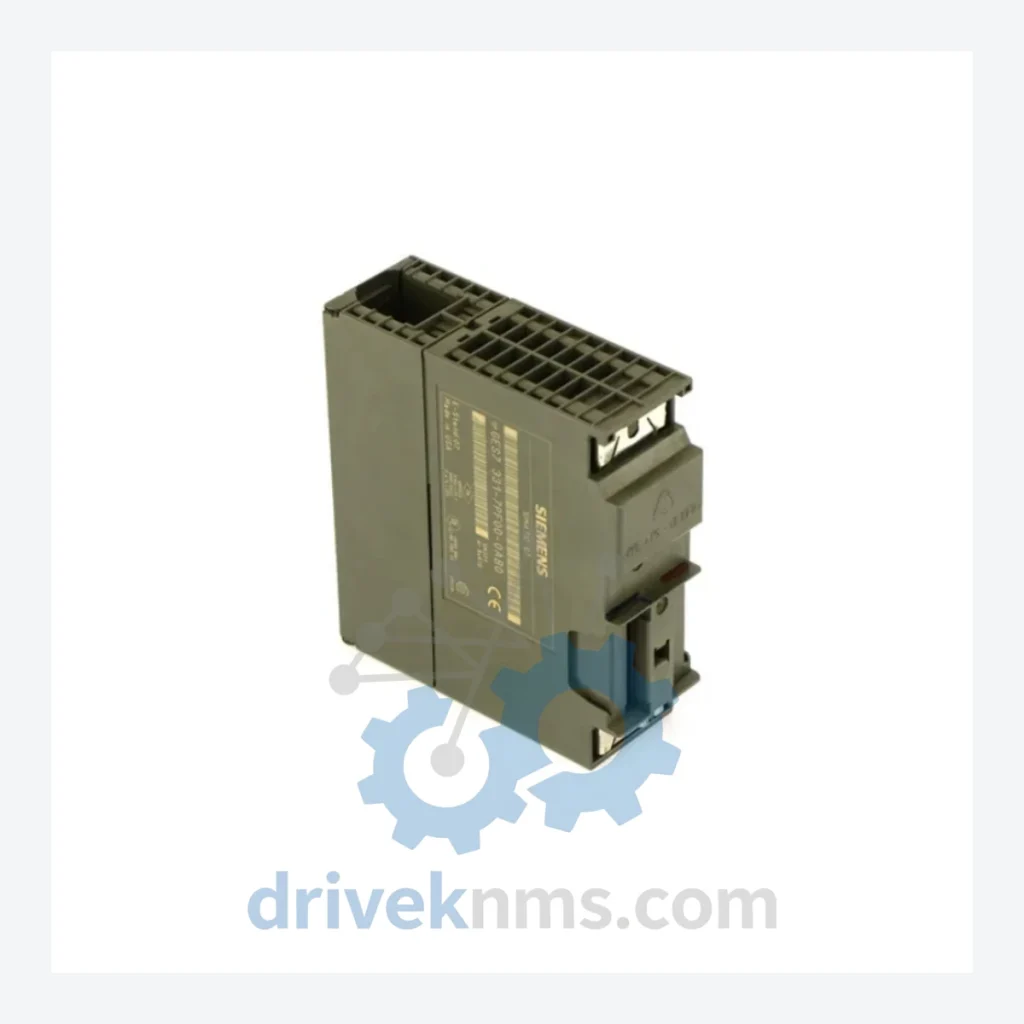

Siemens SIMATIC S7-300 SM 331 Analog Input Modules: 6ES7331-7PF00-0AB0

Name: Siemens SIMATIC S7-300 SM 331 Analog Input Modules: 6ES7331-7PF00-0AB0
Brand: Siemens

Model: 6ES7331-7PF00-0AB0

Brand Siemens

Series S7-300

Model 6ES7331-7PF00-0AB0

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

Siemens SIMATIC S7-300 SM 331 Series Technical Notes

The Siemens SIMATIC S7-300 programmable logic controller platform is one of the most widely deployed modular PLC architectures in global heavy industry. Installed across petrochemical complexes, nuclear power stations, oil refineries, steel mills, and water treatment facilities, the S7-300 system has accumulated decades of field-proven reliability in safety-critical and continuous-process environments. The SM 331 sub-family — Signal Module, Analog Input — represents the primary interface layer between field instrumentation (thermocouples, RTDs, 4–20 mA transmitters, voltage transducers) and the S7-300 CPU. The 6ES7331-7PF00-0AB0 is a high-resolution, 8-channel analog input module supporting ±10 V, ±20 mA, and thermocouple/RTD measurement types, with 15-bit resolution plus sign. It occupies a single slot on the S7-300 rail and communicates via the internal P-bus backplane.

The Evolution of S7-300 SM 331 Architecture

The SIMATIC S7-300 platform was introduced by Siemens in 1993 as a successor to the S5-115U/H series, establishing a modular rack-based architecture that separated CPU, power supply, and signal modules onto a shared backplane bus. The SM 331 analog input family evolved through several hardware revisions:

Early production variants (0AB0 suffix) used discrete ADC components with cycle times in the range of 20–100 ms per channel depending on integration time selection. Mid-generation revisions introduced improved EMC shielding and extended the operating temperature range. Later variants added HART pass-through capability on select models. The S7-300 platform reached its commercial maturity phase circa 2010–2015; Siemens has since positioned the SIMATIC S7-1500 as the strategic successor. However, the installed base of S7-300 systems in legacy plant environments remains substantial, and Siemens has committed to spare parts availability through extended lifecycle programs. For facilities operating S7-300 infrastructure beyond 2030, sourcing certified replacement SM 331 modules from qualified distributors is the primary maintenance strategy.

S7-300 SM 331 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified SM 331 and related S7-300 analog input module range. Each entry reflects a distinct hardware configuration with unique channel count, resolution, or measurement type.

6ES7331-7PF00-0AB0: 8AI, 15-bit+sign, ±10V/±20mA/TC/RTD, single-ended or differential
6ES7331-7PF01-0AB0: 8AI, revised firmware revision of PF00, improved diagnostics
6ES7331-7NF00-0AB0: 8AI, 13-bit+sign, ±10V/±20mA, standard resolution
6ES7331-7NF10-0AB0: 8AI, 13-bit+sign, updated hardware revision, extended temp range
6ES7331-7SF00-0AB0: 8AI, 15-bit+sign, HART-capable channels, process field bus integration
6ES7331-1KF01-0AB0: 8AI, 9-bit+sign, basic resolution, cost-optimized variant
6ES7331-1KF02-0AB0: 8AI, 9-bit+sign, hardware revision 2, updated terminal block
6ES7331-7KB02-0AB0: 2AI, 15-bit+sign, high-accuracy differential input, isolated channels
6ES7331-7RD00-0AB0: 4AI, RTD-only, Pt100/Pt200/Ni100, 4-wire connection
6ES7331-7TB00-0AB0: 4AI, thermocouple-only, Type J/K/E/N/R/S/B, cold junction compensation
6ES7331-7HF01-0AB0: 8AI, high-speed, 1 ms/channel conversion, process control applications
6ES7331-7PE10-0AB0: 8AI, 15-bit+sign, extended diagnostics, wire-break detection
6ES7331-7PF11-0AB0: 8AI, 15-bit+sign, hardware revision 11, RoHS-compliant
6ES7331-7SF10-0AB0: 8AI, HART revision 10, updated HART modem chipset
6ES7331-7NF10-0AB0: 8AI, 13-bit+sign, revision 10 hardware, extended diagnostics
6ES7331-7KF02-0AB0: 8AI, 12-bit+sign, mid-range resolution, 4–20 mA loop-powered inputs

Sourcing Hard-to-Find & Obsolete S7-300 SM 331 Parts

For obsolete SM 331 variants no longer listed in the Siemens standard catalog, DriveKNMS provides documented traceability records and test certificates with each shipment.

Quality Control for the S7-300 SM 331 Range

SM 331 modules present specific test challenges due to their multi-channel ADC architecture, configurable measurement ranges, and backplane bus communication dependency. DriveKNMS applies the following test protocol to all SM 331 units:
