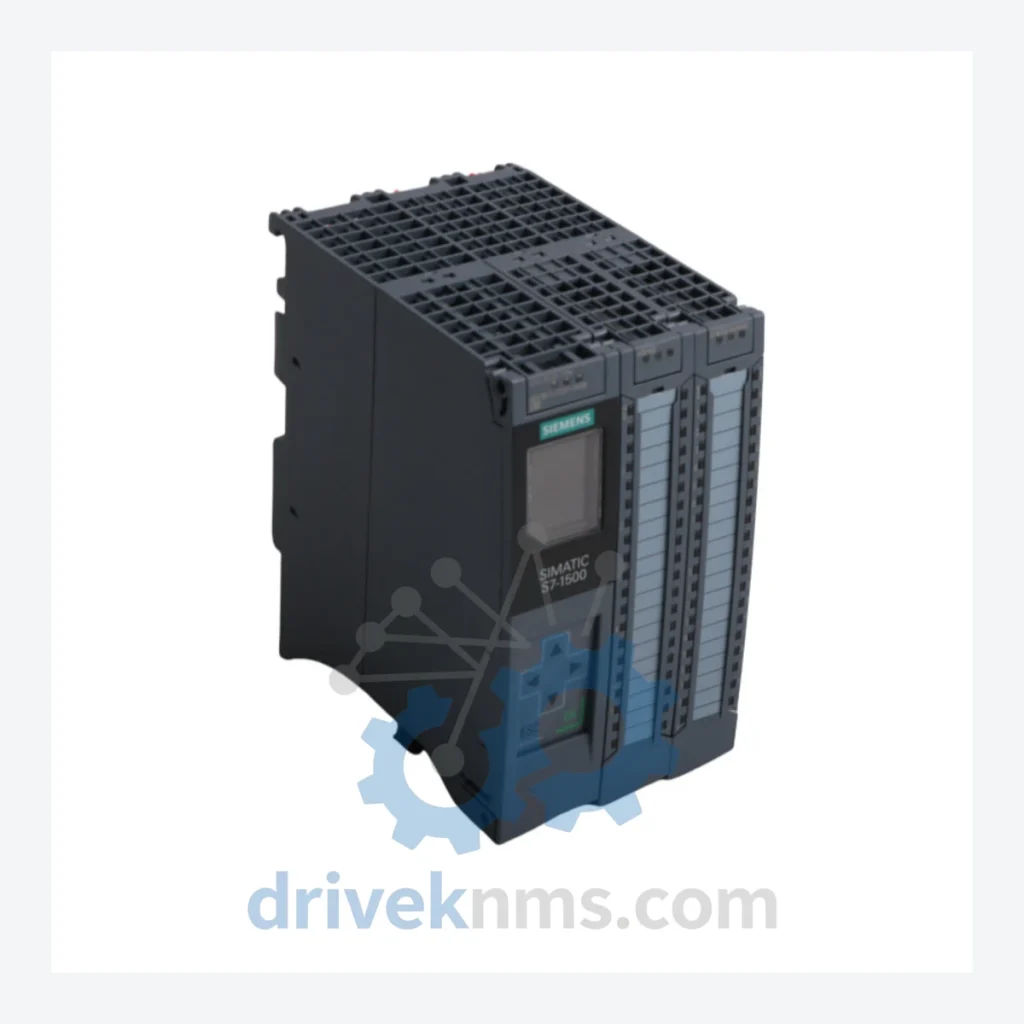

Siemens SIMATIC S7-1500 CPU Modules: 6ES7511-1CK01-0AB0

Technical Dossier

Product Details And Specifications

Siemens SIMATIC S7-1500 Series Technical Notes

The Siemens SIMATIC S7-1500 is the current flagship programmable logic controller platform within the Siemens automation portfolio, succeeding the S7-300 and S7-400 families. It is deployed across the full spectrum of heavy industrial process environments, including petrochemical refineries, nuclear power auxiliary systems, offshore oil & gas platforms, steel rolling mills, and large-scale water treatment facilities. The S7-1500 architecture is characterized by its integrated display panel, high-speed backplane bus (up to 400 MB/s), and native PROFINET IRT support, making it the reference platform for IEC 62443-compliant industrial cybersecurity implementations. Installed base figures place the S7-1500 among the top three DCS/PLC platforms by unit volume in European and Asian heavy industry as of 2024.

The Evolution of S7-1500 Architecture

The S7-1500 platform was introduced in 2012 as a direct architectural successor to the S7-300, addressing the latter's limitations in cycle time, diagnostics depth, and network integration. The initial release covered standard CPUs (CPU 1511, 1513, 1515, 1516, 1517, 1518) with PROFINET as the primary fieldbus. A second generation introduced the Compact CPU subfamily (suffix -1C), which integrates onboard digital and analog I/O directly into the CPU module, reducing panel footprint for mid-range applications. The CPU 1511C-1 PN (6ES7511-1CK01-0AB0) belongs to this Compact generation.

Subsequent architecture expansions added: the F-CPU (Fail-Safe) variants for SIL 2/3 applications; the T-CPU (Technology) variants with integrated motion control for up to 128 axes; the ET 200SP CPU for distributed rack-less deployment; and the S7-1500 Software Controller for PC-based virtualized PLC execution. TIA Portal V13 through V19 covers the full lifecycle of the platform, with V16 introducing OPC UA server functionality natively on all CPUs. Compatibility between early firmware (V1.x) and current TIA Portal versions requires careful version matrix management — a known integration challenge in brownfield upgrade projects.

S7-1500 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked modules within the SIMATIC S7-1500 ecosystem, organized by functional category:

Compact CPUs

• 6ES7511-1CK01-0AB0: CPU 1511C-1 PN; 150 KB work memory; 32 DI/32 DO/5 AI/2 AO onboard; PROFINET IRT
• 6ES7512-1CK01-0AB0: CPU 1512C-1 PN; 250 KB work memory; 32 DI/32 DO/5 AI/2 AO onboard; PROFINET IRT

Standard CPUs

• 6ES7511-1AK02-0AB0: CPU 1511-1 PN; 150 KB work memory; 1x PROFINET interface; standard control tasks
• 6ES7513-1AL02-0AB0: CPU 1513-1 PN; 300 KB work memory; 1x PROFINET; mid-range process control
• 6ES7515-2AM02-0AB0: CPU 1515-2 PN; 500 KB work memory; 2x PROFINET; multi-axis and process applications
• 6ES7516-3AN02-0AB0: CPU 1516-3 PN/DP; 1 MB work memory; PROFINET + PROFIBUS DP; high-end control
• 6ES7517-3AP00-0AB0: CPU 1517-3 PN/DP; 2 MB work memory; high-speed motion and process integration
• 6ES7518-4AP00-0AB0: CPU 1518-4 PN/DP; 4 MB work memory; maximum performance class; OPC UA server

Fail-Safe CPUs (F-CPU)

• 6ES7511-1FK02-0AB0: CPU 1511F-1 PN; SIL 2/3 certified; integrated F-runtime; safety program execution
• 6ES7516-3FN02-0AB0: CPU 1516F-3 PN/DP; Fail-Safe high-end; PROFINET + PROFIBUS DP; SIL 3 capable

Digital Input Modules

• 6ES7521-1BH00-0AB0: SM 521 DI 16x24VDC HF; 16-channel 24 VDC digital input; high-frequency diagnostics
• 6ES7521-1BL00-0AB0: SM 521 DI 32x24VDC HF; 32-channel 24 VDC digital input; channel-level diagnostics

Digital Output Modules

• 6ES7522-1BH01-0AB0: SM 522 DQ 16x24VDC/0.5A HF; 16-channel transistor output; short-circuit protection
• 6ES7522-1BL01-0AB0: SM 522 DQ 32x24VDC/0.5A HF; 32-channel transistor output; high-density panel wiring

Analog Input Modules

• 6ES7531-7KF00-0AB0: SM 531 AI 8x U/I/RTD/TC ST; 8-channel universal analog input; ±10V / 4–20mA / thermocouple

Analog Output Modules

• 6ES7532-5HF00-0AB0: SM 532 AQ 8x U/I HS; 8-channel analog output; high-speed settling; 0–10V / 4–20mA

Communication Modules

• 6ES7541-1AB00-0AB0: CM PtP RS422/485 HF; point-to-point serial communication; Modbus RTU / USS protocol
• 6ES7545-2BA00-0AB0: CM CANopen; CANopen master/slave communication adapter for S7-1500 rack

Power Supply Modules

• 6EP1333-4BA00: SITOP PSU100S 24V/10A; system power supply; 120/230 VAC input; 24 VDC/10 A output

Sourcing Hard-to-Find & Obsolete S7-1500 Parts

Although the S7-1500 platform remains in active production as of 2026, early-generation modules (firmware V1.x, hardware revision 01) are progressively being superseded by revised hardware revisions. Facilities operating original-generation S7-1500 racks — particularly those installed between 2012 and 2016 — face sourcing constraints when replacing individual modules without triggering a full firmware compatibility audit.

Quality Control for the S7-1500 Range

S7-1500 modules present specific test challenges due to their integrated backplane bus interface, onboard PROFINET ASIC, and — in the case of Compact CPUs — the co-located I/O subsystem. DriveKNMS applies the following test protocol to all S7-1500 units processed through our facility:

• Backplane bus continuity test: Verification of all backplane connector pins against Siemens' published pinout specification; isolation resistance >10 MΩ between signal and ground rails.
• PROFINET interface validation: Module is inserted into a live S7-1500 test rack running TIA Portal V17; PROFINET device discovery, IP assignment, and cyclic data exchange are confirmed at 1 ms cycle time.
• CPU firmware version audit: Firmware version is read via TIA Portal and documented. Modules with firmware below V2.0 are flagged for customer notification prior to shipment.
• Onboard I/O functional test (Compact CPUs): All 32 DI channels are stimulated with 24 VDC test signals; all 32 DO channels are loaded with 100 mA resistive loads; all 5 AI channels are driven with calibrated 4–20 mA and 0–10 V sources; AO channels are verified against a calibrated multimeter.
• Thermal burn-in: Units are operated at 55°C ambient for 4 hours under cyclic program load to screen for latent component failures.
• Final inspection: Physical inspection of connector housings, display panel, and memory card slot; original Siemens labeling and serial number verified against Siemens' product authentication portal where applicable.
