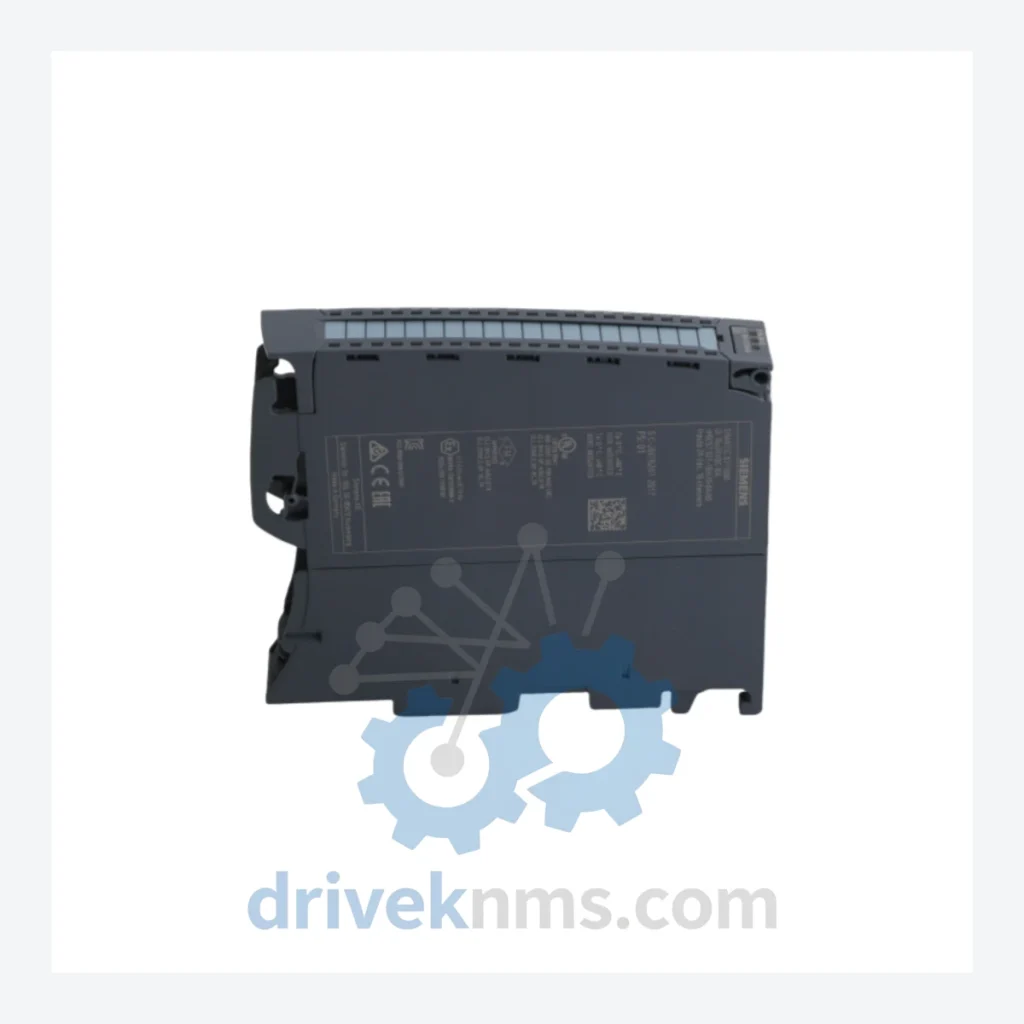

Siemens S7-1500 SM 521 Digital Input Modules – 6ES7521-1BH10-0AA0

Technical Dossier

Product Details And Specifications

Siemens S7-1500 SM 521 Series Technical Notes

The Siemens SIMATIC S7-1500 SM 521 Digital Input module family is a core component of the S7-1500 programmable logic controller platform, which holds a dominant installed base across global heavy industry sectors including petrochemical refineries, nuclear power auxiliary systems, offshore platforms, and large-scale chemical processing plants. The SM 521 series provides 24 VDC and 120/230 VAC digital input capability with configurable channel diagnostics, hardware interrupt support, and isochronous mode operation — features that make it the reference standard for high-availability discrete input acquisition in process automation environments. The 6ES7521-1BH10-0AA0 specifically provides 16 digital inputs at 24 VDC with per-channel diagnostics and is fully integrated into the TIA Portal engineering framework.

The Evolution of S7-1500 SM 521 Architecture

The S7-1500 platform was introduced by Siemens in 2012 as the successor to the S7-300 and S7-400 controller families. The SM 521 digital input modules were designed from the ground up with a new backplane bus architecture (U-connector system) that delivers significantly higher data throughput than the S7-300 SM 321 predecessors. Early SM 521 variants (circa 2013–2015) established the 16-channel and 32-channel 24 VDC baseline. Subsequent hardware revisions introduced enhanced diagnostics granularity, reduced cycle times for isochronous applications, and extended temperature range variants for harsh environments. The series reached maturity around 2018 and is now in a sustained production phase, with Siemens committing to spare parts availability through at least 2035 under its standard product lifecycle policy. Compatibility with ET 200MP distributed I/O stations (using the same SM 521 module range) extended the series' reach into remote I/O architectures, making cross-platform sparing strategies viable for large plant operators.

S7-1500 SM 521 Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified SM 521 digital input module range for the Siemens S7-1500 and ET 200MP platforms. Each entry reflects a distinct hardware configuration.

6ES7521-1BH00-0AB0: SM 521, 16 DI 24 VDC HF, hardware interrupt, isochronous mode capable
6ES7521-1BH10-0AA0: SM 521, 16 DI 24 VDC, per-channel diagnostics, standard cycle time, TIA Portal V13+
6ES7521-1BH50-0AA0: SM 521, 16 DI 24 VDC BA (Basic), reduced diagnostics, cost-optimized variant
6ES7521-1BL00-0AB0: SM 521, 32 DI 24 VDC HF, high-feature, hardware interrupt, isochronous
6ES7521-1BL10-0AA0: SM 521, 32 DI 24 VDC, standard diagnostics, dual 40-pin front connector
6ES7521-1EH00-0AB0: SM 521, 16 DI 24 VDC SRC (source-type input), PNP-compatible
6ES7521-1FH00-0AA0: SM 521, 16 DI 120 VAC, for legacy AC field device integration
6ES7521-1FH00-0AB0: SM 521, 16 DI 120 VAC HF, hardware interrupt support for AC inputs
6ES7521-1GH00-0AB0: SM 521, 16 DI 230 VAC HF, high-voltage AC input, CE/UL rated
6ES7521-7EH00-0AB0: SM 521, 16 DI 24 VDC, F-DI (Fail-safe), SIL 2 / PLd rated for safety applications
6ES7521-7EH00-0AB0: F-DI module, dual-channel safety evaluation, TÜV-certified
6ES7521-7TH00-0AB0: SM 521, 16 F-DI 24 VDC, fail-safe, extended temperature range (-40°C to +70°C)
6ES7521-1BH00-0AA0: SM 521, 16 DI 24 VDC, early production variant, compatible with S7-1500 V1.x firmware
6ES7521-1BL00-0AA0: SM 521, 32 DI 24 VDC, standard, predecessor to BL10 revision
6ES7521-1EL00-0AB0: SM 521, 32 DI 24 VDC SRC HF, source-type 32-channel high-feature
6ES7521-1BH10-0AB0: SM 521, 16 DI 24 VDC, revised front connector design, improved EMC shielding

Quality Control for the S7-1500 SM 521 Range

Each SM 521 module processed by DriveKNMS undergoes a structured test protocol designed around the specific electrical and communication architecture of the S7-1500 backplane bus. Testing procedures include: powered-on functional verification using a reference S7-1500 CPU (CPU 1515-2 PN or equivalent) with TIA Portal V17 diagnostic readout; per-channel input signal injection at rated voltage (24 VDC ±20%) to confirm channel-level diagnostic reporting; backplane U-connector integrity check for pin deformation and oxidation; firmware version identification and compatibility mapping against known CPU firmware matrices; and thermal cycling verification for modules intended for extended temperature environments. Fail-safe (F-DI) variants undergo additional dual-channel evaluation and safety function response time measurement per IEC 62061 test methodology. All test results are logged and supplied with the module shipment as a quality certificate.
