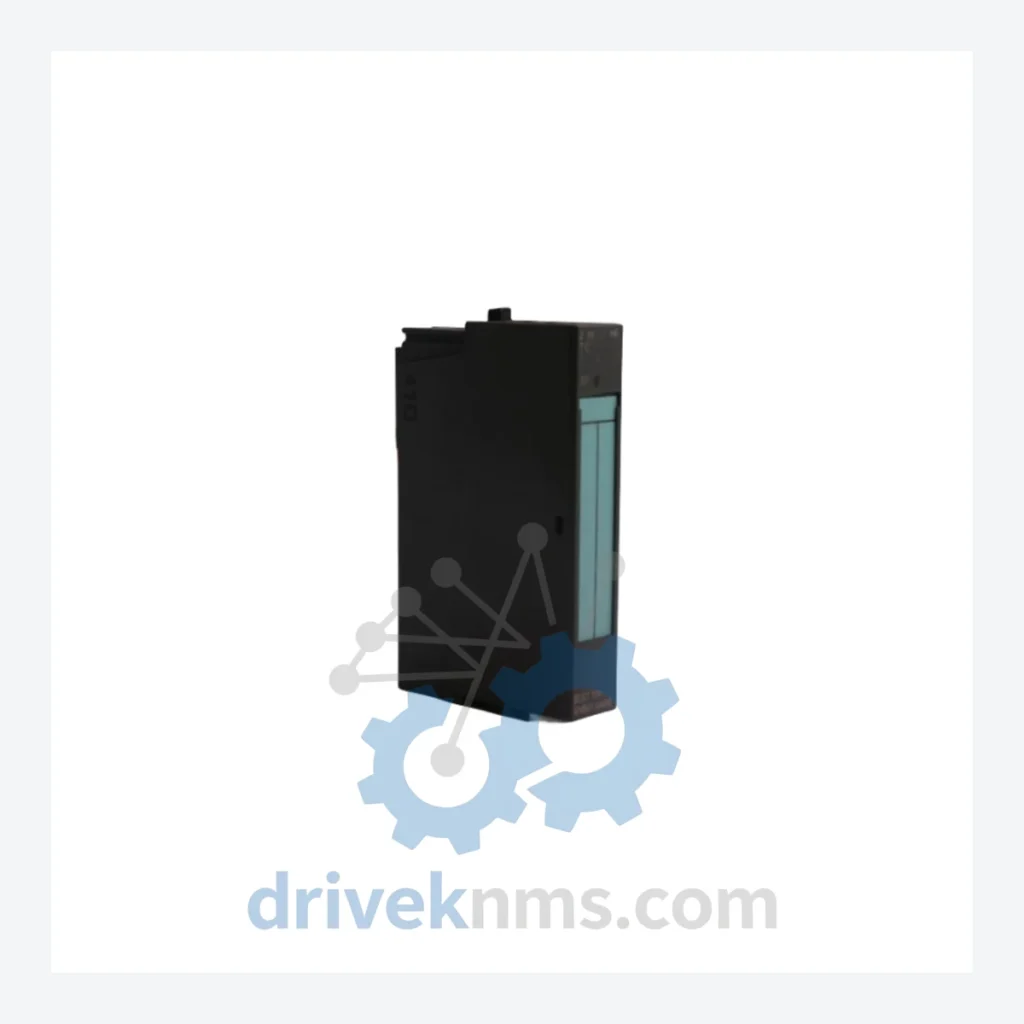

Siemens SIMATIC S7 Modules: 6ES7870-1AA01-0YA1

Technical Dossier

Product Details And Specifications

Siemens SIMATIC S7 Series Technical Notes

The Siemens SIMATIC S7 series represents one of the most widely deployed programmable logic controller (PLC) platforms in global heavy industry. Installed across petrochemical refineries, nuclear power stations, chemical processing plants, offshore platforms, and steel mills, the S7 architecture underpins mission-critical automation infrastructure on every continent. The series encompasses the S7-300, S7-400, S7-1200, and S7-1500 product families, each targeting distinct performance tiers from distributed I/O to high-availability redundant control systems. The 6ES7870-1AA01-0YA1 is a SIMATIC S7 TeleService adapter module, enabling remote diagnostics and programming access over standard telephone or ISDN networks — a category of module that remains operationally critical in legacy plant environments where network infrastructure upgrades are constrained by capital expenditure cycles.

DriveKNMS maintains a dedicated inventory of SIMATIC S7 modules, including active, phased-out, and discontinued part numbers, to support plant operators requiring long-term spare parts availability beyond Siemens' standard product lifecycle support windows.

The Evolution of SIMATIC S7 Architecture

The SIMATIC S7 platform was introduced in 1994 as a successor to the S5 series, establishing a modular rack-based architecture with a standardized backplane bus. The S7-300 family targeted mid-range applications with a compact DIN-rail mounting system and a broad I/O module ecosystem. The S7-400 addressed high-end process control with multi-rack expansion, redundant CPU configurations, and deterministic cycle times suitable for safety-instrumented systems (SIS).

In 2009, Siemens introduced the S7-1200 as a compact controller for standalone machine automation, integrating PROFINET IO natively and replacing the legacy S7-200 line. The S7-1500, launched in 2012, established the current flagship tier with integrated motion control, enhanced cybersecurity (TIA Portal V13+), and a high-speed backplane bus operating at up to 400 Mbit/s. Compatibility between generations is not automatic: S7-300/400 programs require migration tooling (STEP 7 to TIA Portal) and hardware substitution when transitioning to S7-1500. This architectural discontinuity creates sustained demand for original S7-300 and S7-400 spare parts in brownfield plant environments where full system replacement is not economically viable.

TeleService modules such as the 6ES7870-1AA01-0YA1 were developed for the S7-300/400 era and have no direct functional equivalent in the S7-1500 ecosystem, which relies on integrated PROFINET-based remote access solutions instead.

SIMATIC S7 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced part numbers across the SIMATIC S7 product families. Each entry is classified by functional category.

CPU Modules

• 6ES7315-2EH14-0AB0: S7-300 CPU 315-2 PN/DP with integrated PROFINET and PROFIBUS DP interface, 256 KB work memory.
• 6ES7317-2EK14-0AB0: S7-300 CPU 317-2 PN/DP, 1 MB work memory, dual-port PROFINET IO controller.
• 6ES7412-2XK07-0AB0: S7-400 CPU 412-2 PN, 1.4 MB work memory, PROFINET IO controller for large-scale process applications.
• 6ES7416-3XS07-0AB0: S7-400 CPU 416-3 PN/DP, 16 MB work memory, high-availability redundancy-capable processor.
• 6ES7511-1AK02-0AB0: S7-1500 CPU 1511-1 PN, 150 KB program memory, integrated PROFINET IO controller, TIA Portal V14+.
• 6ES7516-3AN02-0AB0: S7-1500 CPU 1516-3 PN/DP, 1 MB program memory, dual PROFINET interfaces plus PROFIBUS DP master.

Digital Input / Digital Output Modules

• 6ES7321-1BL00-0AA0: S7-300 SM 321 DI 32×DC 24V digital input module, 32-channel, sink/source compatible.
• 6ES7322-1BL00-0AA0: S7-300 SM 322 DO 32×DC 24V/0.5A digital output module, 32-channel transistor output.
• 6ES7321-1FF10-0AA0: S7-300 SM 321 DI 8×AC 120/230V digital input module for high-voltage field signals.
• 6ES7322-5HF00-0AB0: S7-300 SM 322 DO 8×AC 120/230V/2A relay output module, 8-channel.

Analog Input / Analog Output Modules

• 6ES7331-7KF02-0AB0: S7-300 SM 331 AI 8×13Bit analog input module, configurable for current, voltage, resistance, and thermocouple inputs.
• 6ES7332-5HB01-0AB0: S7-300 SM 332 AO 4×12Bit analog output module, 4-channel voltage/current output.
• 6ES7336-4GE00-0AB0: S7-300 SM 336 AI 6×13Bit F analog input module, fail-safe certified for SIL 2 applications.

Communication & Interface Modules

• 6ES7870-1AA01-0YA1: SIMATIC S7 TeleService adapter for remote diagnostics and programming via PSTN/ISDN; compatible with S7-300/400 CPU racks.
• 6GK7343-1EX30-0XE0: S7-300 CP 343-1 PROFINET communication processor, 10/100 Mbit/s Ethernet, supports S7 communication and open IE.
• 6GK7443-1EX30-0XE0: S7-400 CP 443-1 PROFINET communication processor, dual-port Ethernet, IT functionality including FTP and email.

Power Supply Modules

• 6ES7307-1EA01-0AA0: S7-300 PS 307 5A regulated power supply, 120/230V AC input, 24V DC/5A output for S7-300 rack.
• 6ES7405-0KA02-0AA0: S7-400 PS 405 10A power supply module, 24V DC input, 5V/10A and 24V/1A output for S7-400 rack.

Sourcing Hard-to-Find & Obsolete SIMATIC S7 Parts

Siemens has formally discontinued multiple S7-300 and S7-400 CPU and I/O module lines, with end-of-repair support dates extending through 2026–2030 depending on the specific part number. For plant operators running continuous processes — refineries, chemical reactors, power generation units — replacing a discontinued module with a current-generation equivalent requires engineering validation, software migration, and in many cases, safety re-certification. The operational cost of this path frequently exceeds the cost of sourcing an original replacement module.

Quality Control for the SIMATIC S7 Range

SIMATIC S7 modules incorporate multi-layer backplane bus communication, ASIC-based I/O processing, and firmware-dependent configuration storage. Standard visual inspection is insufficient to verify functional integrity. DriveKNMS applies a structured test protocol for all S7 modules prior to dispatch:

• Backplane bus continuity test: Verification of K-bus and P-bus signal integrity using dedicated S7-300/400 rack test fixtures.
• CPU firmware and memory validation: Boot sequence verification, EPROM/Flash integrity check, and work memory capacity confirmation.
• I/O channel functional test: Each digital and analog channel is exercised at rated voltage and current to confirm channel-level operability.
• Communication module handshake test: CP and IM modules are tested for correct protocol negotiation (PROFIBUS DP, PROFINET, MPI) using live network test equipment.
• TeleService adapter verification: For modules such as the 6ES7870-1AA01-0YA1, dial-up handshake and STEP 7 remote connection establishment are verified prior to shipment.
• Thermal cycling inspection: Modules sourced from decommissioned plant environments undergo thermal stress inspection to identify capacitor degradation or solder joint fatigue.
