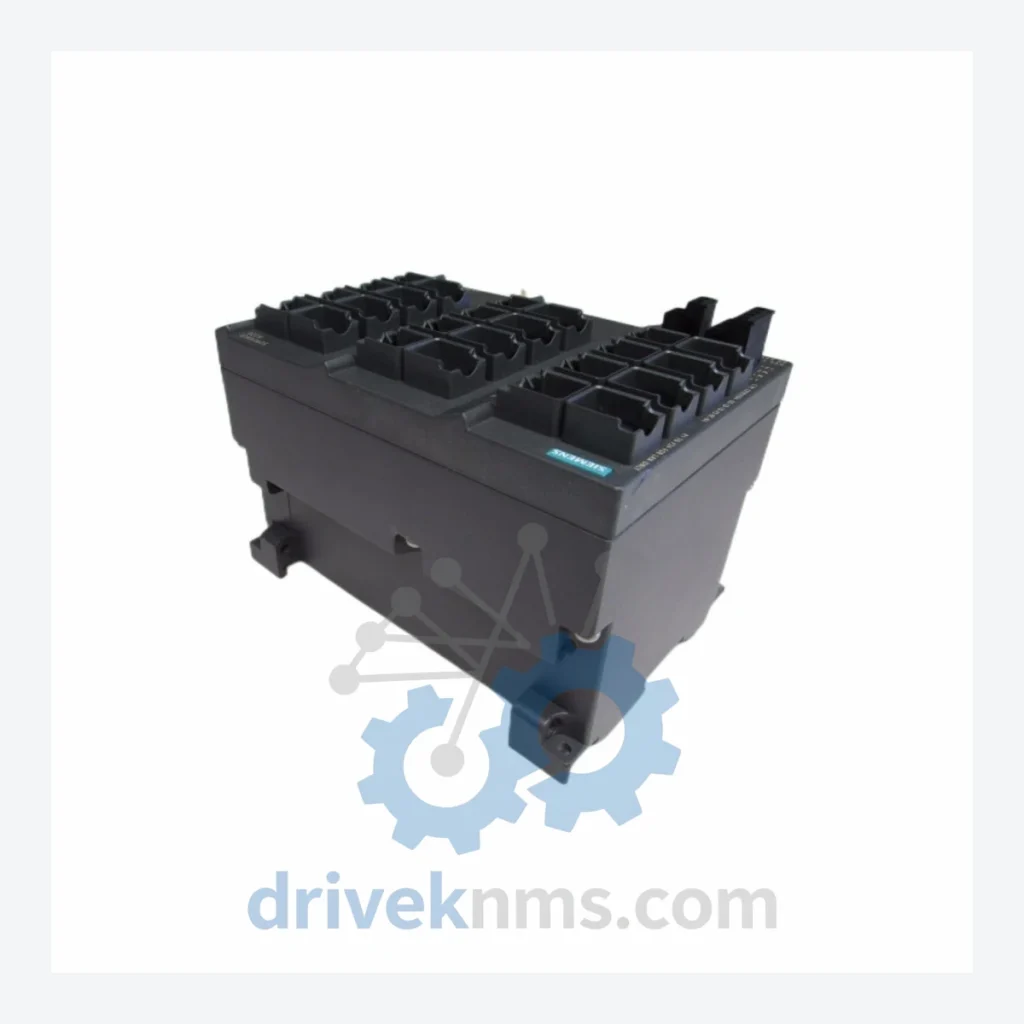

Siemens 6GK5224-0BA00-2AA3 Managed IE Switch – Obsolete SCALANCE X200 Spare Part

The Siemens 6GK5224-0BA00-2AA3 is a managed industrial Ethernet switch from the SCALANCE X200 series, designed for use in demanding plant-floor network environments. This model has been discontinued by Siemens and is no longer available through standard distribution channels. For facilities running SIMATIC S7, WinCC SCADA, or legacy PROFINET-based architectures that depend on this switch for network segmentation and ring redundancy, a single failed unit can cascade into a full production halt.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The SCALANCE X224 (6GK5224-0BA00-2AA3) was a core network component in PROFINET ring topologies deployed throughout the 2000s and 2010s. Its MRP and HRP redundancy capabilities made it the default choice for high-availability network segments in automotive assembly lines, chemical processing plants, and water treatment facilities running SIMATIC S7-based control systems.

Siemens has since migrated its managed switch portfolio to the SCALANCE X-200IRT and XC-200 series. These successors are not drop-in replacements at the network configuration level. Substituting a newer SCALANCE model requires reconfiguration of ring topology parameters, PROFINET device naming, and in some cases, firmware-level protocol adjustments in connected S7 controllers. For a plant operating 24/7, this is not a maintenance task — it is a project, with all the associated cost and risk.

Condition & Reliability Assurance

Discontinued industrial network hardware presents specific failure risks that differ from active-production equipment. Our QA process for the 6GK5224-0BA00-2AA3 addresses the known degradation patterns of this hardware generation through a structured 5-step inspection protocol:

• Step 1 – Electrolytic Capacitor Assessment: Capacitors in units manufactured over a decade ago are at or approaching rated service life. Each unit is inspected for capacitor bulging, electrolyte leakage, and ESR deviation. Units with degraded capacitors are either recapped by qualified technicians or classified as non-serviceable.
• Step 2 – Firmware Version Verification: The 6GK5224-0BA00-2AA3 has a defined firmware revision history. Each unit is checked against known stable firmware versions. Units running unsupported or corrupted firmware are identified and documented prior to shipment.
• Step 3 – Port and Connector Inspection: RJ45 port contacts and DIN rail mounting clips are inspected for corrosion, mechanical deformation, and contact resistance. Ports are tested for link establishment and auto-negotiation function.
• Step 4 – Power Supply and Thermal Inspection: Internal power regulation components are checked for thermal stress indicators. Units are powered and monitored for voltage stability and abnormal heat signatures.
• Step 5 – Functional Network Test: Each unit is bench-tested in a live Ethernet environment. MRP ring configuration, VLAN assignment, and SNMP response are verified. Units that fail any functional test are removed from serviceable inventory.

Key Features for System Maintenance

The primary operational advantage of sourcing an original 6GK5224-0BA00-2AA3 replacement is the elimination of re-engineering cost. A like-for-like module replacement in an existing SCALANCE X224 network ring requires no changes to:

• PROFINET device names or IP address assignments in the S7 controller project
• MRP/HRP ring configuration parameters
• VLAN or QoS settings on adjacent switches
• WinCC or SCADA network topology definitions
• Any field device configuration connected to the affected network segment

The replacement unit is installed, powered, and the network ring is restored — without a single line of engineering change. This drop-in replacement characteristic is the defining value of sourcing original hardware for legacy network infrastructure. The alternative — substituting a different switch model — converts a maintenance task into an engineering project, with all associated cost, documentation, and validation requirements.

Q: How do I confirm the unit is genuine Siemens hardware and not a counterfeit?
A: All units sourced by DriveKNMS are inspected for manufacturer markings, label integrity, and hardware construction consistent with genuine Siemens SCALANCE X200 series production. Units with any indicators of non-genuine origin are rejected from inventory. We provide photographic documentation of the unit upon request prior to purchase.

Q: How long can we realistically extend our SCALANCE X224-based network infrastructure?
A: With a maintained spare parts buffer and proactive replacement of units showing early degradation indicators, a SCALANCE X224-based network can be sustained for 5–10 years beyond the manufacturer's end-of-support date. The limiting factor is spare parts availability, not the hardware's operational capability.
