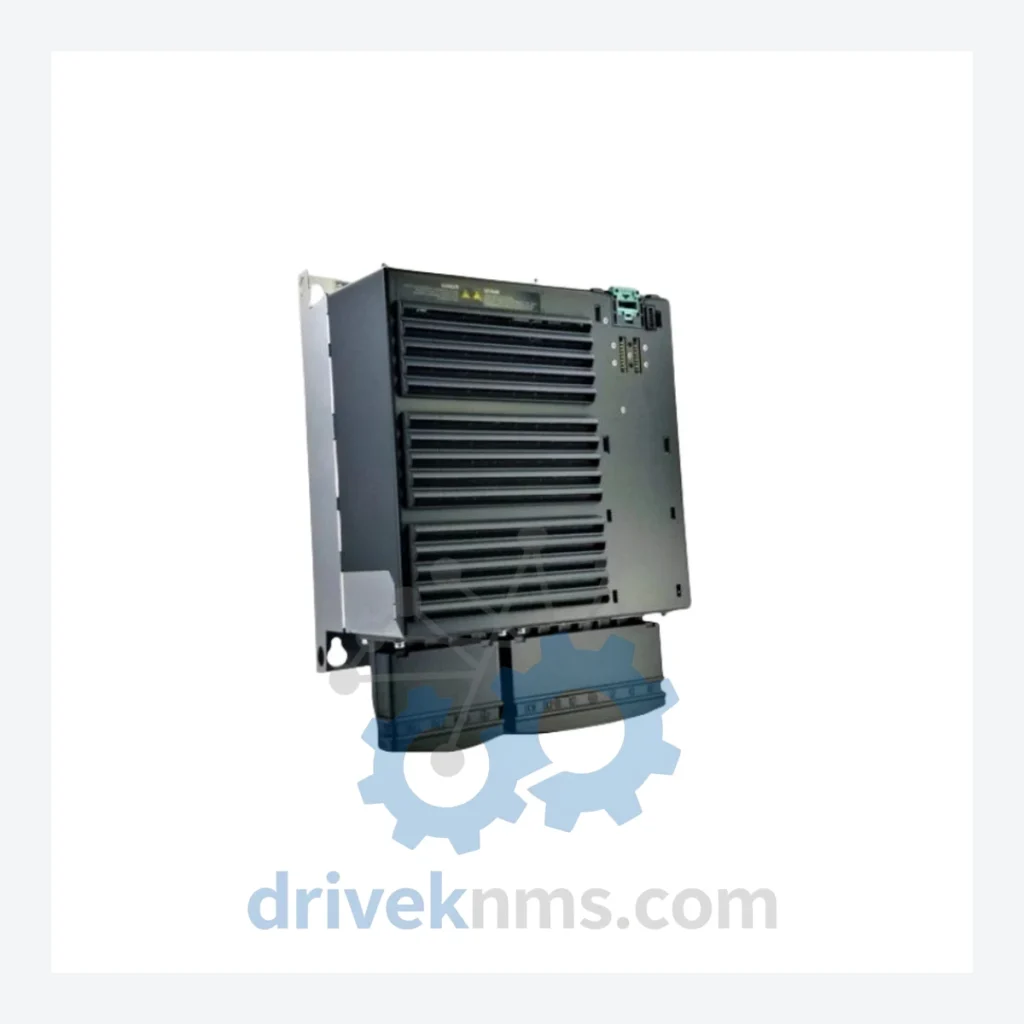

Siemens SINAMICS S120 Power Modules: 6SL3224-0BE33-7AA0

Name: Siemens SINAMICS S120 Power Modules: 6SL3224-0BE33-7AA0
Brand: Siemens

Model: 6SL3224-0BE33-7AA0

Brand Siemens

Series SINAMICS

Model 6SL3224-0BE33-7AA0

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

Siemens SINAMICS S120 Series Technical Notes

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

The Evolution of SINAMICS S120 Architecture

The first-generation Control Units (CU320) used CompactFlash-based firmware storage and DRIVE-CLiQ as the proprietary digital interface for connecting encoders, motor modules, and sensor modules. The CU320-2 DP and CU320-2 PN variants followed, adding PROFIBUS DP and PROFINET IO communication natively. The CU310-2 addressed single-axis applications with an integrated drive topology.

SINAMICS S120 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked components within the SINAMICS S120 ecosystem, organized by functional category:

Power Modules (Booksize)

Motor Modules (Booksize)

6SL3120-1TE21-0AA3: Single Motor Module, 10A continuous output current, booksize, DRIVE-CLiQ interface.
6SL3120-1TE23-0AA3: Single Motor Module, 30A continuous output current, booksize, DRIVE-CLiQ interface.
6SL3120-2TE21-0AA3: Double Motor Module, 2×9A, booksize, dual-axis servo control.
6SL3120-2TE23-0AA3: Double Motor Module, 2×18A, booksize, dual-axis servo control.

Line Modules (Active/Smart)

6SL3130-6AE21-0AB1: Active Line Module, 16kW, booksize, regenerative feedback capability.
6SL3130-6AE23-0AB1: Active Line Module, 36kW, booksize, regenerative feedback capability.
6SL3130-7TE21-6AA3: Smart Line Module, 16kW, booksize, non-regenerative DC bus supply.

Control Units

6SL3040-1MA00-0AA0: CU320-2 DP Control Unit, PROFIBUS DP, supports up to 6 drive objects.
6SL3040-1MA01-0AA0: CU320-2 PN Control Unit, PROFINET IO, IRT capable, supports up to 6 drive objects.
6SL3040-0PA00-0AA0: CU310-2 DP Control Unit, single-axis, PROFIBUS DP, integrated safety functions.

Supplementary / Interface Modules

6SL3055-0AA00-5AA3: Terminal Module TM31, 8 DI / 4 DO / 2 AI / 2 AO, DRIVE-CLiQ connected.
6SL3055-0AA00-5BA3: Terminal Module TM15, 24 bidirectional digital I/O, DRIVE-CLiQ connected.
6SL3060-4AB00-0AA0: DRIVE-CLiQ Hub Module DMC20, extends DRIVE-CLiQ topology on cabinet systems.

Quality Control for the SINAMICS S120 Range

SINAMICS S120 modules present specific test challenges due to their DRIVE-CLiQ communication dependency, shared DC bus topology, and integrated Safety Integrated hardware channels. DriveKNMS applies the following test protocol to all S120 units processed through our facility:
