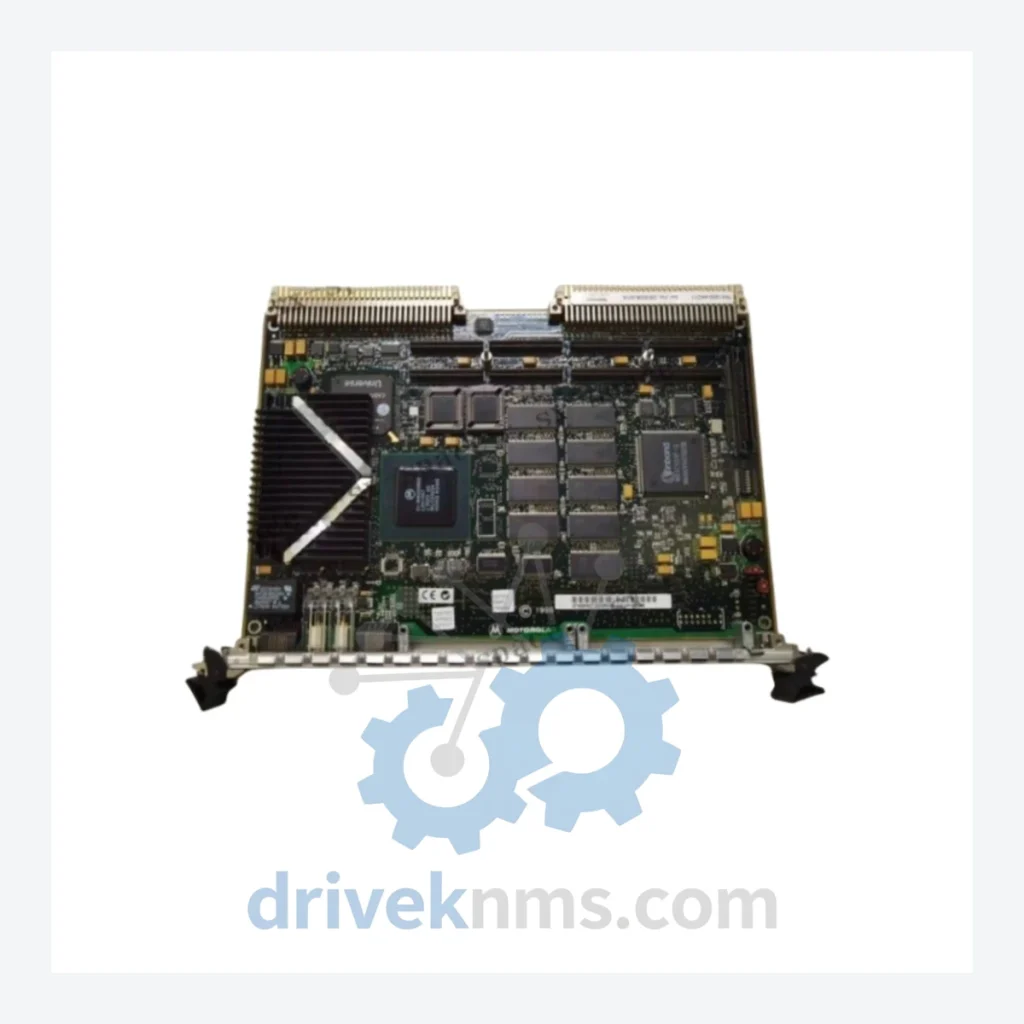

Siemens 7KK1200 Series Modules: 7KK1200-4AD11 C73249-A97-B79-2 Control Board

Technical Dossier

Product Details And Specifications

Siemens 7KK1200 Series: Comprehensive Module Range and Technical Overview

The Siemens 7KK1200 series represents a line of power monitoring and control board assemblies deployed across global heavy industry sectors including petrochemical refineries, nuclear power generation facilities, offshore platforms, and large-scale chemical processing plants. These boards serve as core computational and signal-conditioning substrates within Siemens SENTRON and legacy SIMATIC energy management architectures. Their ruggedized PCB construction, conformally coated assemblies, and wide operating temperature tolerance make them a preferred choice for continuous-duty industrial environments where mean time between failures (MTBF) requirements exceed 100,000 hours. The 7KK1200 platform interfaces with Siemens PAC (Power Automation Controller) infrastructure and supports both analog and digital I/O signal chains, making it a functionally dense module within distributed control system (DCS) and SCADA hierarchies.

📩 Looking for a specific 7KK1200 model? Send your parts list to: sale@driveknms.com

The Evolution of 7KK1200 Architecture

The 7KK1200 control board lineage traces its origins to Siemens’ mid-generation power monitoring hardware platforms developed for integration with SIMATIC S5 and early S7 controller families. Early revisions of the C73249 board assembly (suffix variants -A1x through -A5x) were designed for single-bus backplane communication using proprietary Siemens parallel data buses. As industrial Ethernet and PROFIBUS-DP became dominant field communication standards through the late 1990s and 2000s, subsequent board revisions (suffix -A7x, -A9x) incorporated onboard ASIC-level protocol handling and expanded memory addressing for larger I/O maps.

The C73249-A97-B79-2 revision specifically reflects a mature hardware iteration with enhanced EMC shielding, revised power regulation circuitry, and updated firmware ROM addressing compatibility with SENTRON PAC3200 and PAC4200 metering platforms. Boards in the -B79 sub-revision introduced improved analog front-end filtering for 4–20 mA current loop inputs, directly addressing field-reported noise immunity issues in high-voltage switchgear environments. As of 2026, the 7KK1200 series is in the mature/end-of-active-production phase. Siemens has transitioned new installations toward the SENTRON PAC 7KM series and SIMATIC ET 200SP HA platforms. However, the installed base of 7KK1200 assemblies in legacy DCS environments remains substantial, and long-term maintenance support for these boards remains commercially critical.

7KK1200 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the Siemens 7KK1200 control board and associated module family. Each entry reflects a distinct hardware configuration or revision level:

7KK1200-4AD11 C73249-A97-B79-2: Main control board assembly, analog/digital I/O, SENTRON PAC-compatible, -B79 EMC revision
7KK1200-4AD00: Base control board, standard I/O configuration, no extended communication option
7KK1200-4AD10: Control board with RS-485 MODBUS RTU interface onboard
7KK1200-4AD11: Control board with dual-port communication, PROFIBUS-DP ready
7KK1200-4AD20: Enhanced analog input board, 16-channel 4–20 mA, 12-bit ADC resolution
7KK1200-4AD21: Analog input board with HART protocol pass-through support
7KK1200-4AE00: Digital output module, 24 VDC sourcing, 8-channel relay-isolated
7KK1200-4AE10: Digital output module, 120 VAC solid-state relay, 4-channel
7KK1200-4AF00: Power supply board, 24 VDC regulated, backplane bus feed
7KK1200-4AF10: Redundant power supply board, hot-swap capable, dual-feed input
7KK1200-4AG00: CPU processing board, 32-bit RISC core, onboard SRAM 512 KB
7KK1200-4AG10: CPU board with extended flash memory, firmware field-update capable
7KK1200-4AH00: Communication adapter, PROFIBUS-DP slave, 12 Mbit/s
7KK1200-4AH10: Communication adapter, Industrial Ethernet TCP/IP, RJ45 interface
7KK1200-4AH20: Communication adapter, MODBUS TCP gateway, dual-port Ethernet
7KK1200-4AJ00: Backplane bus terminator and diagnostic module, LED fault indication
7KK1200-4AJ10: Backplane expansion module, 8-slot extension, passive bus bridge
7KK1200-4AK00: Analog output board, 4-channel 4–20 mA, 14-bit DAC resolution
7KK1200-4AK10: Analog output board with loop-powered transmitter simulation mode

Sourcing Hard-to-Find & Obsolete 7KK1200 Parts

DriveKNMS maintains a dedicated inventory program for Siemens 7KK1200 series boards and associated assemblies, with specific focus on C73249 sub-assembly variants that have been discontinued from Siemens’ active production catalog. For facilities operating legacy SENTRON PAC or SIMATIC energy management systems, the unavailability of a single control board can result in extended unplanned downtime with direct financial impact measured in production loss per hour.

DriveKNMS sources 7KK1200 boards through verified secondary market channels, decommissioned plant asset liquidations, and authorized distributor overstock. All units are catalogued by full part number including C-number suffix and B-revision code to ensure exact hardware compatibility. For end-of-life models where no equivalent replacement exists, DriveKNMS provides cross-reference analysis to identify functionally compatible substitute boards within the Siemens 7KM or ET 200SP HA families, including assessment of firmware and backplane bus compatibility. Customers requiring long-term maintenance agreements (LTMAs) for 7KK1200-equipped systems can contact DriveKNMS for multi-year spare parts reservation contracts.

Quality Control for the 7KK1200 Range

The 7KK1200 control board presents specific quality verification challenges due to its multi-layer PCB construction, onboard ASIC components, and backplane bus communication interface. DriveKNMS applies the following test protocol to all 7KK1200 units prior to shipment:

Visual and Physical Inspection: Full board inspection under 10x magnification for solder joint integrity, capacitor ESR degradation indicators, conformal coating delamination, and connector pin condition. C73249 boards are inspected for known failure points including the analog front-end op-amp array and the DC-DC converter section.
Power-On Functional Test: Each board is energized at rated supply voltage (24 VDC ±10%) and monitored for inrush current profile, regulated rail stability (±1% tolerance), and thermal signature using IR thermography during a 30-minute burn-in cycle.
Communication Bus Verification: PROFIBUS-DP and RS-485 interface boards are tested using protocol analyzers to verify correct telegram framing, station address response, and data throughput at rated baud rates.
Analog I/O Calibration Check: Analog input channels are verified against NIST-traceable current sources across the 4–20 mA range. Output channels are loaded and measured for linearity and offset error within datasheet specification.
Firmware Integrity Verification: Where accessible, onboard firmware version is read and logged against the board’s C-number and B-revision to confirm correct software-hardware pairing.
