Siemens A5E Series Power Motherboards: A5E00829966 EOE13080005

Technical Dossier

Product Details And Specifications

Siemens A5E Series Power Motherboards Technical Notes

The A5E prefix (Artikelnummer 5E) is Siemens internal classification for electronic assemblies manufactured for automation and drive systems. Boards in this family are found in SINUMERIK 840D sl, 840Di sl, 828D, and SIMATIC S7-300/400 derivative control cabinets. Their role spans power conditioning, backplane bus arbitration, and inter-module communication bridging.

The Evolution of A5E Power Motherboard Architecture

The A5E power motherboard lineage traces to the early 2000s when Siemens consolidated its SINUMERIK 840D hardware platform onto a unified NCU (Numerical Control Unit) rack architecture. First-generation boards (circa 2001-2006) used discrete power regulation ICs with through-hole components, offering limited thermal headroom and requiring periodic capacitor replacement at 7-10 year intervals.

Post-2014 iterations migrated toward integrated power management ICs (PMICs) with digital feedback loops, enabling real-time voltage telemetry accessible via the NCU diagnostic interface. Compatibility between generations is constrained by backplane connector pinout revisions. Operators maintaining legacy SINUMERIK 840D (non-sl) installations must source exact-revision boards, as the sl (solution line) successor platform uses a physically distinct NCU 7x0 rack that does not accept earlier A5E motherboard form factors.

A5E Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Siemens A5E power motherboard and associated control board ecosystem.

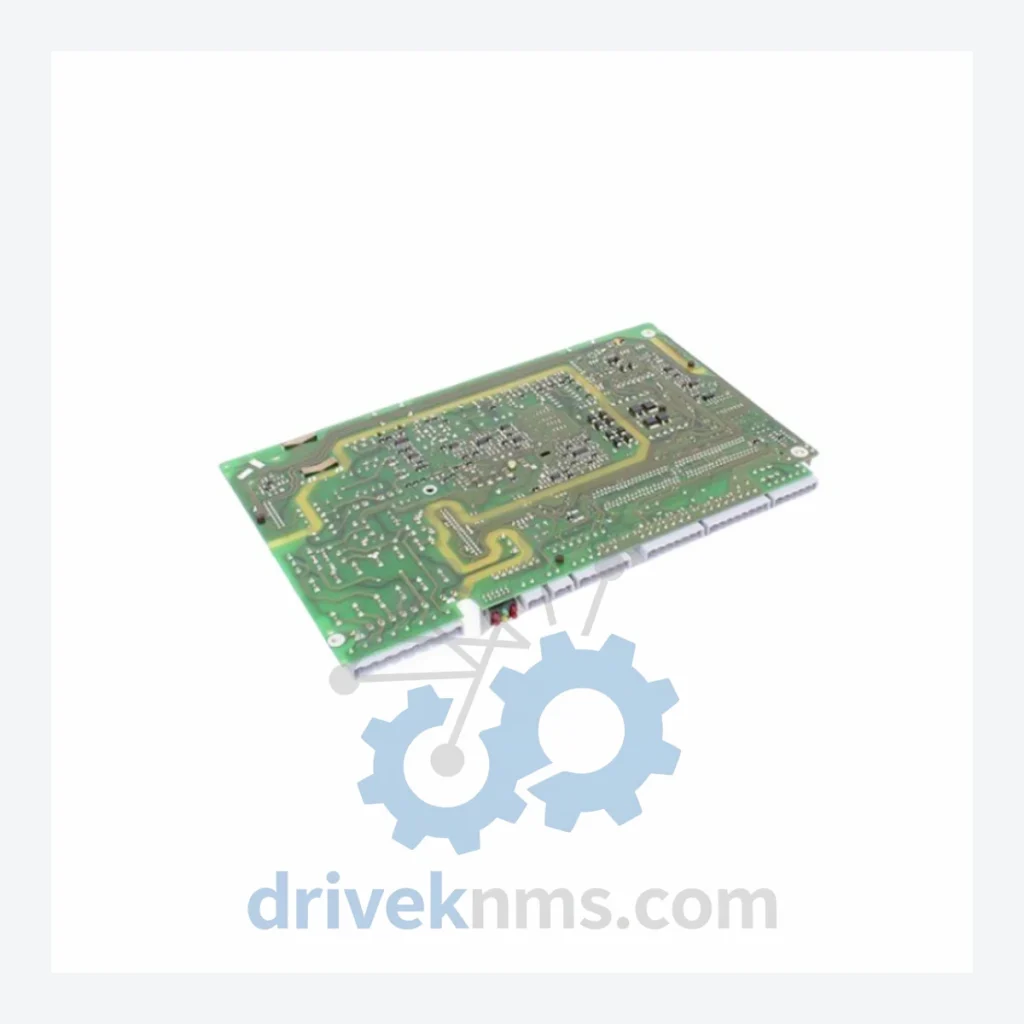

A5E00829966 EOE13080005: DC bus power motherboard for SINUMERIK 840D NCU rack; backplane power distribution and bus arbitration.
A5E00170887: Power supply board for SINUMERIK 840D sl NCU 710.3; 24 VDC input regulation module.
A5E00297803: Main CPU motherboard for NCU 720.3 PN; hosts DRIVE-CLiQ and PROFINET interfaces.
A5E00297804: NCU 730.3 PN main board; extended axis count support with integrated safety functions.
A5E00411018: Operator panel interface board for OP 010/012 series; USB and Ethernet bridge logic.
A5E00432895: Compact Flash carrier and memory interface board for SINUMERIK 828D PPU 240.2.
A5E00829965: Companion power regulation board to A5E00829966; secondary rail output for I/O bus.
A5E01005443: SIMATIC S7-400 power module interface board; 24 VDC/5 VDC dual-rail output.
A5E01161803: Drive module gate driver board for SINAMICS S120 booksize power unit.
A5E01246731: Encoder interface board for SINUMERIK 840D sl; supports TTL, HTL, and EnDat 2.1.
A5E01483562: Safety Integrated logic board for NCU 7x0 series; SIL 2 certified dual-channel monitoring.
A5E02070730: PROFIBUS DP communication board for SIMATIC ET 200M distributed I/O rack.
A5E02625540: Backplane bus termination and power sequencing board for SIMATIC S7-400H redundant rack.
A5E03084823: LCD inverter and display driver board for SINUMERIK 840D sl OP 015A panel.
A5E03456789: Regenerative feedback control board for SINAMICS S120 Active Line Module, 36 kW class.
A5E04352002: NCU 720.3 B PN replacement motherboard; drop-in compatible with 720.3 PN with extended DRAM.
A5E04576123: DRIVE-CLiQ hub board for SINAMICS S120 multi-axis topology; supports up to 8 nodes.

Quality Control for the A5E Series Range

Power motherboards in the A5E series present specific test challenges due to their multi-rail output architecture and tight voltage regulation tolerances (typically +/-2% on 5 VDC rails, +/-5% on 24 VDC auxiliary rails). DriveKNMS applies the following test protocol to all A5E power motherboard units:

Visual and Physical Inspection: Microscopic examination of solder joints on BGA and QFP packages. Identification of capacitor ESR degradation, PCB delamination, and conformal coating integrity.
Power-On Bench Test: Boards are energized on a controlled test jig replicating the SINUMERIK NCU backplane load profile. All output rails are measured under 25%, 50%, 75%, and 100% rated load conditions.
Bus Communication Verification: Where applicable, backplane data bus signal integrity is verified using a logic analyzer against Siemens-published timing specifications.
Thermal Cycling: Units are subjected to a 3-cycle thermal soak (0 degrees C to 55 degrees C) to identify latent cold-solder or thermal-expansion failures.
Final Functional Test: Board is installed in a reference NCU rack and booted through a full SINUMERIK diagnostic cycle. Pass criteria require zero fault codes attributable to the power motherboard subsystem.

All test results are documented and available to customers upon request as part of the DriveKNMS quality dossier.
