Siemens RMS-TSG-TZ-C Static Trip Unit – Obsolete Sentron Series Spare Part

Technical Dossier

Product Details And Specifications

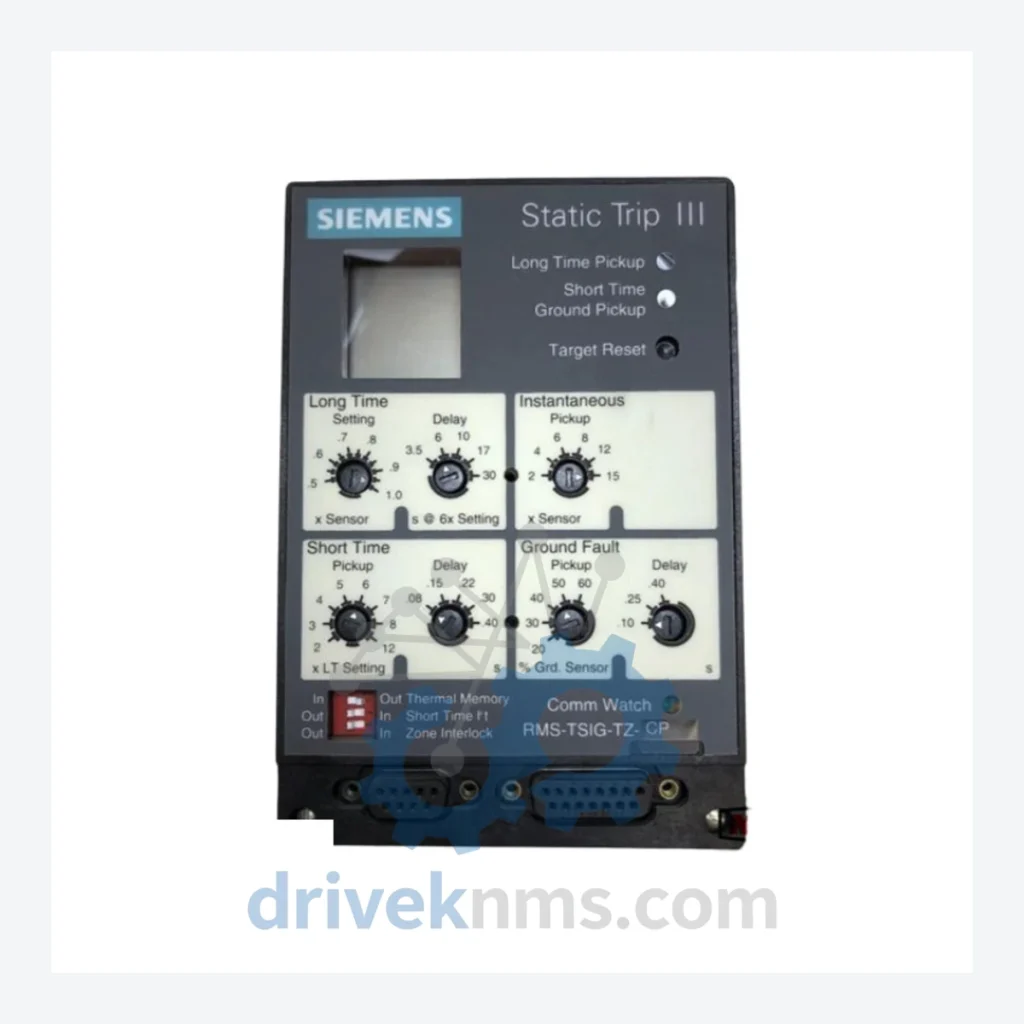

Siemens RMS-TSG-TZ-C Static Trip III Trip Unit – Obsolete Sentron Series Spare Part

When a Static Trip III trip unit fails inside a Siemens Sentron or 3WN/3WT-series air circuit breaker, the consequences extend far beyond a single component. The breaker becomes non-functional. The switchgear panel goes offline. In a facility running continuous production, that sequence can trigger a cascade: emergency shutdowns, process batch losses, and — in the worst case — a capital project to replace an entire low-voltage switchgear lineup that was otherwise performing within specification. Engineering assessments for full switchgear replacement routinely exceed USD $500,000 before installation labor is counted. The RMS-TSG-TZ-C is the component that prevents that outcome. DriveKNMS holds verified physical stock of this discontinued trip unit. Procurement windows for obsolete Siemens trip units are narrow and unpredictable. Secure your spare before the next failure forces the decision.

Technical Specifications

Note: Electrical parameters specific to this part number (rated current range, protection functions, communication options) vary by breaker frame configuration. Contact DriveKNMS with your breaker nameplate data for compatibility confirmation before ordering.

Solving the Discontinued Hardware Crisis

Siemens Static Trip III units were the protection intelligence embedded in a generation of 3WN and 3WT air circuit breakers deployed across power plants, petrochemical facilities, water treatment infrastructure, and heavy manufacturing. These breakers were engineered for 30-year service lives — and many are still operating within that window. The problem is that Siemens discontinued the Static Trip III product line as part of its transition to the Sentron WL and 3VA digital protection platforms. The breaker frame may be mechanically sound. The bus connections, arc chutes, and contact assemblies may have years of service remaining. But a failed trip unit renders the entire assembly non-compliant with protection coordination requirements. Facilities then face a forced choice: source the obsolete trip unit, or replace the entire breaker — and in many cases, the entire panel section — with modern equipment that requires new cable terminations, updated protection relay settings, and re-commissioning by qualified engineers. The RMS-TSG-TZ-C eliminates that forced choice. A direct replacement trip unit restores the breaker to full protective function without disturbing the surrounding infrastructure.

Condition & Reliability Assurance

Obsolete electronic components sourced outside the original manufacturer's supply chain carry real risk. DriveKNMS applies a structured 5-step inspection protocol to every Static Trip III unit before it leaves our facility:

• Step 1 – Electrolytic Capacitor Assessment: Static Trip III units contain electrolytic capacitors in their power supply and timing circuits. Capacitor aging is the primary failure mode in stored electronic trip units. Each unit is inspected for capacitor bulging, leakage, and ESR deviation.
• Step 2 – Firmware and Version Verification: Trip unit firmware version is documented and cross-referenced against the target breaker frame's compatibility matrix. Mismatched firmware versions can cause incorrect protection curves.
• Step 3 – Pin and Connector Corrosion Inspection: All interface connectors and terminal pins are inspected under magnification for oxidation, fretting corrosion, and mechanical deformation. Corroded contacts are the second most common cause of trip unit communication failure.
• Step 4 – Functional Bench Test: Where test equipment is available for the specific trip unit variant, units are bench-tested for overcurrent response and self-diagnostic output.
• Step 5 – Packaging and ESD Protection: Units are packaged in anti-static bags with desiccant and rigid outer packaging to prevent transit damage and moisture ingress.

Key Features for System Maintenance

• Drop-in Replacement: The RMS-TSG-TZ-C is a direct mechanical and electrical replacement for the original trip unit position in compatible Siemens 3WN/3WT breakers. No modification to the breaker frame is required.
• No Reprogramming Required: Protection settings (overcurrent pickup, time-delay, short-circuit instantaneous) are configured via the trip unit's front-panel dials or DIP switches — the same interface your protection engineers already know. There is no PLC programming, no software licensing, and no commissioning software dependency.
• Avoids Engineering Reconstruction Costs: Replacing a failed trip unit with an original-specification spare avoids the engineering hours, cable retermination work, and protection relay re-coordination that a full breaker replacement would require. In facilities with multiple identical breakers, a single spare trip unit provides insurance across the entire population.
• Extends Asset Life 5–10 Years: A switchgear lineup that is mechanically sound but protection-compromised due to a failed trip unit is a stranded asset. Restoring trip unit function with a verified spare extends the economic service life of the entire panel section — deferring capital replacement expenditure by a planning cycle or more. For facilities operating on 5-year capital budgets, that deferral has direct balance-sheet value.

FAQ

Q: What warranty applies to an obsolete trip unit like the RMS-TSG-TZ-C?
A: DriveKNMS provides a 90-day warranty against defects in the unit as supplied. Given the obsolete status of this component, we recommend purchasing a minimum of two units if your facility operates multiple compatible breakers — one for immediate installation and one as a long-term spare.

Q: How do I know the unit is new or quality-refurbished, not a counterfeit?
A: We document the physical condition, serial number, and inspection results for each unit. Upon request, we can provide inspection photographs and condition reports before shipment. We do not relabel, remarked, or misrepresent the condition of any component.

Q: Should I stock multiple units as long-term spares?
A: For any facility with more than two compatible breakers in service, holding at least one spare trip unit is a defensible maintenance strategy. The RMS-TSG-TZ-C is no longer in production. Each unit that leaves the secondary market is one fewer available for future procurement. The cost of a spare trip unit is a fraction of one hour of unplanned production downtime in most industrial settings.

Q: Can DriveKNMS source other obsolete Siemens trip units or breaker components?
A: Yes. Contact us with your part number and quantity requirement. We maintain sourcing relationships across the global secondary market for Siemens, ABB, Schneider, Eaton, and other major industrial automation and power distribution brands.
