Siemens RMS-TSIG-TZ-C Static Trip Module – Obsolete RMS Series Spare Part

Technical Dossier

Product Details And Specifications

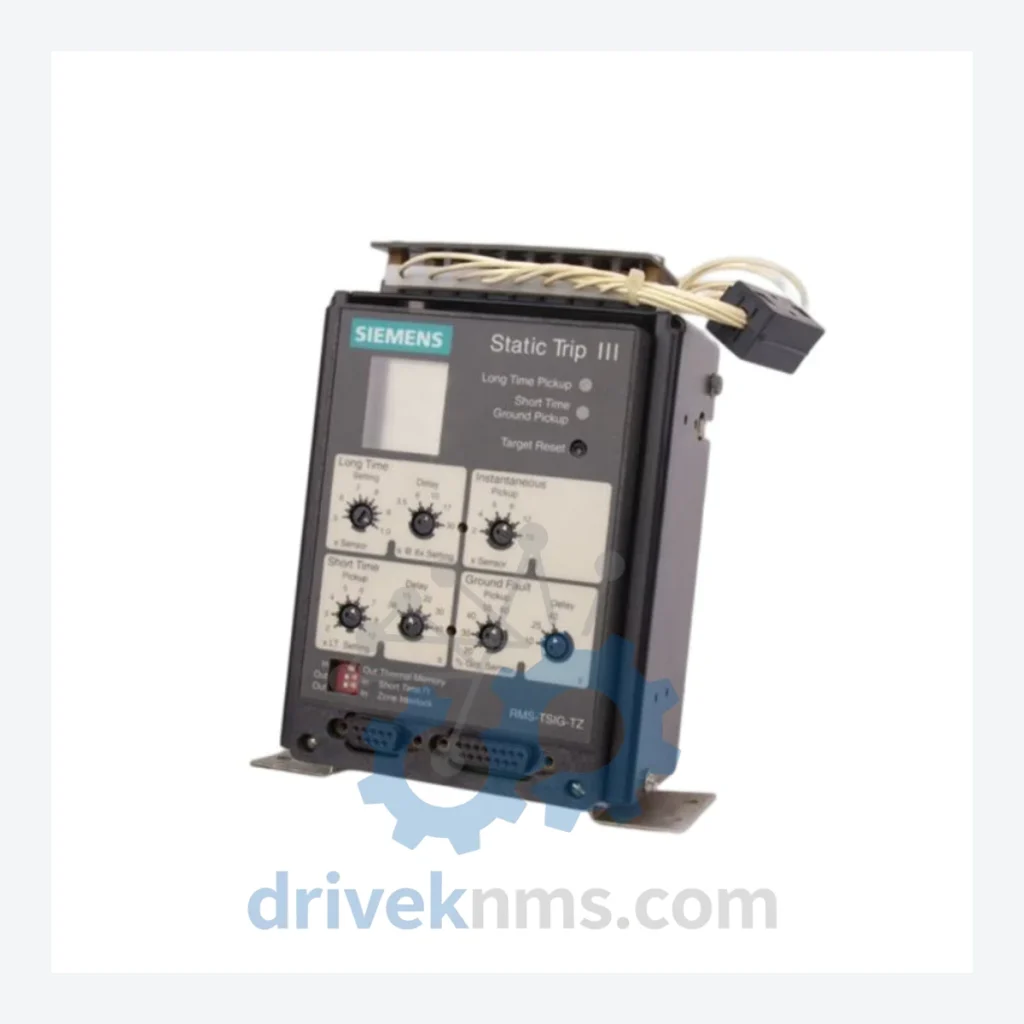

Siemens RMS-TSIG-TZ-C Static Trip Module – Obsolete RMS Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as rated current, trip thresholds, and communication interface specifications vary by breaker configuration. Confirm your breaker nameplate data before ordering. DriveKNMS technical staff can assist with cross-referencing.

Solving the Discontinued Hardware Crisis

The Siemens RMS-TSIG-TZ-C static trip module is the intelligence layer of the circuit breaker. It governs overload, short-circuit, and ground-fault protection functions. In a legacy Siemens RMS or WL breaker, this module is not a generic component — it is calibrated to the breaker's frame rating and protection coordination scheme. There is no universal substitute.

Facilities that built their electrical distribution infrastructure on Siemens RMS-series switchgear in the 1990s and 2000s now face a structural supply problem. The OEM has moved its product line forward. Replacement breakers use different trip unit architectures, different communication protocols, and different physical form factors. Swapping a failed RMS-series breaker for a current-generation unit is not a like-for-like exchange — it is a partial system redesign.

Extending the service life of existing Siemens RMS-series switchgear by 5 to 10 years through targeted spare parts management is a documented and defensible asset management strategy. It defers capital expenditure, preserves existing protection coordination documentation, and avoids the commissioning risk inherent in new switchgear installation. The RMS-TSIG-TZ-C is one of the components that makes that strategy viable.

Condition & Reliability Assurance

Discontinued electronic modules sourced outside the OEM supply chain require a structured verification process. DriveKNMS applies a 5-step inspection protocol to every RMS-TSIG-TZ-C unit before it is offered for sale:

• Step 1 – Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mode in static trip electronics stored beyond their design service life. Each unit is inspected for capacitor bulging, electrolyte leakage, and ESR deviation. Units with degraded capacitors are not offered as functional spares.
• Step 2 – Firmware Version Verification: Where applicable, firmware revision is confirmed and documented. Compatibility with the target breaker generation is verified prior to shipment.
• Step 3 – Pin and Connector Inspection: All interface pins and connector housings are examined under magnification for corrosion, mechanical deformation, and contact resistance anomalies. Corroded contacts are a common failure point in modules that have been stored in non-climate-controlled environments.
• Step 4 – Functional Bench Test: Units are powered and tested against known-good reference parameters where test equipment is available for the platform.
• Step 5 – Packaging and Documentation: Units are packaged in anti-static materials with inspection records. Lot traceability documentation is provided where available.

Units that do not pass all applicable steps are not listed as serviceable inventory.

Key Features for System Maintenance

• Drop-in Replacement: The RMS-TSIG-TZ-C installs directly into the existing breaker frame. No frame modification, no new cable terminations, no changes to the switchgear enclosure.
• No Reprogramming Required: Protection settings are retained in the breaker's existing configuration. Replacing the trip module does not require re-entry of protection coordination parameters in standard replacement scenarios.
• Avoids Engineering Redesign Cost: Maintaining the existing breaker avoids the arc flash study updates, cable ampacity recalculations, and protection coordination reviews that accompany a breaker frame change.
• Preserves Existing Documentation: Single-line diagrams, maintenance records, and protection relay coordination studies remain valid. No revision cycle required.
• Reduces Commissioning Risk: A module swap carries substantially lower commissioning risk than a new breaker installation in an energized switchgear lineup.

Q: Can DriveKNMS assist with identifying the correct trip module variant for our breaker?
A: Yes. Provide your breaker nameplate data — frame rating, trip unit type, and any existing module part numbers — and our technical team will confirm compatibility before you commit to a purchase.
