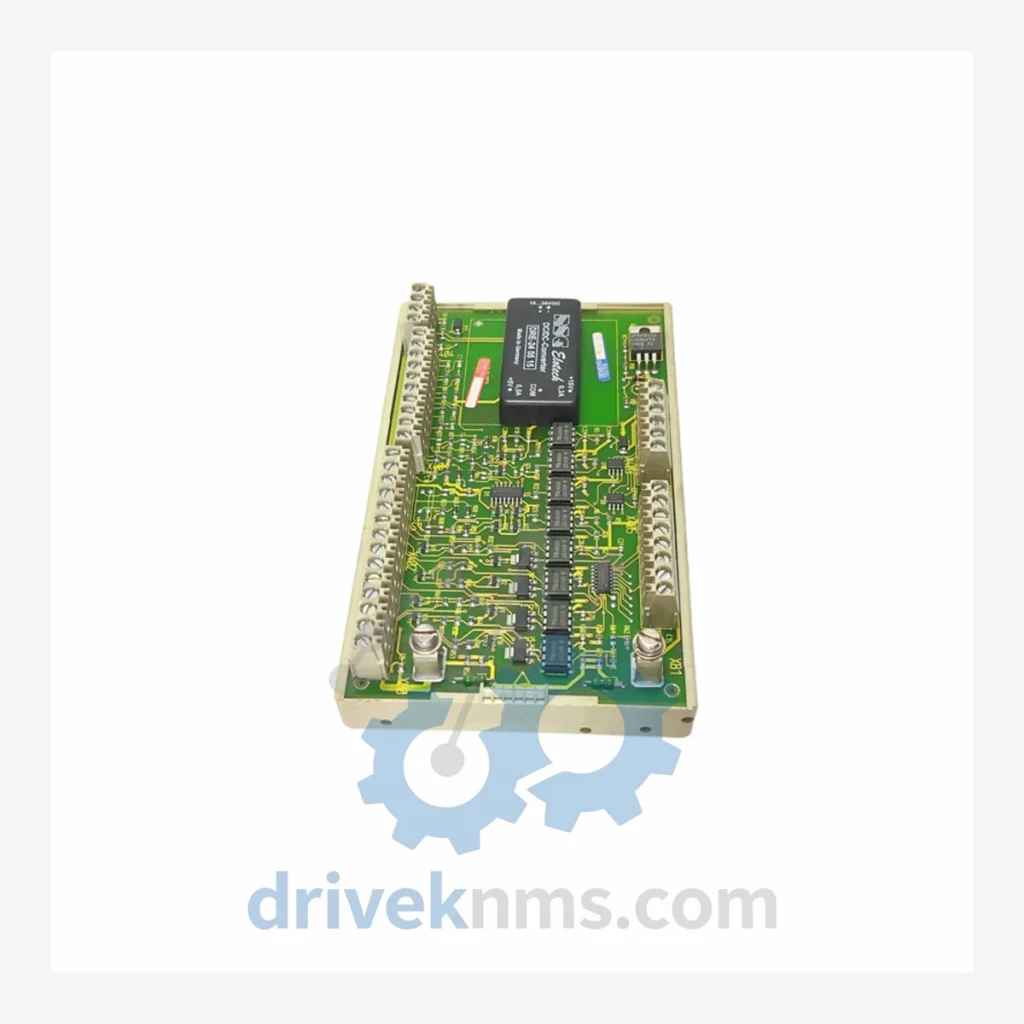

Siemens SIMOVERT MASTERDRIVES 6SE70 Interface Modules: 6SE7090-0XX84-3DB0

Technical Dossier

Product Details And Specifications

Siemens SIMOVERT MASTERDRIVES 6SE70 Series: Comprehensive Module Range and Technical Overview

The Siemens SIMOVERT MASTERDRIVES 6SE70 series represents one of the most widely deployed AC drive and motion control platforms in global heavy industry. Installed across petrochemical refineries, nuclear power auxiliary systems, offshore platforms, steel rolling mills, cement plants, and municipal water treatment facilities, the 6SE70 architecture established a benchmark for modular, scalable variable-speed drive design throughout the 1990s and 2000s. Its distributed I/O philosophy, standardized backplane bus (SCB/SCom), and compatibility with PROFIBUS-DP made it a preferred platform for large-scale DCS integration projects. Despite the series entering its end-of-production phase, the installed base remains substantial, and demand for spare interface boards, communication adapters, and control modules continues across maintenance, repair, and overhaul (MRO) procurement channels globally.

The Evolution of 6SE70 Architecture

The SIMOVERT MASTERDRIVES 6SE70 platform was introduced by Siemens in the early 1990s as a successor to the SIMOVERT P and SIMOVERT A families. The architecture was built around a modular rack system with a dedicated backplane bus, allowing engineers to configure drives for Vector Control (VC), Motion Control (MC), and Economy (EC) operating modes from a common hardware base. Early variants used the CU1 and CU2 control units with analog setpoint interfaces. The mid-generation introduced the CU3 and associated CUVC (Control Unit Vector Control) boards, which added closed-loop flux vector control and encoder feedback capability via the SBP (Sensor Board Pulse encoder) and SBM (Sensor Board Motor encoder) modules. Communication was progressively expanded through the SCB1 (Serial Communication Board 1) for USS protocol, SCB2 for peer-to-peer fiber-optic links, and the CBD (Communication Board DeviceNet) and CBP (Communication Board PROFIBUS) adapters. The interface board family — including the 6SE7090-0XX84-3DB0 — serves as the critical signal routing layer between the control unit and the power section, managing analog I/O conditioning, digital I/O isolation, and internal bus arbitration. As the series transitioned into its mature phase post-2010, Siemens introduced the SINAMICS S120 as the designated successor platform, with migration guides available for 6SE70-to-S120 conversion. However, direct hardware replacement is not always feasible in legacy installations, sustaining long-term demand for original 6SE70 interface and control modules.

6SE70 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced components within the Siemens SIMOVERT MASTERDRIVES 6SE70 series. Each entry reflects the module's primary functional role within the drive system.

Interface & Signal Boards

• 6SE7090-0XX84-3DB0: Interface board for MASTERDRIVES VC/MC; routes analog/digital I/O between CU and power section.
• 6SE7090-0XX84-0KF0: Interface board variant for Economy (EC) series drives; reduced I/O channel count.
• 6SE7090-0XX84-2FK0: Interface board with extended terminal strip for high-density I/O applications.

Control Units (CU)

• 6SE7021-0ES87-1FB0: CUVC control unit for Vector Control; supports encoder feedback and closed-loop speed regulation.
• 6SE7022-6EC87-1FB0: CUVC variant for medium-power VC drives; integrated PID controller.
• 6SE7031-2HF87-1FB0: CUVC for high-power VC applications; dual encoder input channels.
• 6SE7090-0XX84-0AB0: CU base board for Economy drives; open-loop V/f control only.

Communication Boards (CB)

• 6SE7090-0XX84-0FF5: CBP2 — PROFIBUS-DP communication board; supports DPV1 acyclic services.
• 6SE7090-0XX84-0FE0: CBD — DeviceNet communication adapter; 125/250/500 kbps selectable.
• 6SE7090-0XX84-0FF0: CBP — PROFIBUS-DP (first generation); cyclic data exchange only.
• 6SE7090-0XX84-0FG0: CAN communication board for CANopen DS402 drive profile.

Sensor & Encoder Boards (SB)

• 6SE7090-0XX84-0BC0: SBP — Sensor Board Pulse encoder; HTL/TTL incremental encoder input, 5V/24V.
• 6SE7090-0XX84-0BD0: SBM — Sensor Board Motor; resolver interface for synchronous motor feedback.
• 6SE7090-0XX84-0BF0: SBR — Sensor Board Resolver; high-resolution resolver-to-digital conversion.

Serial Communication Boards (SCB)

• 6SE7090-0XX84-0BC1: SCB1 — Serial Communication Board 1; USS protocol over RS-485, peer-to-peer.
• 6SE7090-0XX84-0BC2: SCB2 — Serial Communication Board 2; fiber-optic peer-to-peer link for noise-immune environments.

Power Supply & Auxiliary

• 6SE7090-0XX84-0GA0: Internal 24V SMPS board for control electronics; input 400–480V AC.
• 6SE7090-0XX84-0HA0: Fan control and thermal monitoring board; NTC/PTC sensor interface.

Sourcing Hard-to-Find & Obsolete 6SE70 Parts

The SIMOVERT MASTERDRIVES 6SE70 series reached end-of-production status, with Siemens formally discontinuing new manufacture of most control and interface modules. Standard distribution channels no longer carry stock for the majority of 6SE70 sub-assemblies, including the 6SE7090-0XX84-3DB0 interface board. DriveKNMS maintains a dedicated inventory of tested, pull-from-service, and new-old-stock (NOS) 6SE70 components sourced through certified industrial surplus channels. Our procurement network spans decommissioned plant equipment in Europe, North America, and Asia-Pacific, enabling us to fulfill single-unit emergency replacement orders as well as bulk MRO contracts. For facilities operating 6SE70 drives in critical process loops — where a drive failure results in unplanned downtime measured in production loss per hour — DriveKNMS provides expedited sourcing with typical lead times of 3–10 business days for interface boards and control units. Long-term service agreements (LSA) are available for facilities requiring guaranteed stock reservation of specific 6SE70 part numbers over 12–36 month periods.

Quality Control for the 6SE70 Range

The 6SE70 interface board family, including the 6SE7090-0XX84-3DB0, presents specific test challenges due to its role as the signal conditioning and bus arbitration layer within the drive. DriveKNMS applies a structured test protocol to all 6SE70 interface and control modules prior to dispatch. Each board undergoes visual inspection for capacitor ESR degradation, IGBT gate driver trace integrity, and backplane connector pin condition. Functional testing is performed on a live 6SE70 drive test bench, verifying analog input scaling (0–10V, 4–20mA channels), digital I/O isolation voltage, and internal bus communication handshake with a reference CUVC control unit. Communication boards (CBP2, CBD, SCB1/2) are tested for protocol-layer response using a PROFIBUS/DeviceNet analyzer. All units are issued a test report with pass/fail criteria documented against Siemens factory acceptance test (FAT) parameters. Boards that pass are shipped with ESD-protective packaging and a 12-month functional warranty.
