Siemens SINUMERIK 840D 6FC5 Modules - 6FC5114-0AA01-0AA2

Technical Dossier

Product Details And Specifications

Siemens SINUMERIK 840D 6FC5 Series Technical Notes

The 6FC5 module family encompasses the full hardware stack of the SINUMERIK 840D: power supply units, NCU controller boards, I/O expansion modules, communication adapters, operator panel interfaces, and memory cards. Each module is engineered for 24/7 industrial duty cycles and is rated for operation in environments with high EMI, vibration, and thermal cycling — conditions standard in petrochemical and heavy manufacturing facilities.

The Evolution of SINUMERIK 840D / 6FC5 Architecture

The SINUMERIK 840D was introduced in 1994 as the successor to the 840C, representing a fundamental shift from dedicated hardware CNC to a PC-based open architecture. The original NCU 571 through NCU 573 controller boards (6FC5357-0BB33-0AE3 and related variants) used Intel 486 and early Pentium-class processors running a real-time OS kernel alongside the SIMATIC S7-300 PLC integrated on the same module.

Between 1998 and 2004, Siemens expanded the 6FC5 catalog significantly with higher-density I/O modules, PROFIBUS-DP communication adapters, and the introduction of the 840Di variant — a PC-based derivative using standard industrial PCs with SINUMERIK runtime software. The 840D powerline (840D pl) generation, introduced around 2006, brought 32-bit RISC processors, expanded axis count support (up to 31 axes/spindles), and improved PROFINET readiness.

The SINUMERIK 840D sl (solution line), introduced from 2006 onward and based on the 6FC5 3xx series NCU modules, represents the current-generation platform. It uses the DRIVE-CLiQ communication protocol for drive integration, supports Safety Integrated functions (SIL 2 / PLe), and is compatible with SINAMICS S120 drive systems. Many 840D powerline modules are now in the mature-to-end-of-life phase, making reliable spare parts sourcing critical for facilities running legacy installations.

Compatibility note: 6FC5 powerline and solution line modules are not interchangeable. Backplane bus protocols, firmware versions, and NCU software licenses are generation-specific. Always verify the NCU software version (SW 6.x for powerline, SW 2.x/4.x/7.x for solution line) before ordering replacement modules.

SINUMERIK 840D / 6FC5 Full Catalog & Functionalities (SKU List)

Power Supply Modules

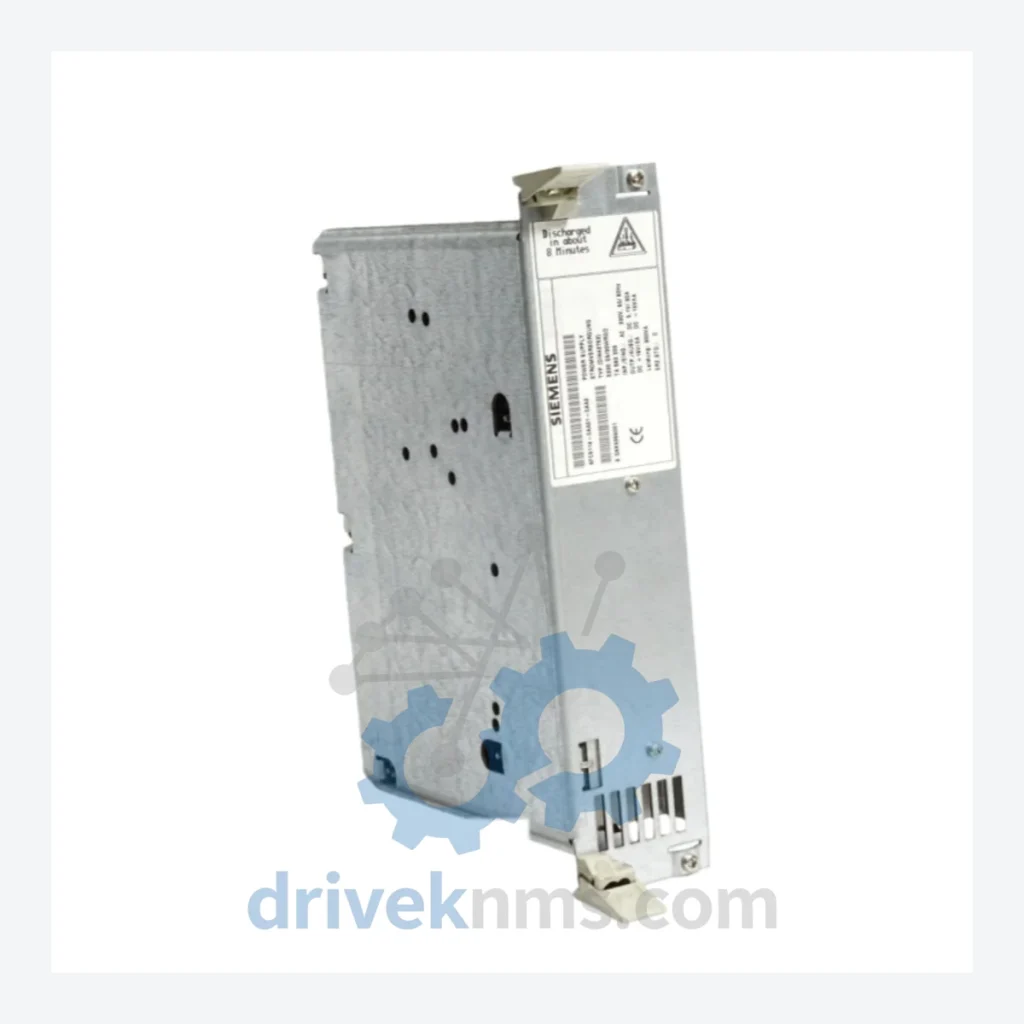

• 6FC5114-0AA01-0AA2: AC input power supply module for SINUMERIK 840D NCU, 1-phase 230 VAC input, provides regulated DC bus voltage to NCU backplane.
• 6FC5114-0AA02-0AA0: Revised AC power supply variant with enhanced inrush current limiting for extended backplane configurations.
• 6FC5114-0AA03-0AA0: High-capacity AC/DC power supply module, supports extended I/O rack configurations up to 8 slots.

NCU Controller Modules (CPU)

• 6FC5357-0BB33-0AE3: NCU 573.3 controller board, 840D powerline, Pentium MMX 266 MHz, supports up to 31 axes, integrated S7-300 PLC.
• 6FC5357-0BB35-0AE0: NCU 573.5 controller board, 840D powerline, enhanced memory configuration, PROFIBUS-DP onboard.
• 6FC5357-0BB23-0AE3: NCU 572.3 controller board, 840D powerline, mid-range axis count (up to 12 axes/spindles).
• 6FC5357-0BB13-0AE3: NCU 571.3 controller board, 840D powerline, entry-level axis configuration (up to 6 axes).
• 6FC5372-0AA00-0AA0: NCU 710.1 controller module, 840D solution line, DRIVE-CLiQ interface, Safety Integrated support.
• 6FC5372-0AA01-0AA0: NCU 720.1 controller module, 840D solution line, expanded axis count, dual PROFINET port.
• 6FC5372-0AA02-0AA0: NCU 730.1 controller module, 840D solution line, maximum performance tier, supports up to 93 axes in multi-NCU configurations.

Digital Input / Output Modules (DI/DO)

• 6FC5111-0CA01-0AA0: 16-channel digital input module, 24 VDC, for SINUMERIK 840D I/O expansion rack.
• 6FC5111-0CA02-0AA0: 16-channel digital output module, 24 VDC / 0.5 A per channel, sourcing type.
• 6FC5111-0CA03-0AA0: Combined 8 DI / 8 DO module, 24 VDC, compact I/O for machine tool auxiliary functions.
• 6FC5111-0CA04-0AA0: 32-channel digital input module, high-density I/O expansion for large-scale machine configurations.

Analog Input / Output Modules (AI/AO)

• 6FC5111-0CB01-0AA0: 4-channel analog input module, ±10 V / 0–20 mA, 12-bit resolution, for spindle speed feedback and process monitoring.
• 6FC5111-0CB02-0AA0: 2-channel analog output module, ±10 V, 12-bit, for external drive reference signals.

Communication & Interface Modules

• 6FC5103-0AB03-1AA2: PROFIBUS-DP communication module for 840D powerline, enables integration with distributed I/O and field devices.
• 6FC5103-0AB13-0AA0: MPI/PROFIBUS adapter module for operator panel and programming device connection.
• 6FC5248-0AF00-0AA0: Ethernet communication module for 840D, supports TCP/IP-based DNC and remote diagnostics.

Operator Panel Interface (OPI) Modules

• 6FC5203-0AB20-0AA0: Operator panel interface module, connects OP 010/012/015 panels to NCU via MPI bus.
• 6FC5203-0AB21-0AA0: Enhanced OPI module with integrated USB and CF card interface for program transfer.

Sourcing Hard-to-Find & Obsolete SINUMERIK 840D / 6FC5 Parts

DriveKNMS maintains a dedicated inventory of 6FC5 powerline and solution line modules sourced through verified industrial surplus channels, decommissioned machine tool lines, and OEM overstock. All units are cataloged by part number, hardware revision, and firmware version where applicable. For facilities operating 840D powerline systems with no near-term migration budget, DriveKNMS provides lifecycle extension support including:

Quality Control for the SINUMERIK 840D / 6FC5 Range

SINUMERIK 840D modules present specific quality verification challenges due to the complexity of their backplane bus communication, firmware dependency chains, and integrated safety functions. DriveKNMS applies a structured test protocol to all 6FC5 modules prior to dispatch:

• Visual and mechanical inspection: Connector pin integrity, PCB surface condition, capacitor inspection for electrolytic degradation (a known failure mode in powerline-era power supply modules), and housing integrity check.
• Power supply module bench test: Input voltage application at rated spec (230 VAC for AC supply modules), output voltage measurement on all DC rails, inrush current measurement, and thermal stability check under load.
• NCU controller board functional test: Boot sequence verification, PROFIBUS-DP communication handshake test, PLC I/O scan cycle confirmation, and memory integrity check via SINUMERIK diagnostic routines.
• I/O module channel-level test: Each digital input and output channel is individually stimulated and verified. Analog modules are tested for linearity and offset error within published Siemens tolerance bands.
• Communication module protocol test: PROFIBUS-DP and PROFINET modules are tested for correct frame transmission, address response, and error flag behavior using protocol analyzers.
• Firmware version documentation: Where readable, firmware and hardware revision data is recorded and provided with the shipment documentation to assist the end-user's compatibility verification.
