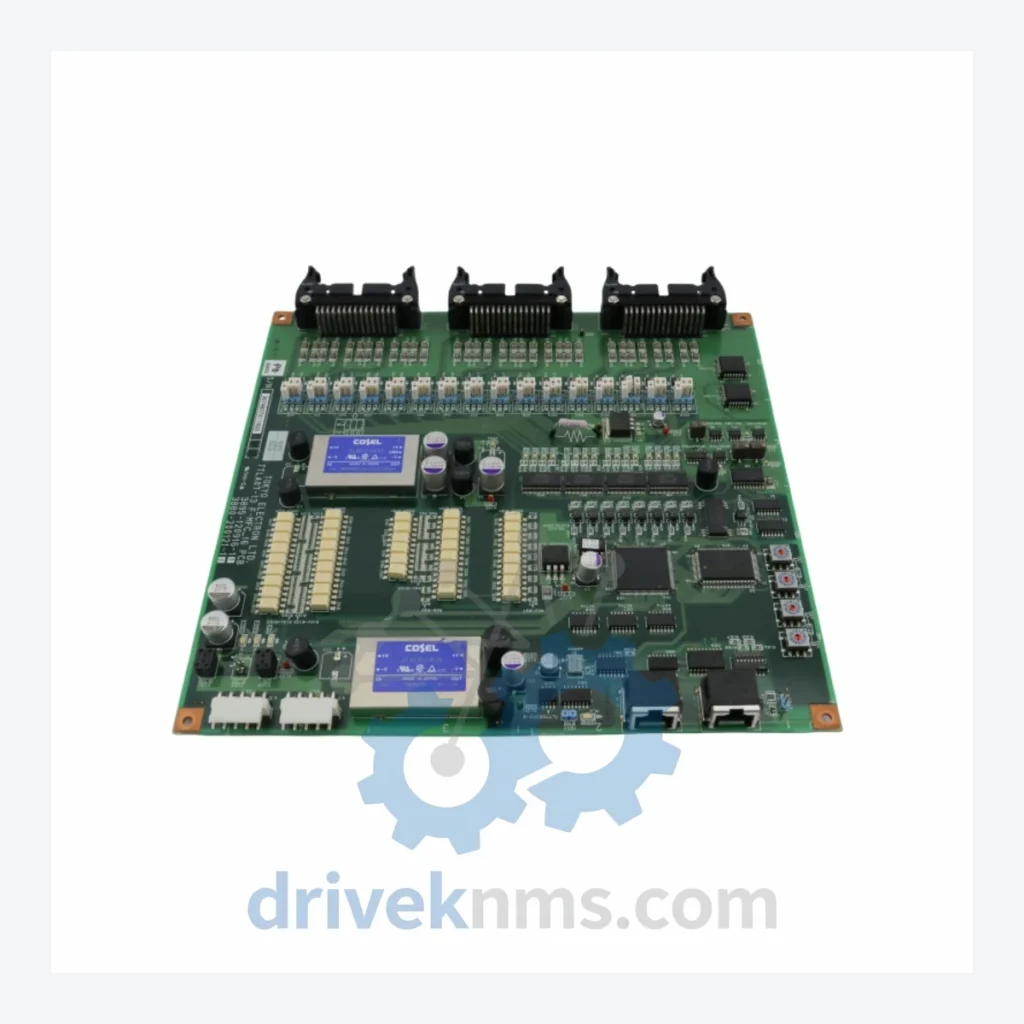

Tokyo Electron TTLA08-13 F-MFC_AI_4 MFC AI Control PCB Board – CUBE 32/900 Series

Technical Dossier

Product Details And Specifications

Tokyo Electron TTLA08-13 F-MFC_AI_4 MFC AI Control PCB Board: Supply Continuity Strategy for Semiconductor Fab Procurement Teams

The Tokyo Electron (TEL) TTLA08-13 F-MFC_AI_4 — cross-referenced as 3880-200122-11 / 3895-120917-11 / CUBE 32/900 / 1080-02286 / G-BAS3/230FEHN-AM — is a Mass Flow Controller AI interface PCB board deployed in TEL diffusion furnaces and CVD process equipment. As TEL has phased out direct OEM support for this board series, procurement managers operating legacy fab lines face a critical supply continuity challenge: a single unplanned downtime event caused by this board failure can cost a semiconductor facility upwards of USD $50,000–$200,000 per hour in lost wafer output.

DriveKNMS maintains verified aftermarket stock of this component, sourced through authorized secondary-market channels with full traceability documentation. This page is designed to give your procurement and engineering teams the factual data needed to make a confident, compliant sourcing decision — without the guesswork.

Procurement Specifications

Note: Because this is a discontinued TEL component, procurement managers are strongly advised to request a stock confirmation and functional test report before committing to a purchase order. DriveKNMS provides pre-shipment test documentation upon request.

Cost Optimization & TCO Analysis

When evaluating the Total Cost of Ownership (TCO) for a legacy PCB board like the TTLA08-13, the purchase price is rarely the dominant variable. The real cost drivers are:

• Unplanned Downtime Risk: A failed MFC AI board that cannot be replaced within 24–72 hours can halt an entire diffusion process line. At typical fab utilization rates, this translates to a downtime cost that dwarfs the component price by a factor of 50x–200x. Maintaining a spare unit on-shelf is the most cost-effective insurance policy available.
• Spare Parts Turnover Rate: For discontinued TEL components, the secondary market supply shrinks every quarter. Procurement teams that delay sourcing face exponentially higher prices and longer lead times as global inventory depletes. Sourcing now — even as a buffer stock — locks in current market pricing.
• Repair vs. Replace Economics: Board-level repair for the TTLA08-13 is technically feasible but requires specialized TEL firmware knowledge. DriveKNMS can advise on repair viability versus outright replacement based on your failure mode description, helping you avoid unnecessary repair costs on boards with systemic failure patterns.
• Vendor Consolidation: Sourcing through DriveKNMS consolidates your MRO procurement for multiple TEL spare parts under a single vendor relationship, reducing administrative overhead and improving your accounts payable efficiency.

Quality Compliance & Logistics

• 12-Month Warranty: All units ship with a 12-month functional warranty covering defects in materials and workmanship under normal operating conditions.
• Pre-Shipment Testing: Each board undergoes functional verification prior to dispatch. Test reports are available upon request for engineering review.
• Export Documentation: Full commercial invoice, packing list, and certificate of origin provided for customs clearance. We support HS code classification assistance for semiconductor spare parts.
• Multi-Currency Payment: USD, EUR, CNY, HKD accepted. T/T bank transfer, PayPal, and trade finance arrangements available for qualified buyers.
• Global Express Logistics: DHL Express, FedEx International Priority, and UPS available. Typical transit: 3–5 business days to North America/Europe; 2–4 days to Southeast Asia.
• Packaging: Anti-static ESD packaging with foam cushioning, compliant with IPC/JEDEC standards for PCB board transport.

Why Procurement Managers Choose DriveKNMS

• Global Sourcing Network: We maintain relationships with authorized TEL service partners, certified refurbishers, and secondary-market distributors across Japan, the US, Europe, and Southeast Asia — giving us access to inventory that is not visible on standard distributor platforms.
• Part Number Cross-Reference Expertise: The TTLA08-13 carries multiple sub-reference numbers across different TEL equipment generations. Our technical team verifies compatibility with your specific equipment serial number and software revision before shipment, eliminating the risk of receiving an incompatible board revision.
• Financial Compliance: All transactions are conducted with full KYC documentation, proper export licensing where required, and OFAC/sanctions screening. Suitable for Fortune 500 procurement compliance requirements.
• Responsive RFQ Process: Standard RFQ response within 4 business hours. Formal quotation with stock confirmation, lead time, and pricing issued within 24 hours.

FAQ

Q: What payment terms are available for first-time buyers?
A: We accept 100% T/T in advance for first orders. For repeat customers or orders above USD $10,000, we can discuss Net 30 or partial advance payment terms with appropriate trade references.

Q: Is the 12-month warranty valid for refurbished units?
A: Yes. Our warranty applies equally to refurbished and new old stock units. The warranty period begins from the date of shipment and covers functional failure under normal operating conditions. Physical damage caused by installation error or electrical overstress is excluded.

Q: Do you offer volume discounts for bulk procurement?
A: Yes. Orders of 3+ units qualify for preferential pricing. Contact us with your quantity requirement and target price for a tailored commercial proposal.

Q: What is your return and exchange policy?
A: DOA (Dead on Arrival) claims must be reported within 7 days of receipt with photographic evidence and a failure description. We will arrange replacement or full refund at our discretion. Returns for non-defective units are not accepted given the nature of specialty electronic components.

Q: Can you provide a certificate of conformance or test report?
A: Yes. A functional test report and certificate of conformance are available upon request prior to shipment. Please specify this requirement in your RFQ.

Q: How do I confirm the board is compatible with my specific TEL equipment?
A: Provide your equipment model number, serial number, and current board revision in your inquiry. Our technical team will verify compatibility before issuing a quotation.
