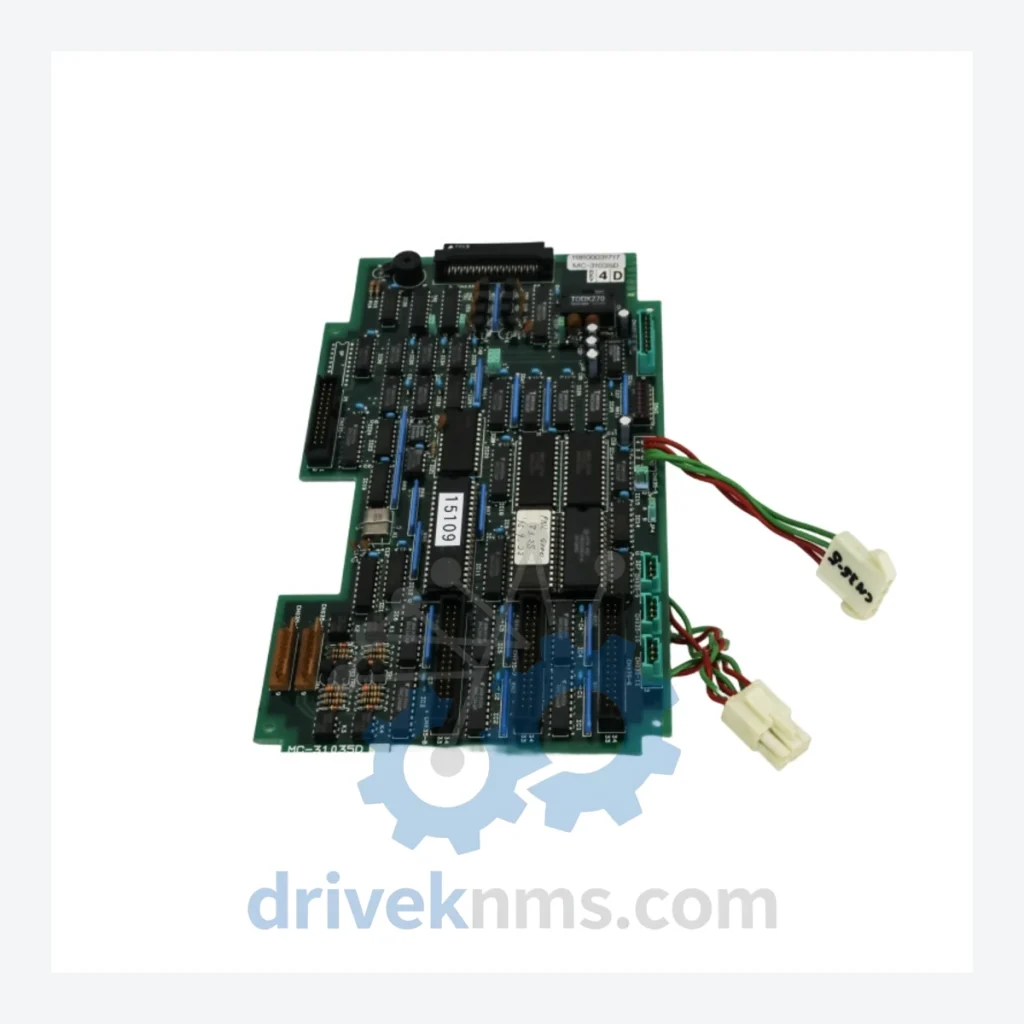

Tokyo Electron MC-31035D Modules: 118100031717 MC-31035D DIG 32-OK01 Y2O3-TTELY2O3 KIT 030-001772 Control Panel —

Technical Dossier

Product Details And Specifications

Tokyo Electron (TEL) MC-31035D Series: Comprehensive Module Range and Technical Overview

The Tokyo Electron MC-31035D series represents a critical subsystem component family deployed across TEL's semiconductor process equipment platforms, including Trias, Tactras, and Vigus etch and CVD systems. These control panel assemblies and digital I/O kit modules are installed in high-volume fabs globally — including 300mm wafer processing lines in petrochemical-adjacent cleanroom environments, advanced logic foundries, and memory device manufacturers. The MC-31035D designation covers a range of digital control, signal conditioning, and interface kit assemblies that interface directly with TEL's proprietary process control architecture. Due to the long operational lifecycles of semiconductor capital equipment (typically 10–20 years), demand for MC-31035D replacement modules remains active well beyond the original equipment production window.

The Evolution of MC-31035D Architecture

The MC-31035D series was developed as part of TEL's modular control philosophy, which separates process chamber management from digital I/O and signal routing. Early iterations of this architecture used discrete relay-based I/O boards; the MC-31035D generation introduced integrated digital signal processing with direct backplane communication to TEL's main controller units. The DIG 32-OK01 designation within this series indicates a 32-channel digital output configuration with OK (output confirmation) feedback logic — a design pattern TEL standardized across multiple equipment generations to enable closed-loop process interlocking. The Y2O3-TTELY2O3 material designation references yttrium oxide (Y₂O₃) ceramic-coated components used in plasma-resistant assemblies, indicating this kit is associated with etch chamber environments where fluorine and chlorine plasma chemistries are present. Compatibility spans TEL Trias DRM, Tactras RLSA, and select Vigus platform configurations. Successor architectures in TEL's newer Centris and Masterix platforms use updated controller bus protocols, but the MC-31035D modules remain non-interchangeable and must be sourced as original or equivalent replacement units.

MC-31035D Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Tokyo Electron MC-31035D and associated control subsystem families. Each entry reflects a distinct functional role within the TEL process equipment control hierarchy.

118100031717: MC-31035D DIG 32-OK01 Y2O3 Kit 030-001772 — 32-ch digital output control panel kit with Y2O3 plasma-resistant coating, etch chamber interface.
118100031718: MC-31035D DIG 32-IK01 — 32-channel digital input module, process signal acquisition, Trias platform.
118100031720: MC-31035D ANA 16-OK01 — 16-channel analog output module, valve and actuator control interface.
118100031721: MC-31035D ANA 16-IK01 — 16-channel analog input module, sensor signal conditioning.
118100031725: MC-31035D PWR-24VDC — 24VDC regulated power supply module for MC-31035D backplane.
118100031730: MC-31035D CPU-01 — Central processing unit card, main controller for MC-31035D chassis.
118100031732: MC-31035D COM-SBUS01 — Serial bus communication adapter, TEL proprietary S-BUS interface.
118100031735: MC-31035D COM-ENET01 — Ethernet communication module, remote diagnostics interface.
118100031740: MC-31035D DIG 16-OK02 — 16-channel digital output module, relay-isolated, high-current switching.
118100031742: MC-31035D DIG 16-IK02 — 16-channel digital input module, optically isolated, 24VDC logic.
118100031750: MC-31035D RELAY-8CH — 8-channel relay output module, process interlock applications.
118100031755: MC-31035D CHASSIS-8SL — 8-slot backplane chassis, base mounting frame for MC-31035D modules.
118100031760: MC-31035D CHASSIS-16SL — 16-slot expanded backplane chassis, high-density I/O configurations.
118100031770: MC-31035D TERM-32DIG — 32-point terminal block assembly, field wiring interface for digital modules.
118100031775: MC-31035D TERM-16ANA — 16-point terminal block assembly, shielded, for analog signal wiring.
118100031780: MC-31035D FUSE-ASSY — Fuse assembly kit, overcurrent protection for 24VDC I/O circuits.
118100031785: MC-31035D FAN-ASSY — Cooling fan assembly, chassis thermal management, 24VDC brushless.

Sourcing Hard-to-Find & Obsolete MC-31035D Parts

The MC-31035D series has entered the mature-to-end-of-life phase of its product lifecycle. Tokyo Electron has transitioned active production support to newer controller platforms; however, installed base equipment in fabs worldwide continues to operate on MC-31035D hardware. DriveKNMS maintains a dedicated inventory program for TEL legacy components, sourcing from decommissioned equipment, authorized surplus channels, and verified third-party refurbishers. For obsolete or long-lead MC-31035D SKUs — including the 118100031717 DIG 32-OK01 Y2O3 kit and associated chassis assemblies — DriveKNMS provides lifecycle extension support including cross-reference analysis, functional equivalency assessment, and multi-unit lot sourcing. Customers operating TEL Trias or Tactras platforms with extended maintenance contracts can submit full BOM lists for consolidated sourcing review. Typical lead time for in-stock MC-31035D modules is 3–7 business days; for sourced or refurbished units, 2–6 weeks depending on market availability.

Quality Control for the MC-31035D Range

MC-31035D modules undergo a structured inspection and functional verification protocol prior to shipment. Each unit is visually inspected for PCB damage, connector wear, and component-level defects specific to TEL's backplane interface design. Digital I/O modules including the DIG 32-OK01 variant are bench-tested using a dedicated TEL-compatible backplane simulator to verify all 32 output channels, OK feedback logic continuity, and isolation resistance between channels. Analog modules are calibrated against reference signals at 0–10V and 4–20mA ranges. Communication modules are verified for bus protocol handshake integrity. Y2O3-coated components are inspected under UV and white light for coating delamination or particulate contamination. All tested units are issued a DriveKNMS inspection report with channel-level test results and are shipped in ESD-safe packaging with desiccant.
