Tokyo Electron TVB3001-1 PCB Assembly – Obsolete HPM Series Spare Part

Technical Dossier

Product Details And Specifications

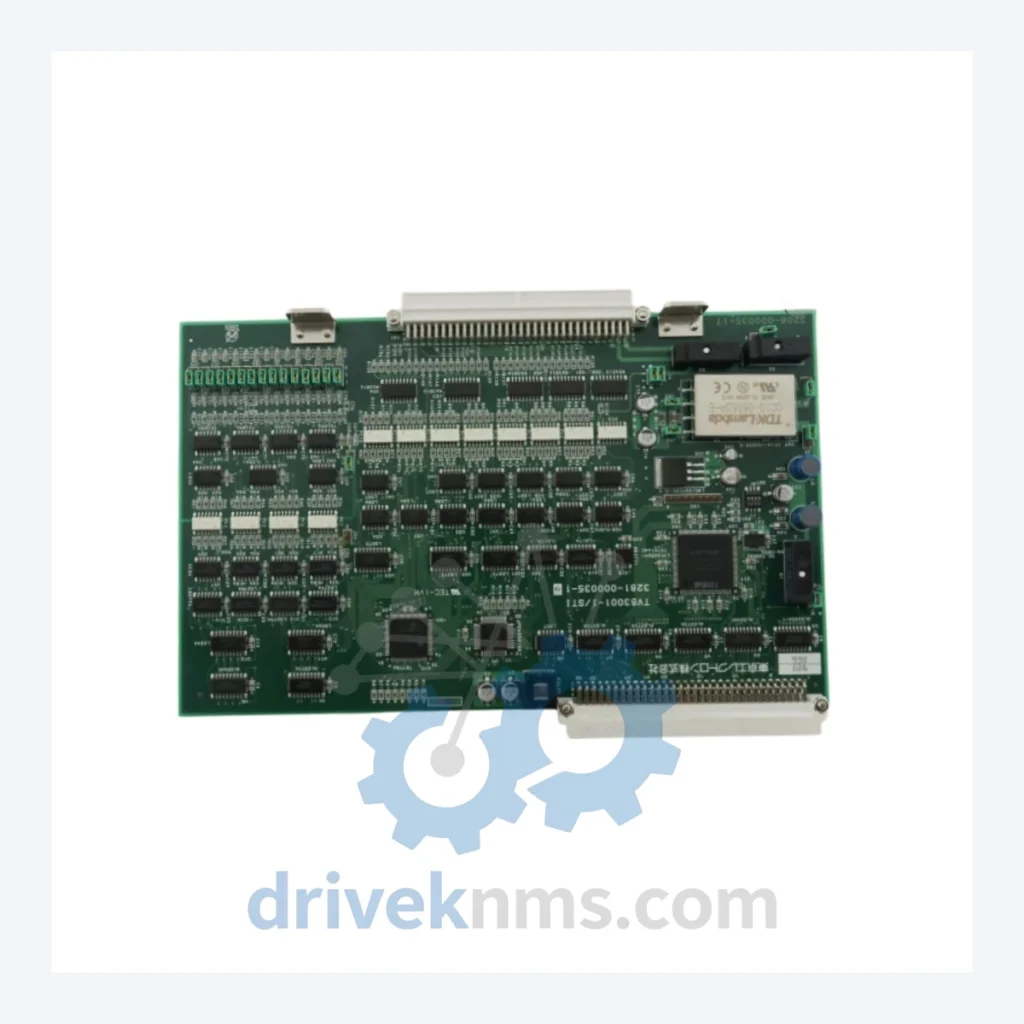

Tokyo Electron TVB3001-1 PCB Assembly – Obsolete HPM Series Spare Part

When a PCB assembly like the TVB3001-1 fails inside a Tokyo Electron Heat Process Module (HPM), the consequences extend far beyond a single board replacement. TEL's HPM-based diffusion and oxidation furnace platforms — including the Alpha-8S and related legacy systems — are deeply integrated into wafer fabrication lines. A single unresolved hardware fault can force a production line shutdown lasting days or weeks. The cost of a full system upgrade or platform migration, including process re-qualification, engineering labor, and downtime, routinely reaches seven figures. Against that backdrop, securing a verified replacement PCB assembly is not a maintenance decision — it is an asset protection decision.

DriveKNMS maintains limited physical stock of the TVB3001-1 / STI 3281-000035-19 / 1D86-006761-41 / HPM5F4F4F6S468 PCB Assembly. This is a confirmed obsolete component. Once global channel inventory is exhausted, no further supply will be available from the OEM.

Technical Specifications

Solving the Discontinued Hardware Crisis

TEL's HPM furnace platforms were workhorses of the semiconductor industry through the 1990s and 2000s. Many fabs continue to operate these systems for mature-node production, R&D wafer processing, or legacy product lines where process re-qualification on a new platform is cost-prohibitive. The TVB3001-1 PCB assembly is a control or interface board embedded within the HPM module architecture. Its failure directly impacts process control integrity — temperature regulation, gas flow sequencing, or interlock logic, depending on its specific functional role within the system.

TEL ceased active support for these platforms years ago. Authorized service channels no longer carry replacement boards. The only viable path to restoring system operation — without committing to a multi-million dollar platform replacement — is sourcing verified surplus or refurbished units from specialized industrial parts distributors. This is precisely the supply chain gap that DriveKNMS addresses.

For plant managers and maintenance engineers operating under capital expenditure constraints, the calculus is straightforward: a verified PCB assembly at a fraction of the cost of system replacement preserves production capacity, protects process qualification records, and defers a major capital decision by years. Facilities that proactively stock one or two spare units of critical obsolete boards routinely extend operational asset life by 5 to 10 years beyond the OEM's end-of-support date.

Condition & Reliability Assurance

Obsolete PCB assemblies sourced from the secondary market carry inherent risks that do not apply to new OEM parts. DriveKNMS applies a structured 5-step inspection protocol before any unit is offered for sale:

• Step 1 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in legacy PCBs. Each board is visually and electrically inspected for capacitor bulging, leakage, or measurable capacitance drift. Boards with degraded capacitors are either recapped or withheld from sale.
• Step 2 – Firmware Version Verification: Where firmware or EEPROM content is present, the version is documented and cross-referenced against known compatible revisions for the target system. Mismatched firmware is a common cause of post-installation failure.
• Step 3 – Pin and Connector Corrosion Inspection: All edge connectors, pin headers, and solder joints are inspected under magnification for oxidation, corrosion, or mechanical damage. Affected contacts are cleaned or the unit is rejected.
• Step 4 – Functional Bench Test (where applicable): Units that can be powered independently are bench-tested for basic electrical continuity and logic response prior to shipment.
• Step 5 – Packaging and ESD Protection: All PCB assemblies are shipped in anti-static packaging with appropriate cushioning to prevent transit damage.

Key Features for System Maintenance

• Drop-in Replacement: The TVB3001-1 is a direct hardware replacement for the original board position within the TEL HPM module. No mechanical modification to the host system is required.
• No Reprogramming Required: In standard replacement scenarios, the board does not require system-level reprogramming, avoiding costly engineering intervention.
• Avoids Engineering Rework Costs: Substituting a compatible PCB assembly eliminates the need for control system redesign, third-party integration work, or process re-qualification — costs that can exceed the value of the equipment itself.
• Preserves Process Qualification: Replacing a like-for-like component keeps the system within its validated process envelope, protecting existing qualification records.
• Immediate Dispatch: Stock on hand. No lead time associated with OEM manufacturing queues.

FAQ

Q: What warranty applies to an obsolete PCB assembly?
A: DriveKNMS provides a 90-day warranty against DOA (dead on arrival) and functional failure under normal operating conditions. Given the obsolete nature of this component, extended warranty terms are available on request for volume orders.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced from decommissioned OEM equipment or verified industrial surplus channels. Physical markings, board revision codes, and component layouts are cross-checked against known authentic references. We do not source from unverified brokers.

Q: Is the unit new or refurbished?
A: Units are offered as either new surplus (unused, original packaging where available) or professionally refurbished (inspected and tested per the 5-step protocol above). Condition is stated explicitly in the order confirmation.

Q: Should I stock more than one unit?
A: For any production-critical system running on obsolete hardware, maintaining a minimum of one cold spare is standard practice. Given the finite global supply of TVB3001-1 boards, procurement teams are advised to secure spares now rather than at the point of failure, when sourcing timelines become critical.

Q: Can you source other TEL HPM spare parts?
A: Yes. DriveKNMS specializes in legacy semiconductor equipment components. Contact us with your full part number list for availability assessment.
