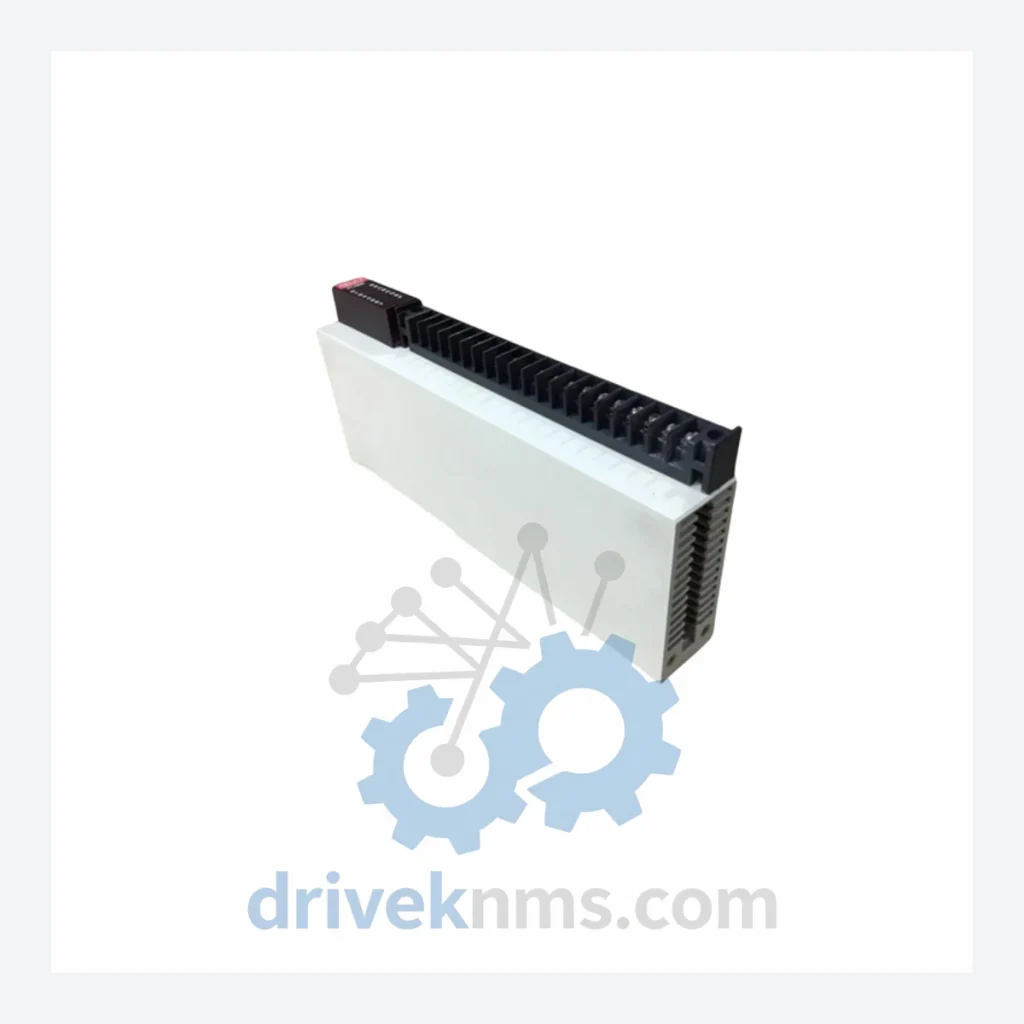

Toshiba B20016RY Output Module – Obsolete T Series Spare Part

Technical Dossier

Product Details And Specifications

Toshiba B20016RY Output Module – Obsolete T Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters beyond those listed above are not confirmed from verified documentation and are intentionally omitted. Accuracy of specifications is a safety matter for legacy hardware — no parameters are assumed or fabricated.

Solving the Discontinued Hardware Crisis

The Toshiba T Series PLC platform was widely deployed across discrete manufacturing, utilities, and process control applications throughout the 1980s and 1990s. Many of these installations remain operational today — not because replacement has been overlooked, but because the cost and risk of migration outweigh the cost of maintenance. The B20016RY relay output module sits at the interface between the controller logic and field devices. Its failure does not merely interrupt one output channel; depending on system architecture, it can halt an entire production cell or safety interlock loop.

The core problem facing plant managers is not the module itself — it is the absence of a reliable supply chain for it. Standard industrial distributors discontinued stocking T Series components years ago. Spot market sourcing without verification introduces the risk of counterfeit or degraded units, which in a legacy control environment can cause damage that exceeds the cost of the original failure. DriveKNMS sources, inspects, and holds physical inventory of modules like the B20016RY precisely because the demand is real and the supply is structurally constrained.

How to extend your automation asset life by 5–10 years without a full system overhaul:

A disciplined spare parts strategy for a Toshiba T Series installation is not a workaround — it is the lowest-cost path to protecting a capital asset that would cost millions to replace.

Condition & Reliability Assurance

Every B20016RY unit shipped by DriveKNMS passes a structured 5-step inspection protocol before it leaves our facility:

1. Electrolytic Capacitor Assessment: Aging relay output modules are susceptible to capacitor degradation. Each unit is inspected for bulging, leakage, or ESR deviation that would indicate imminent failure under load.
2. Firmware Version Verification: Where applicable, firmware or EPROM version is documented and disclosed. No unit is shipped with an unknown or unverifiable firmware state.
3. Pin and Connector Inspection: All edge connectors and backplane pins are examined under magnification for oxidation, corrosion, or mechanical deformation. Affected contacts are cleaned to IPC standards or the unit is rejected.
4. Relay Contact Continuity Test: Output relay contacts are tested for proper make/break operation and contact resistance within acceptable limits.
5. Final Functional Verification: Where test fixtures permit, the module is powered and output states are verified against expected behavior before packaging.

Key Features for System Maintenance

• Drop-in replacement: The B20016RY installs directly into the existing T Series rack backplane. No hardware modification is required.
• No reprogramming required: The PLC program resides in the CPU module, not the output card. Replacing the B20016RY does not require any changes to the control program.
• No engineering re-architecture: Unlike a system migration, a module swap is a maintenance event — executable by qualified maintenance personnel without external engineering engagement.
• Immediate operational restoration: With a verified spare on hand, mean time to repair (MTTR) for a B20016RY failure is measured in minutes, not weeks.

Can you source other Toshiba T Series modules?
Yes. DriveKNMS specializes in hard-to-find and obsolete industrial automation components. Contact us with your full BOM or part list for availability assessment.
