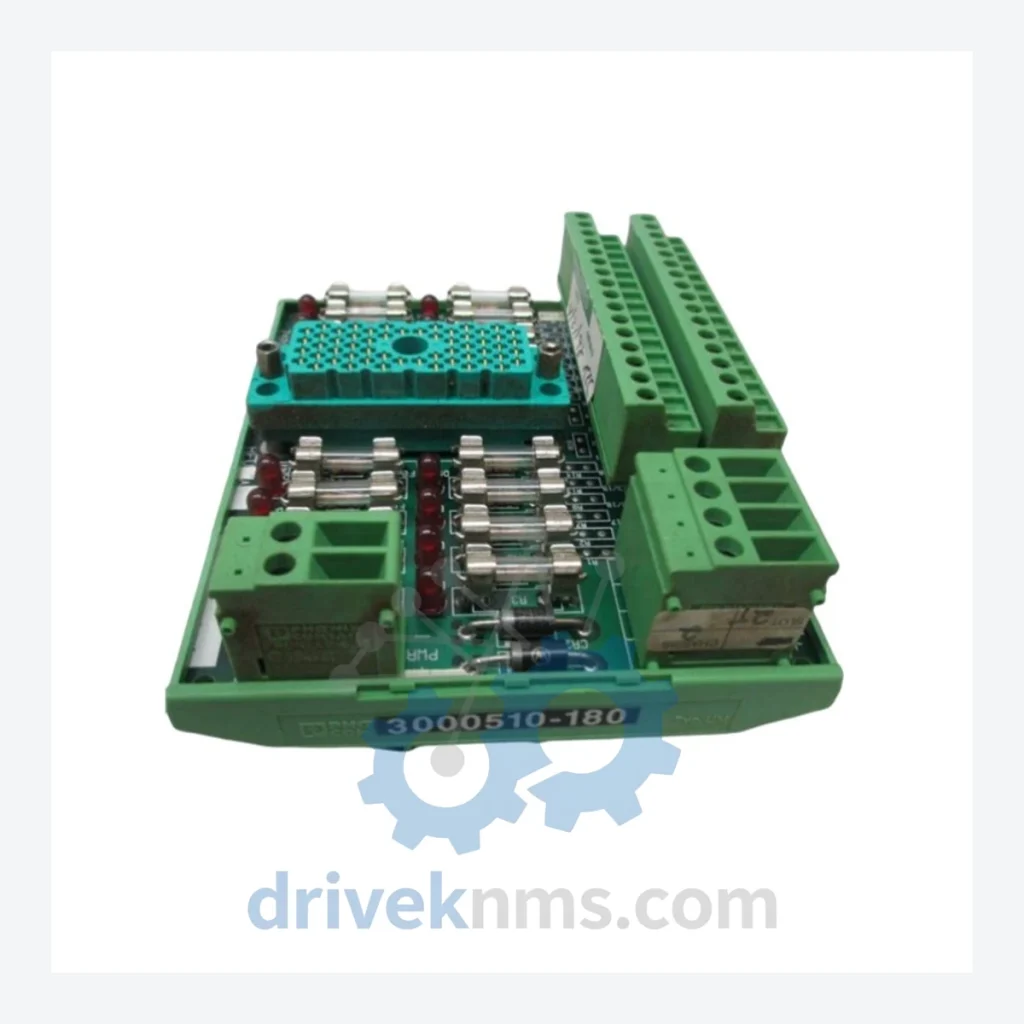

TRICONEX 3000510-180 Termination Board

Technical Dossier

Product Details And Specifications

TRICONEX 3000510 Series: Comprehensive Module Range and Technical Overview

The TRICONEX 3000510 series of Termination Boards is a core infrastructure component within the Tricon Triple Modular Redundant (TMR) Safety Instrumented System (SIS) platform, manufactured by Triconex — a brand of Schneider Electric. These termination assemblies serve as the field wiring interface between process instrumentation and the Tricon main chassis I/O modules. The 3000510 series is deployed across the most demanding continuous-process industries globally, including petrochemical refineries, LNG terminals, nuclear power generation facilities, offshore platforms, and large-scale chemical manufacturing plants. Their role is non-negotiable in SIL 2 and SIL 3 certified safety loops, where field wiring must be isolated, organized, and reliably connected to the redundant I/O backplane without introducing single points of failure. The installed base of Tricon systems using 3000510-series termination boards spans hundreds of facilities across North America, the Middle East, Europe, and Asia-Pacific, many of which have operational lifespans exceeding 25 years.

📩 Looking for a specific 3000510 model? Send your list to: sale@driveknms.com

The Evolution of 3000510 Architecture

The Tricon TMR platform was introduced in the mid-1980s as one of the first commercially available triple-redundant programmable safety controllers. The 3000510 termination board family evolved alongside successive generations of Tricon I/O modules. Early revisions were designed for the Tricon v9 and v10 chassis, featuring screw-terminal field wiring blocks rated for standard 24 VDC and 120/240 VAC signals. As the platform matured into the Tricon v10 and v11 generations, the 3000510 series was updated to support higher-density I/O configurations, improved EMI shielding, and enhanced surge protection on field terminals. The -180 suffix variant (3000510-180) designates a specific wiring configuration and connector pinout compatible with defined Tricon I/O module types. Compatibility between termination board revision and I/O module generation is critical: mismatched assemblies will result in incorrect field signal routing and potential SIS logic failure. As Triconex transitioned customers toward the Tricon CX and Trident platforms in the 2010s, the 3000510 series entered a mature/end-of-active-production lifecycle. However, given the 20–30 year operational horizon of most SIS installations, demand for 3000510 boards as long-term maintenance spares remains substantial. Facilities operating legacy Tricon v9/v10/v11 systems must maintain an adequate inventory of these termination boards to support planned turnarounds and unplanned failures without triggering a full SIS platform migration.

TRICONEX 3000510 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the TRICONEX 3000510 Termination Board series, classified by signal type and I/O function:

Analog Input Termination Boards

• 3000510-100: AI termination board for 4–20 mA analog input modules, standard density
• 3000510-110: AI termination board with HART pass-through support for smart field devices
• 3000510-120: Analog input termination, high-density configuration, 32-channel layout
• 3000510-130: Thermocouple/RTD input termination board for temperature measurement loops
• 3000510-140: Isolated analog input termination, galvanic isolation per channel

Analog Output Termination Boards

• 3000510-150: AO termination board for 4–20 mA analog output modules, standard density
• 3000510-160: AO termination with loop-powered device compatibility and current limiting

Digital Input Termination Boards

• 3000510-170: DI termination board for 24 VDC discrete input modules, 32-point
• 3000510-180: DI termination board, 120 VAC discrete input configuration, field-side surge protection
• 3000510-190: DI termination board for 240 VAC discrete input modules
• 3000510-200: High-density DI termination, 64-point layout for compact chassis configurations

Digital Output Termination Boards

• 3000510-210: DO termination board for 24 VDC solid-state output modules
• 3000510-220: DO termination board for relay output modules, dry contact configuration
• 3000510-230: DO termination board for 120 VAC output modules with fused field terminals

Communication & Specialty Termination

• 3000510-240: Communication module termination board for Tricon serial/Modbus interface modules
• 3000510-250: Pulse input termination board for flow measurement and speed detection loops
• 3000510-260: Solenoid driver termination board for ESD valve actuator circuits

Sourcing Hard-to-Find & Obsolete 3000510 Parts

The TRICONEX 3000510 series has transitioned out of active Schneider Electric production. OEM new-stock availability is effectively zero for most variants. DriveKNMS maintains a dedicated inventory program for legacy Tricon SIS spare parts, with a focus on the 3000510 termination board family. Our sourcing network covers decommissioned plant asset liquidations, certified refurbishment channels, and long-term storage stock from original system integrators. For facilities operating under a long-term maintenance agreement (LTMA) or planning a scheduled turnaround, DriveKNMS can provide advance procurement and bonded warehousing of 3000510 boards to eliminate lead-time risk. All sourced units are cross-referenced against the original Triconex part numbering system to ensure revision-level accuracy before shipment.

Quality Control for the 3000510 Range

Termination boards in the 3000510 series interface directly with the Tricon TMR backplane bus and field wiring, making functional verification mandatory before deployment in a live SIS environment. DriveKNMS applies a structured test protocol to all 3000510 units processed through our facility. Each board undergoes visual inspection for terminal block integrity, PCB trace continuity, and connector pin condition. Electrical testing includes point-to-point continuity verification across all field terminals, isolation resistance measurement between signal channels and chassis ground, and surge protection component validation. For boards with embedded signal conditioning circuitry, functional signal injection tests are performed to confirm correct pass-through behavior. Units that pass all test stages are issued a DriveKNMS inspection certificate with test date, technician ID, and measured parameters, providing full traceability for SIS spare part documentation requirements.
