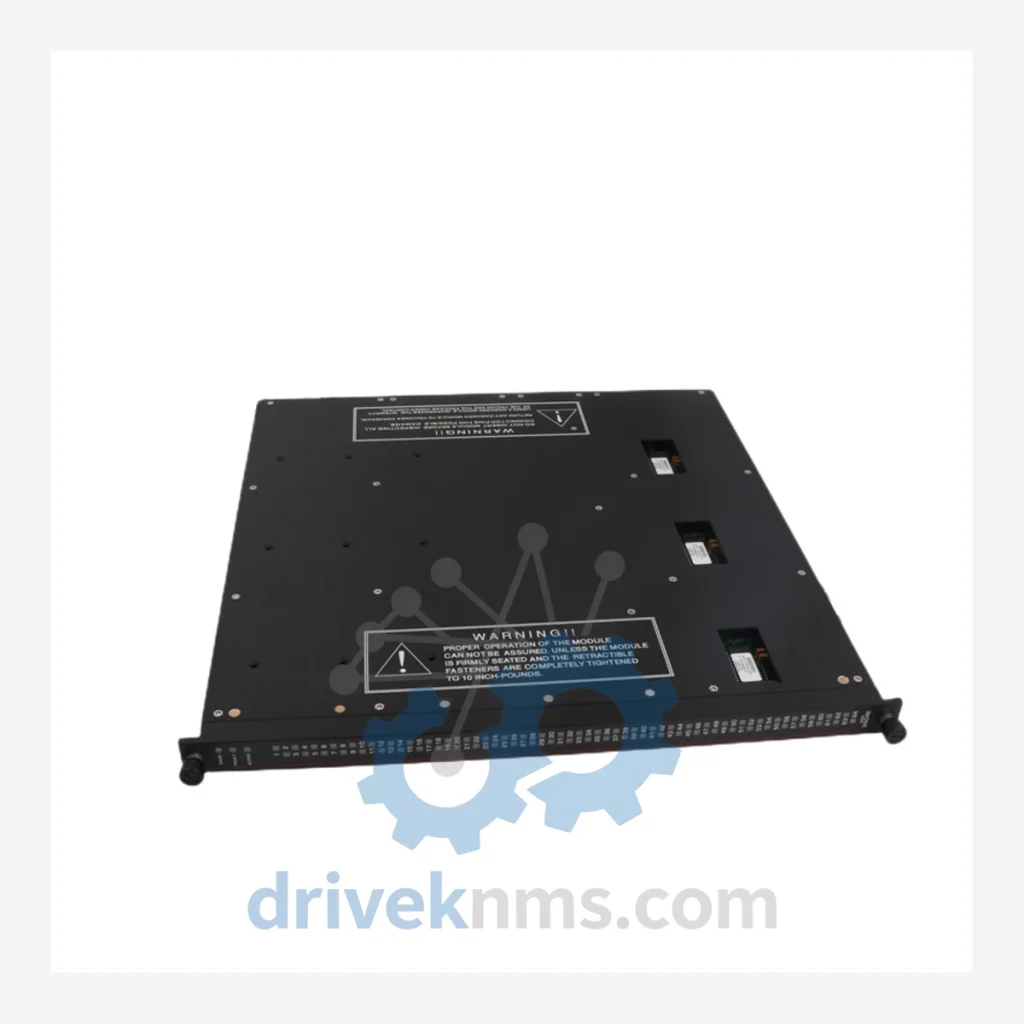

TRICONEX 3500 Series Modules | 3511 Pulse Input Module

Technical Dossier

Product Details And Specifications

TRICONEX 3500 Series: Comprehensive Module Range and Technical Overview

The TRICONEX 3500 Series is a core product line within Schneider Electric’s Tricon Safety System (TMR — Triple Modular Redundancy) platform. Deployed across critical global infrastructure including petrochemical refineries, nuclear power facilities, offshore platforms, LNG terminals, and chemical processing plants, the 3500 Series represents one of the most widely installed Safety Instrumented System (SIS) architectures in heavy industry. Its IEC 61511 and IEC 61508 SIL 3-certified architecture makes it the reference standard for Emergency Shutdown (ESD), Burner Management (BMS), and High Integrity Pressure Protection (HIPPS) applications. The 3511 Pulse Input Module is a key I/O component within this ecosystem, designed to accept pulse-type field signals from turbine flow meters, magnetic pickups, and rotating machinery sensors.

📩 Looking for a specific 3500 Series model? Send your list to: sale@driveknms.com

The Evolution of 3500 Series Architecture

The TRICONEX 3500 Series was introduced as part of the second-generation Tricon platform, succeeding the earlier TRICON v9 hardware. The architecture is built on a TMR backplane that provides three independent processing legs (Leg A, Leg B, Leg C), each executing identical logic and voting on outputs via a 2-out-of-3 (2oo3) scheme. Early 3500 Series modules used parallel backplane communication; later revisions introduced enhanced diagnostics and improved MTBF ratings. The series is compatible with TriStation 1131 programming software and integrates with the Tricon Communication Module (TCM) for Modbus, OPC, and peer-to-peer networking. As the 3500 Series has entered its mature/end-of-life phase for some sub-models, backward compatibility with legacy Tricon chassis (v9/v10) remains a critical procurement consideration. Long-term maintenance support, including tested surplus and refurbished modules, is essential for plants operating on extended lifecycle strategies beyond OEM support windows.

3500 Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the TRICONEX 3500 Series platform. Each module is designed for direct installation into the Tricon TMR chassis backplane.

3511: Pulse Input Module — accepts pulse signals from flow meters and rotating machinery sensors, 24 VDC, 8-channel.
3501: Digital Input Module — 32-channel, 24 VDC discrete input, TMR voting logic.
3503: Digital Input Module — 32-channel, 120 VAC discrete input for high-voltage field devices.
3504: Digital Output Module — 16-channel, 24 VDC solid-state output with diagnostics.
3505: Digital Output Module — 16-channel, 120 VAC relay output for high-voltage actuators.
3508: Analog Input Module — 16-channel, 4–20 mA, HART-compatible, SIL 3 rated.
3509: Analog Input Module — 8-channel thermocouple/RTD input for temperature measurement.
3510: Analog Output Module — 8-channel, 4–20 mA output for control valve positioners.
3513: Pulse Input Module — enhanced version with higher frequency range for turbine metering.
3515: Analog Input Module — 16-channel, high-density 4–20 mA with advanced HART pass-through.
3601: Main Processor Module (MP) — Tricon TMR CPU, executes safety logic at 100 ms scan rate.
3603: Main Processor Module — enhanced MP with expanded memory and faster scan cycle.
3607: Communication Module — supports Modbus RTU/TCP, peer-to-peer Tricon networking.
3625: Tricon Communication Module (TCM) — OPC server, Modbus TCP, and TriStation connectivity.
3700A: Power Supply Module — 24 VDC input, redundant chassis power for TMR backplane.
3721: Chassis Termination Panel — field wiring interface for 3500 Series I/O modules.
3805E: Enhanced Processor Module — next-generation MP with Ethernet-based TriStation support.

Sourcing Hard-to-Find & Obsolete 3500 Series Parts

DriveKNMS maintains a dedicated inventory of TRICONEX 3500 Series modules, including discontinued and long lead-time components. As Schneider Electric has progressively transitioned support toward the Tricon CX and Tricon X platforms, many 3500 Series modules are no longer available through standard OEM distribution channels. DriveKNMS sources tested surplus, factory-refurbished, and new-old-stock (NOS) units to support plants operating on extended maintenance cycles. All units are subject to functional verification prior to shipment. Procurement support includes cross-referencing obsolete part numbers to compatible replacement modules where direct substitution is feasible. Emergency same-day quotation is available for shutdown and turnaround (TAR) scenarios.

Quality Control for the 3500 Series Range

Each TRICONEX 3500 Series module processed by DriveKNMS undergoes a structured inspection and functional test protocol. For I/O modules such as the 3511 Pulse Input Module, testing includes channel-by-channel signal injection to verify pulse counting accuracy, input threshold response, and internal TMR voting circuit integrity. Processor modules (3601, 3603, 3607) are bench-tested using TriStation 1131 to confirm firmware version, memory integrity, and communication port functionality. Backplane connector pins are inspected for oxidation, mechanical damage, and contact resistance. Power supply modules are load-tested across their rated current range. All modules are shipped with a test report and a defined warranty period. ESD-safe packaging and anti-static handling procedures are applied throughout the process.
