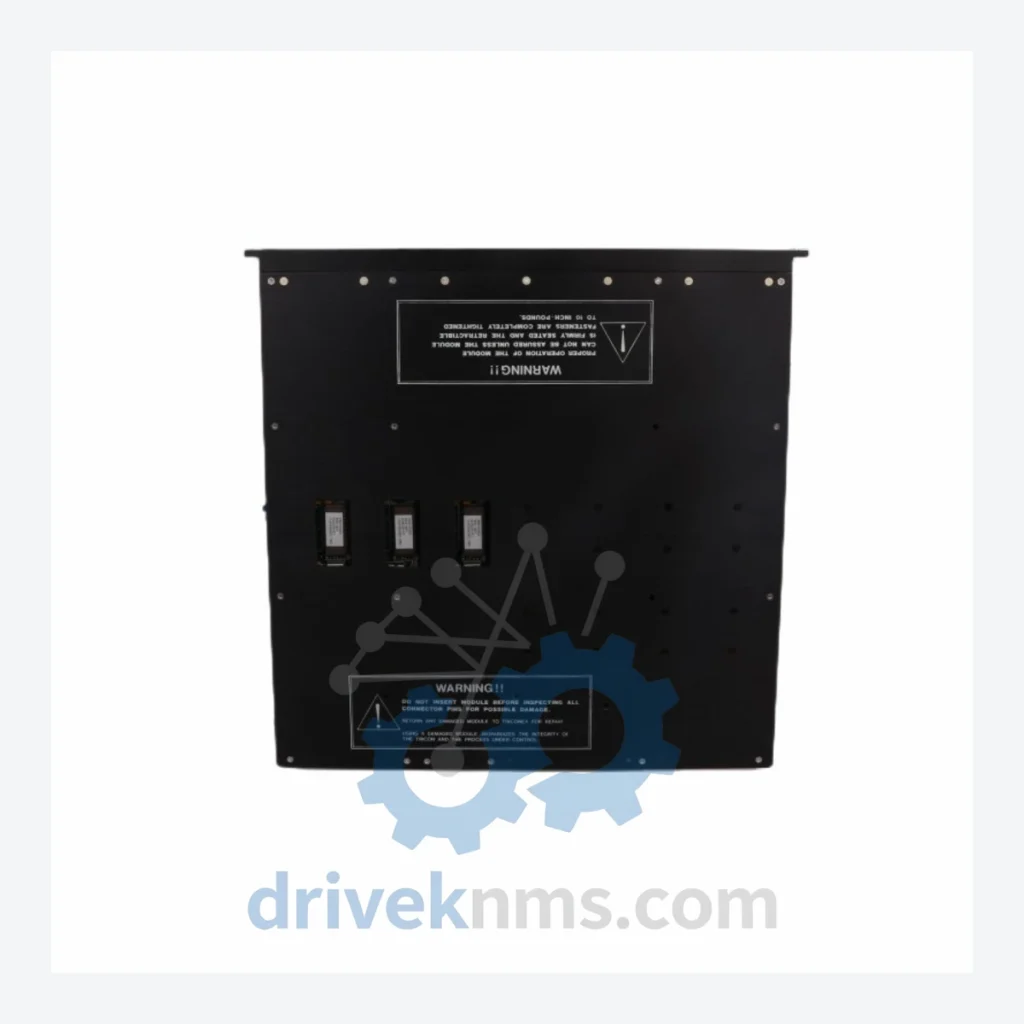

Triconex 3600 Series Modules | 3604A Digital Output Module

Technical Dossier

Product Details And Specifications

Triconex 3600 Series: Comprehensive Module Range and Technical Overview

The Triconex 3600 Series is a core module family within the Tricon Safety Instrumented System (SIS), one of the most widely deployed triple modular redundancy (TMR) platforms in global heavy industry. Installed across petrochemical complexes, nuclear power stations, offshore platforms, LNG terminals, and crude oil refineries, the 3600 Series provides the I/O backbone for safety-critical process control. Its TMR architecture — three independent processing paths with continuous cross-checking — enables fault tolerance without process shutdown, making it the reference standard for IEC 61511 and IEC 61508 SIL 3 applications. The 3604A Digital Output Module covered on this page is one of the most frequently sourced components in this family, used to drive solenoid valves, motor starters, and discrete actuators in hazardous-area installations.

The Evolution of 3600 Series Architecture

The Triconex 3600 Series was introduced as part of the Tricon v9 and v10 platform generations, designed to operate within the Tricon Main Chassis and Expansion Chassis using a proprietary high-speed TMR backplane bus. Early revisions of the 3600 I/O modules used parallel backplane communication; later revisions migrated to a serial TMR bus with enhanced diagnostics and reduced wiring density. The 3604A specifically belongs to the digital output family, rated for 24 VDC solid-state outputs with individual channel diagnostics. Compatibility constraints are significant: 3600 Series modules are chassis-slot-specific and require matching firmware revisions on the Main Processor Module (MP) to avoid configuration faults. Migration from Tricon v9 to v10 platforms introduced revised module addressing and updated diagnostic registers. End-of-life announcements from Schneider Electric (which acquired Triconex from Invensys in 2014) have placed several 3600 Series variants on the obsolescence track, increasing demand for certified refurbished and new-old-stock (NOS) units in the aftermarket.

3600 Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the Triconex 3600 Series. Each entry includes a concise functional description for rapid identification during maintenance planning or spare parts procurement.

3604A: 32-channel 24 VDC digital output module, TMR, solid-state, individual channel diagnostics.
3601E: 32-channel 24 VDC digital input module, TMR, wet contact, field-powered.
3602E: 32-channel 115 VAC digital input module, TMR, optically isolated inputs.
3603E: 32-channel 24 VDC digital output module, relay-type, TMR architecture.
3605E: 16-channel analog input module, 4–20 mA, TMR, 12-bit resolution.
3607E: 8-channel analog output module, 4–20 mA, TMR, loop-powered.
3608E: 16-channel thermocouple/RTD input module, TMR, multi-type sensor support.
3609: 16-channel analog input module, high-density, 4–20 mA, TMR.
3611E: 32-channel 24 VDC digital input module, TMR, dry contact, internally powered.
3613: 32-channel 115 VAC digital output module, TMR, solid-state, zero-cross switching.
3614: 32-channel 230 VAC digital output module, TMR, solid-state, high-voltage rated.
3617: Pulse input module, 8-channel, TMR, for turbine flow and speed measurement.
3620: Communication module, HART pass-through, 16-channel, TMR backplane interface.
3625: Fieldbus communication module, FOUNDATION Fieldbus H1, TMR-compatible.
3636R: Redundant power supply module, 24 VDC input, TMR chassis power distribution.
3700A: Main Processor Module (MP), Tricon v10, TMR CPU, 32 MB RAM, Ethernet port.
3721: Communication module, Modbus TCP/IP, dual-port Ethernet, TMR-compatible gateway.

Sourcing Hard-to-Find & Obsolete 3600 Series Parts

Multiple modules in the 3600 Series — including the 3604A, 3601E, and 3602E — have been placed on Schneider Electric's restricted availability list. Lead times from the OEM for in-production variants can exceed 26 weeks due to component sourcing constraints. DriveKNMS maintains a dedicated inventory of 3600 Series modules sourced from decommissioned plant assets, certified refurbishers, and authorized distributor overstock. All units are inspected against original Triconex hardware revision documentation. For safety system applications, DriveKNMS provides full traceability records including previous installation history, firmware revision stamps, and physical inspection reports. Customers operating Tricon systems beyond the OEM's standard support window can engage DriveKNMS for long-term maintenance agreements covering the full 3600 Series I/O range, including modules no longer listed in Schneider Electric's current price book.

Quality Control for the 3600 Series Range

The Triconex 3600 Series presents specific test challenges due to its TMR backplane architecture. Each module contains three independent processing legs (Leg A, Leg B, Leg C) that must be verified individually and in cross-comparison mode. DriveKNMS uses a dedicated Tricon chassis test bench — configured with a validated Main Processor Module and known-good power supply — to perform functional verification of all 3600 Series I/O modules prior to shipment. Test procedures include: channel-level output verification for digital modules (3604A, 3603E, 3613, 3614); loop calibration and linearity checks for analog modules (3605E, 3607E, 3609); TMR voter logic verification to confirm correct majority-vote output behavior; backplane bus communication integrity test across all three legs; and firmware revision confirmation against the customer's declared MP version. Modules that fail any single-leg test are quarantined and not offered for sale. Test records are retained for a minimum of five years and are available to customers upon request.
