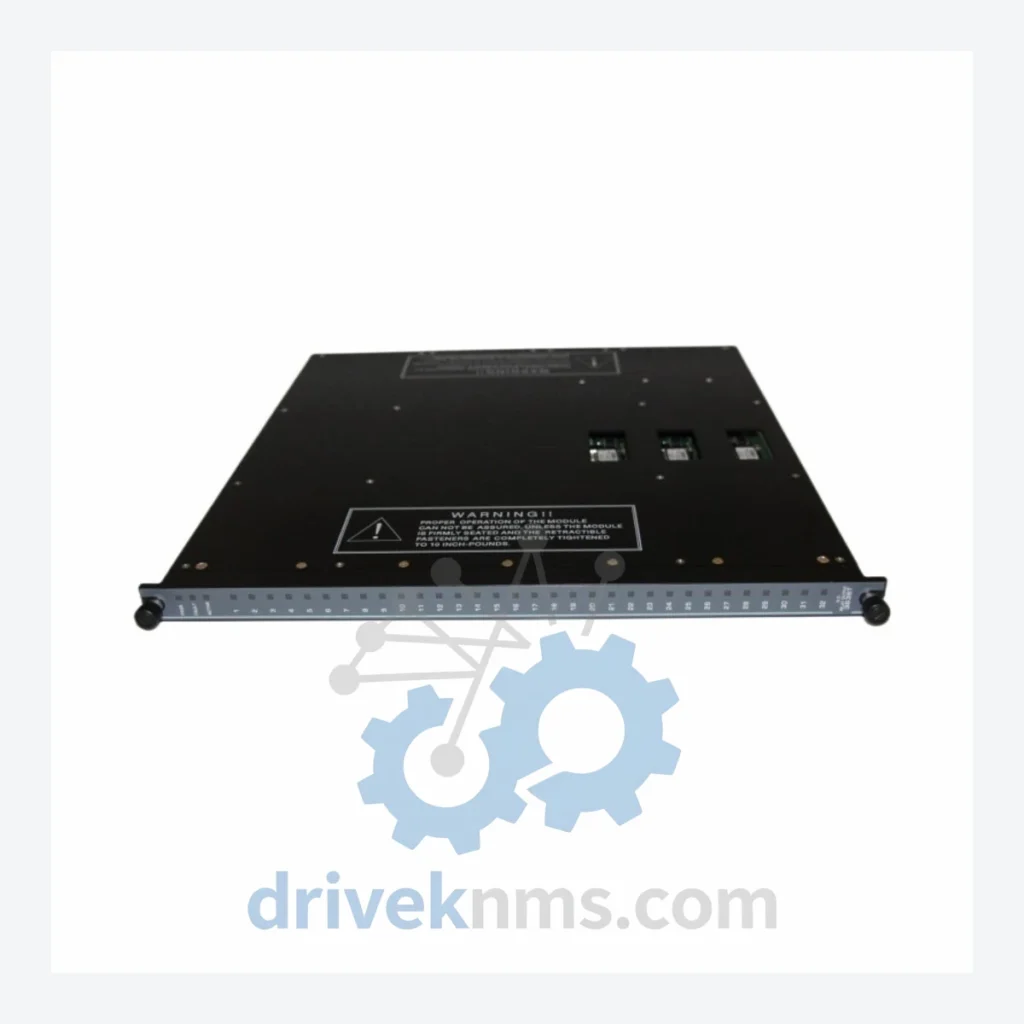

Triconex 3636R Relay Output Module – Obsolete Tricon Safety System Spare Part

When a relay output module fails inside a Tricon TMR safety controller, the clock starts immediately. A single failed 3636R does not just interrupt one output channel — it threatens the integrity of the entire triple modular redundant voting architecture that your SIL 2 or SIL 3 safety loop depends on. Replacing the Tricon platform outright means engineering assessments, new I/O mapping, updated functional safety documentation, revalidation, and a planned shutdown window. Conservative industry estimates place a full Tricon-to-modern-DCS migration at USD $2,000,000 to $10,000,000 per unit, excluding lost production. Against that figure, a single verified spare 3636R module is not a line item — it is an insurance policy.

DriveKNMS maintains a carefully sourced inventory of discontinued Triconex modules for exactly this scenario. The 3636R has been out of standard production for years, and authorized channel stock has long since dried up. Our procurement network spans industrial surplus, decommissioned plant assets, and controlled-environment storage — giving maintenance teams a realistic path to hardware continuity without a forced system retirement.

Technical Specifications

Note: Parameters listed reflect verified published data. Any specification not confirmed through primary documentation is intentionally omitted to protect equipment safety.

Solving the Discontinued Hardware Crisis

The Tricon platform was engineered for decades of service in high-hazard environments — oil & gas, petrochemical, power generation, and offshore installations. Its TMR voting logic, where three independent processing legs must agree before any output changes state, remains one of the most robust safety architectures ever deployed at scale. That same design longevity is now the source of a procurement problem: the platform outlasted its supply chain.

The 3636R relay output module sits at the field interface layer of the Tricon chassis. It converts the controller's internal logic signals into hardwired relay contacts that drive solenoid valves, motor starters, and shutdown actuators. There is no software-only workaround for a failed relay output module. The physical hardware must be present and functional for the safety function to execute.

Facilities running Tricon v9 or v10 systems face a specific challenge: the module form factor, backplane connector, and firmware handshake are proprietary. A generic relay card from another manufacturer cannot be inserted as a substitute. The choice is binary — source an authentic 3636R, or commit to a platform migration that will consume engineering resources for 18 to 36 months.

For plant managers under pressure from corporate asset rationalization programs, the calculus is straightforward. Maintaining a Tricon system with verified spare modules costs a fraction of migration. The 3636R is the component that keeps that option open.

Condition & Reliability Assurance

Sourcing discontinued industrial hardware carries real risk. DriveKNMS applies a structured 5-step qualification process to every 3636R unit before it enters available inventory:

1. Visual and mechanical inspection: Enclosure integrity, PCB surface condition, backplane connector pin examination for corrosion, bending, or contamination.
2. Electrolytic capacitor assessment: Aging electrolytic capacitors are the primary failure mode in stored relay modules. Each unit is evaluated for capacitor bulging, leakage residue, and ESR deviation from specification.
3. Firmware version verification: The module's firmware revision is confirmed against Triconex compatibility matrices to ensure it will handshake correctly with the target Tricon chassis version.
4. Relay contact functional test: All 16 output relay channels are exercised under load to confirm coil actuation, contact closure, and release within specification.
5. Final documentation and serialization: Each unit is logged with its inspection record, test results, and storage history before packaging for shipment.

Units that do not pass all five stages are not offered for sale. Condition grade (new surplus, refurbished, or tested used) is disclosed explicitly at the time of quotation.

Key Features for System Maintenance

The 3636R is a direct drop-in replacement for any Tricon chassis slot previously occupied by the same module type. No re-engineering of the safety application is required. Specifically:

• No reprogramming required: The Tricon controller recognizes the module by its hardware type code. The existing safety application logic, I/O assignments, and cause-and-effect matrix remain unchanged.
• No chassis modification: The module seats into the standard Tricon backplane without mechanical adaptation.
• No revalidation of unaffected functions: A like-for-like module replacement under a documented change management procedure typically requires only point-to-point I/O verification, not a full safety lifecycle revalidation.
• Avoids engineering mobilization costs: A migration project requires process safety engineers, control system integrators, FAT/SAT testing, and regulatory re-approval. A spare module replacement requires a qualified instrument technician and a planned maintenance window.

For facilities operating under tight maintenance budgets, the 3636R spare is the mechanism that defers a multi-million dollar capital project by five to ten years — provided the module is sourced before the failure event, not after.

FAQ

What warranty applies to a discontinued module like the 3636R?
DriveKNMS provides a 90-day functional warranty on all tested units. The warranty covers failure under normal operating conditions and excludes damage caused by incorrect installation or electrical overstress. Extended coverage options are available — contact us for details.

How do I know the unit is genuine and not counterfeit?
All units are sourced from traceable industrial origins — decommissioned plant assets, authorized surplus dealers, or controlled-environment storage. Physical markings, PCB revision codes, and firmware identifiers are cross-referenced against known-good references. We do not source from unverified secondary markets.

Should I buy more than one unit?
For any Tricon installation with no current spare, the answer is yes. The 3636R is no longer manufactured. Each unit that leaves the secondary market reduces the total available pool. Facilities with multiple Tricon chassis, or with safety loops that cannot tolerate any unplanned downtime, should maintain a minimum of two spare modules per chassis configuration. The cost of a second spare is negligible against the cost of an emergency shutdown with no replacement available.

Can you source other Triconex modules?
Yes. DriveKNMS specializes in hard-to-find Triconex, Honeywell, ABB, and Emerson legacy modules. If you have a parts list from a Tricon system, send it to us and we will advise on availability across your full requirement.
