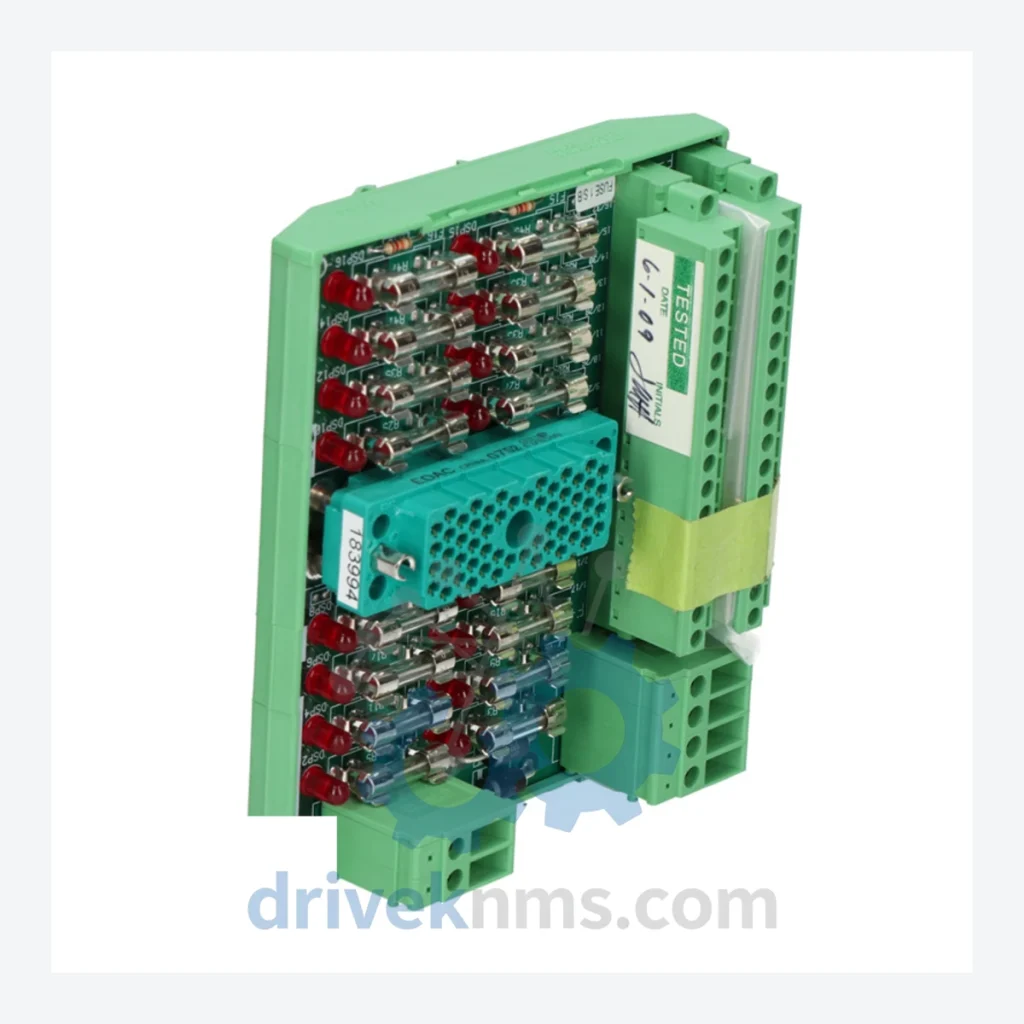

Triconex 9563-810 Digital Input Termination Panel – Obsolete Tricon Safety System Spare Part

Technical Dossier

Product Details And Specifications

Triconex 9563-810 Digital Input Termination Panel – Obsolete Tricon Safety System Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as input voltage range and channel count are specific to the installed Tricon chassis configuration. DriveKNMS does not publish unverified specifications. Contact us with your system documentation for compatibility confirmation.

Solving the Discontinued Hardware Crisis

The Triconex Tricon platform was the dominant TMR safety system across the hydrocarbon processing and power industries for decades. Many facilities commissioned Tricon-based SIS in the 1990s and early 2000s, with design lifespans of 20–25 years. Those systems are now operating beyond their original engineering horizon — and the OEM has progressively discontinued hardware support for the legacy Tricon chassis family.

The 9563-810 termination panel is a passive but structurally critical component. It provides the fixed wiring interface that allows digital input modules to be inserted and removed without disturbing field cable terminations. In a TMR architecture, this panel must maintain signal integrity across all three redundant legs simultaneously. There is no software workaround for a failed termination panel. There is no cross-compatible substitute from a different product generation without physical re-wiring and re-certification of the safety loop.

Facilities that have not pre-positioned spares face a binary choice when this component fails: source a used or surplus unit from the secondary market under time pressure, or initiate a full SIS upgrade project on an emergency timeline. Emergency SIS projects carry cost premiums of 40–80% over planned migrations, and they compress regulatory review timelines in ways that introduce compliance risk.

Condition & Reliability Assurance

DriveKNMS applies a 5-step qualification process to all legacy termination hardware before it is offered for sale.

Step 1 – Visual and Mechanical Inspection: All connector pins, terminal blocks, and mounting hardware are examined for corrosion, mechanical deformation, and contact oxidation. Units with pin corrosion beyond surface-level are rejected.

Step 2 – Electrolytic Capacitor Assessment: Where applicable, passive components are inspected for signs of electrolytic capacitor aging — bulging, electrolyte leakage, or ESR drift. This is the most common failure mode in legacy industrial electronics stored or operated beyond 15 years.

Step 3 – PCB and Trace Inspection: Board surfaces are examined under magnification for micro-fractures, solder joint fatigue, and delamination — failure modes associated with thermal cycling over long service periods.

Step 4 – Firmware and Label Verification: Where firmware or revision markings are present, these are cross-referenced against known Tricon compatibility matrices to confirm the unit matches the target system revision.

Step 5 – Functional Continuity Check: Electrical continuity across all signal paths is verified prior to packaging. Units are then sealed in ESD-protective packaging with desiccant for storage and shipment.

Key Features for System Maintenance

The 9563-810 is a direct, drop-in replacement for the same part number installed in your Tricon chassis. Installation does not require reprogramming of the Tricon logic solver, reconfiguration of the Tristation engineering workstation, or modification of any safety application software. Field wiring reconnects to the same terminal positions. This is a mechanical swap — not an engineering project.

For plant engineering and maintenance managers operating under capital expenditure constraints, maintaining the existing Tricon platform with verified spare parts is the lowest-risk, lowest-cost path to continued SIS compliance.

Q: Can this part be used with the Triconex Trident or TS3000 platforms?
A: The 9563-810 is designed for the Tricon chassis family. Compatibility with Trident or TS3000 platforms is not confirmed. Contact DriveKNMS with your specific system model and chassis revision before ordering.
