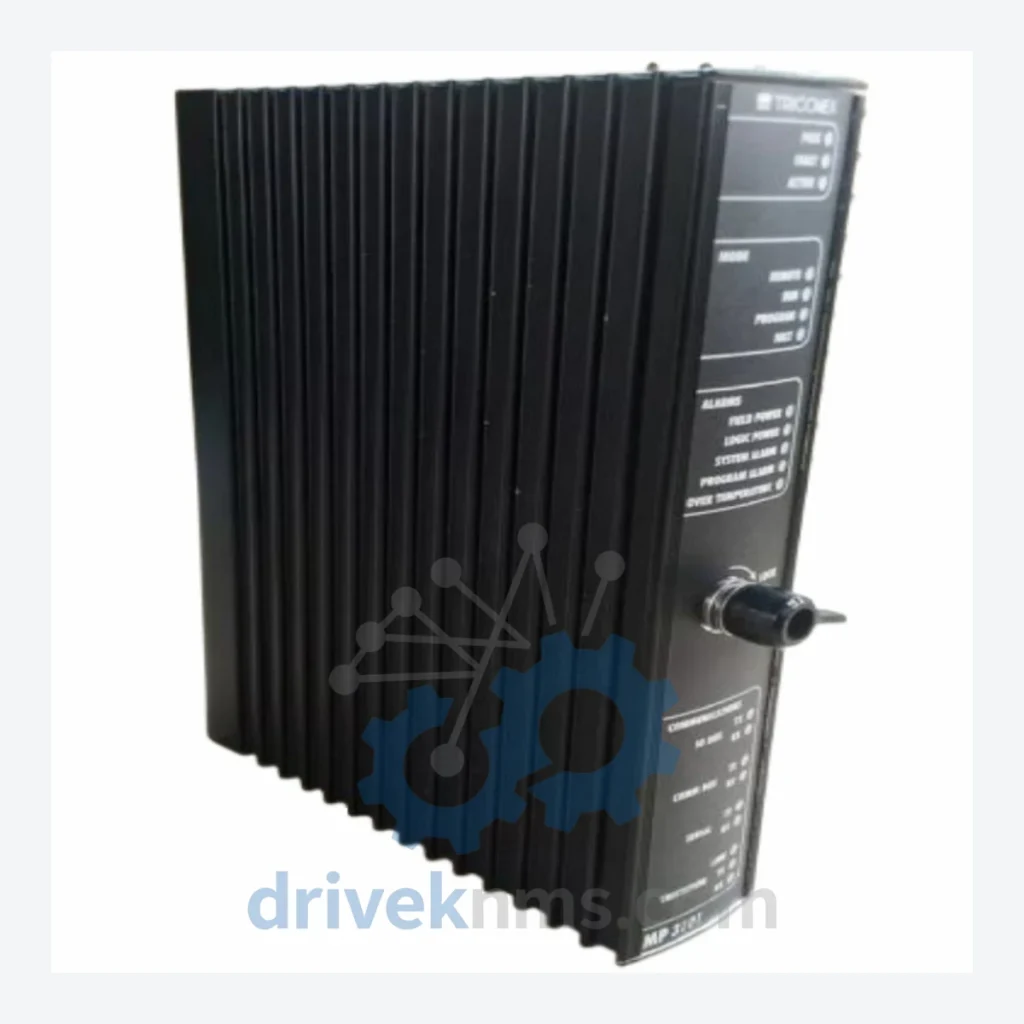

TRICONEX MP 3101 Processor Module

Technical Dossier

Product Details And Specifications

TRICONEX MP 3101 Series: Comprehensive Module Range and Technical Overview

The TRICONEX MP 3101 is a Main Processor module designed for use within the Triconex Tricon Triple Modular Redundant (TMR) Safety Instrumented System (SIS). Deployed across the most demanding process industries — including petrochemical refineries, offshore oil & gas platforms, nuclear power generation facilities, and LNG terminals — the MP 3101 serves as the central computational core of the Tricon chassis. Its TMR architecture executes control logic across three independent processing paths simultaneously, with a fault-tolerant voter circuit that ensures continuous operation even under single-point hardware failure. The MP 3101 is certified to IEC 61508 SIL 3, making it one of the most widely installed safety-rated processors in global heavy industry. Installed base estimates place Tricon systems — with the MP 3101 as a primary processor variant — in tens of thousands of safety loops worldwide, with active deployments spanning 20+ years of continuous operation at many sites.

The Evolution of MP 3101 Architecture

The Triconex Tricon platform was introduced in the late 1980s as one of the first commercially available TMR-based safety controllers. The MP 3101 represents a mid-generation processor within the Tricon 3000 series hardware family, succeeding earlier variants such as the MP 3008 and preceding the enhanced MP 3201 and MP 3301 models. Key architectural milestones include:

• Early Generation (Tricon v1–v7): MP 3008-based systems with limited memory and slower scan cycles. Backplane communication via proprietary Tribus I bus.
• MP 3101 Generation (Tricon v8–v9): Expanded program memory, improved diagnostic coverage, and support for TriStation 1131 programming environment. Compatible with both legacy I/O modules and newer communication adapters.
• MP 3201 / MP 3301 Transition: Introduced faster processors, expanded I/O capacity, and Ethernet-based communication options. MP 3101 systems can often be upgraded to MP 3201 with firmware and chassis compatibility review.
• Modern Replacement Path: Schneider Electric (post-acquisition of Invensys/Triconex) now positions the Tricon CX as the current-generation platform. However, MP 3101-based systems remain in active service and are supported through third-party MRO channels including DriveKNMS.

Compatibility note: The MP 3101 operates within the standard Tricon main chassis and is compatible with the full range of Tricon 3000-series I/O, communication, and power modules, subject to firmware revision alignment.

TRICONEX MP 3101 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Triconex Tricon 3000-series ecosystem, compatible with or directly associated with MP 3101-based system configurations. Classified by functional category:

Processor & Controller Modules

• MP 3101: Main Processor Module, TMR architecture, SIL 3, Tricon 3000 series primary CPU.
• MP 3008: Earlier-generation Main Processor, predecessor to MP 3101, limited memory capacity.
• MP 3201: Enhanced Main Processor with expanded memory and faster scan rate, direct MP 3101 successor.
• MP 3301: High-performance Main Processor supporting advanced diagnostics and larger program storage.

Digital Input (DI) Modules

• DI 3401: 32-channel 24VDC Digital Input Module, TMR-compatible, field-side isolated.
• DI 3501: 32-channel 120VAC Digital Input Module, high-voltage field wiring support.
• DI 3601: 32-channel 24VDC Digital Input with enhanced diagnostics and short-circuit detection.

Digital Output (DO) Modules

• DO 3401: 16-channel 24VDC Digital Output Module, solid-state, TMR voted output.
• DO 3501: 16-channel Relay Output Module, dry contact, suitable for high-current switching.

Analog Input (AI) Modules

• AI 3351: 8-channel 4–20mA Analog Input Module, 12-bit resolution, TMR signal processing.
• AI 3703: 8-channel Analog Input with HART protocol support, field device diagnostics.

Analog Output (AO) Modules

• AO 3481: 8-channel 4–20mA Analog Output Module, TMR-voted, loop-powered.

Communication & Network Modules

• CM 3201: Tricon Communication Module, supports Modbus RTU/TCP and peer-to-peer Tricon links.
• CM 3204: Enhanced Communication Module with dual Ethernet ports and OPC server support.
• ACM 3501: Advanced Communication Module, supports ControlNet and DCS integration.

Power Supply Modules

• PS 3101: 24VDC Main Power Supply Module, redundant-capable, chassis-mounted.
• PS 3201: Enhanced Power Supply with wider input voltage range and improved diagnostics.

Sourcing Hard-to-Find & Obsolete MP 3101 Parts

The MP 3101 and associated Tricon 3000-series modules are classified as mature/end-of-active-production hardware by Schneider Electric. OEM new-stock availability is limited or discontinued for many line items. DriveKNMS maintains a dedicated inventory of tested surplus, refurbished, and new-surplus Tricon modules to support facilities that cannot or choose not to migrate to current-generation platforms.

DriveKNMS lifecycle support for MP 3101 systems includes:

• Direct replacement MP 3101 units from verified surplus stock.
• Cross-reference sourcing for MP 3008 → MP 3101 → MP 3201 upgrade paths.
• Emergency same-day quotation for unplanned shutdowns and critical spares.
• Long-term supply agreements for facilities with multi-year maintenance contracts.
• Assistance with firmware revision matching to ensure chassis and I/O compatibility.

All units are shipped with full traceability documentation. Customers are advised to specify firmware version and chassis revision when requesting MP 3101 replacements to ensure drop-in compatibility.

Quality Control for the MP 3101 Range

Triconex TMR modules present specific testing challenges due to their three-channel internal architecture and proprietary backplane communication protocol (Tribus). DriveKNMS applies the following QC procedures to all MP 3101 and associated Tricon modules prior to shipment:

• Functional Power-On Test: Each MP 3101 is powered within a live Tricon chassis to verify boot sequence, self-diagnostic pass, and LED status confirmation.
• Tribus Backplane Communication Verification: Module communication across all three TMR legs is verified using Tricon diagnostic software to confirm inter-module voting integrity.
• Memory & Firmware Audit: Firmware revision is read and documented. Program memory is cleared to factory default prior to shipment unless customer specifies otherwise.
• Visual & Component Inspection: PCB inspection for corrosion, capacitor condition, connector pin integrity, and conformal coating status.
• Burn-In Cycle: Extended power-on soak test to screen for latent component failures before shipment.
• Final Documentation: Each unit ships with a test report, serial number record, and firmware revision label.
