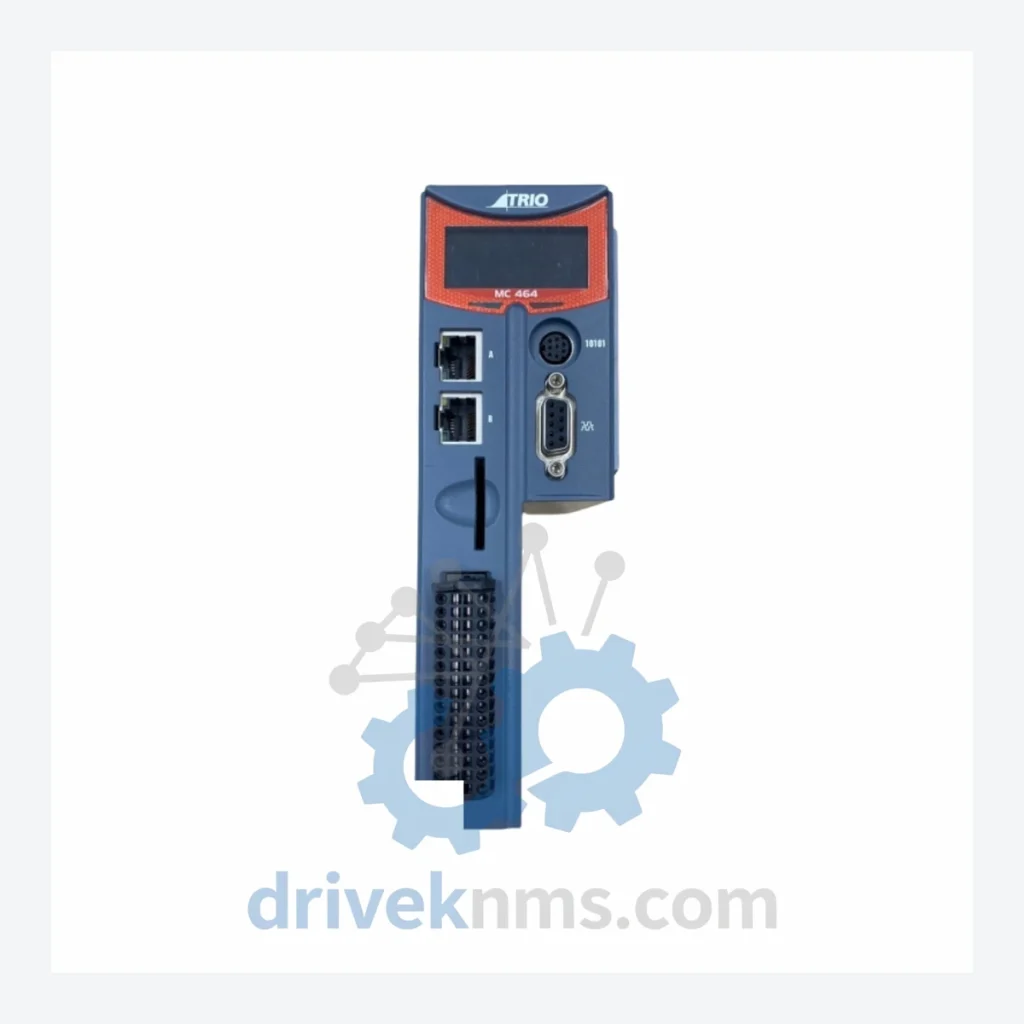

Trio Motion MC464 Series Modules: MC464 P860 Controller —

Technical Dossier

Product Details And Specifications

Trio Motion MC464 Series: Comprehensive Module Range and Technical Overview

The Trio Motion MC464 series is a multi-axis motion controller platform deployed across heavy industrial sectors including petrochemical processing, nuclear facility automation, refinery control systems, and precision manufacturing. Engineered by Trio Motion Technology (UK), the MC464 architecture supports up to 64 axes of coordinated motion via a high-speed backplane bus, making it a reference-grade controller in applications where deterministic real-time performance is non-negotiable. Installed base spans facilities in Europe, Asia-Pacific, and the Middle East, with many units operating continuously for 10–20 years in safety-critical environments. The MC464 P860 variant specifically integrates a high-performance processor module rated for extended industrial duty cycles.

The Evolution of MC464 Architecture

Trio Motion Technology introduced the MC464 platform as a successor to the MC216 and MC316 controller families, extending axis count capacity and introducing a modular I/O expansion architecture compatible with the Trio EURO rack standard. Early MC464 revisions (pre-2005) used a proprietary serial backplane at 10 Mbps; subsequent hardware revisions migrated to a 100 Mbps parallel bus, improving synchronization latency across distributed axis modules. Firmware versions 1.x through 3.x introduced incremental support for CANopen, EtherCAT, and Modbus TCP communication stacks. The P860 processor board represents the mature revision of the MC464 CPU module, incorporating an enhanced DSP core and expanded onboard SRAM for complex motion programs. Compatibility between early-revision I/O modules and P860-generation CPU boards is maintained at the backplane connector level, though firmware alignment is required. As of 2024, the MC464 series is classified as a mature/end-of-active-production platform; Trio Motion Technology continues to supply spare parts through authorized channels, and third-party MRO suppliers such as DriveKNMS maintain stock of both current and obsolete sub-assemblies.

MC464 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Trio Motion MC464 ecosystem, classified by functional category:

CPU / Controller Modules

MC464 P860: Main processor board, 64-axis capacity, DSP core, onboard SRAM, rack-mount.
MC464 P840: Predecessor CPU module, 32-axis capacity, compatible with MC464 EURO rack.
MC464 P820: Entry-level CPU variant, 16-axis motion control, reduced I/O expansion slots.
MC464 P800: Base processor module, early-series hardware revision, 10 Mbps backplane.

Axis / Drive Interface Modules

MC464 AX8: 8-axis servo drive interface module, ±10V analog output, encoder feedback.
MC464 AX4: 4-axis servo interface, differential encoder input, step/direction output.
MC464 AX2: 2-axis compact interface module, suitable for retrofit applications.
MC464 AXEC: EtherCAT axis expansion module, supports up to 16 EtherCAT slave drives.

Digital I/O Modules

MC464 DIO32: 32-channel digital I/O module, 24VDC, configurable input/output ratio.
MC464 DIO16: 16-channel digital I/O, optically isolated, DIN rail compatible.
MC464 DI16: 16-channel dedicated digital input module, 24VDC sinking/sourcing.

Analog I/O Modules

MC464 AIO8: 8-channel analog I/O module, ±10V / 4–20mA selectable, 16-bit resolution.
MC464 AI4: 4-channel analog input, high-resolution ADC, for sensor feedback integration.

Communication / Network Modules

MC464 CAN: CANopen master/slave communication adapter, ISO 11898 compliant.
MC464 ETH: Ethernet TCP/IP communication module, Modbus TCP and Trio ActiveX protocol.
MC464 PROFIBUS: PROFIBUS-DP slave adapter module, GSD file configurable.

Power Supply Modules

MC464 PSU: Dedicated rack power supply unit, 24VDC input, regulated backplane output.
MC464 PSU-R: Redundant power supply module for high-availability rack configurations.

Sourcing Hard-to-Find & Obsolete MC464 Parts

DriveKNMS maintains a dedicated inventory program for Trio Motion MC464 series components, including modules that have reached end-of-active-production status. For facilities operating MC464-based motion control systems beyond the standard support window, DriveKNMS provides the following lifecycle extension services: verified surplus stock of P800, P820, and P840 CPU modules; tested and recertified AX8 and AX4 axis interface boards; cross-reference support for identifying compatible replacement modules where direct equivalents are unavailable; and emergency same-day dispatch for critical production downtime scenarios. All sourced units are traceable to documented supply chains and are not sourced from unverified grey-market channels. Customers operating in regulated industries (nuclear, pharmaceutical, defense) are provided with full documentation packages upon request.

Quality Control for the MC464 Range

Each MC464 module processed by DriveKNMS undergoes a structured verification protocol prior to dispatch. CPU modules (P800–P860) are bench-tested under live firmware load with axis simulation to confirm DSP core integrity, SRAM read/write stability, and backplane bus communication at rated speed. Axis interface modules are validated against encoder feedback simulation across all channels, with output linearity measured at ±10V full scale. Digital I/O modules are cycled through 10,000 switching operations per channel to verify optocoupler integrity. Communication adapter modules (CAN, ETH, PROFIBUS) are tested for protocol handshake completion and data throughput under load. Power supply modules are load-tested at 100% rated output for a minimum of 2 hours with thermal monitoring. All test results are logged and available to customers upon request.
