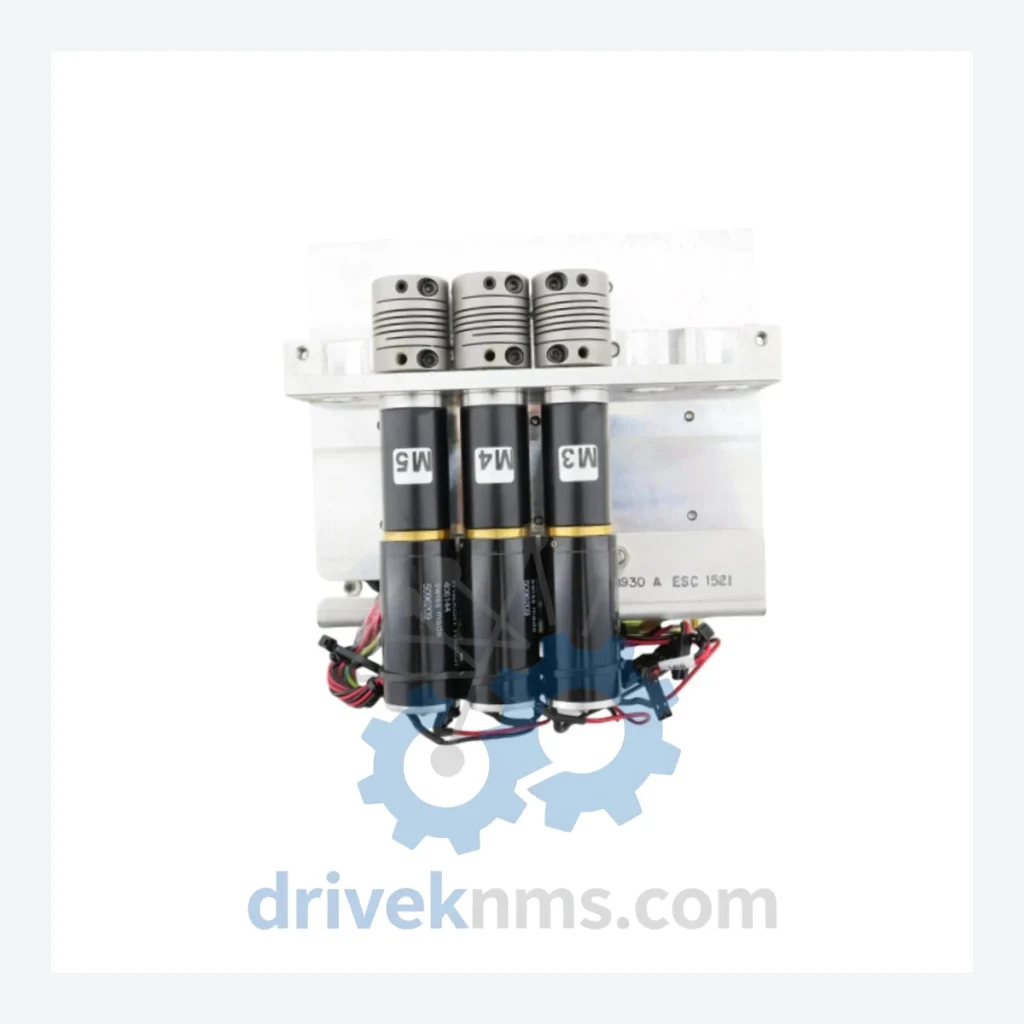

VARIAN Maxon Motor Assembly Modules: 406144 / E11686970 / 810-370066 / AQ8971 / DV524901 —

Technical Dossier

Product Details And Specifications

VARIAN Maxon Motor Assembly Series: Comprehensive Module Range and Technical Overview

The VARIAN motor assembly line — encompassing part numbers 406144, E11686970, 810-370066, AQ8971, and DV524901 — represents a class of precision drive mechanisms deployed in VARIAN Medical Systems equipment, including linear accelerators (LINACs), ion implantation systems, and semiconductor process tools. These assemblies integrate Maxon brushless DC motors (X3 configuration) with precision gearheads and encoder feedback, making them critical motion-control components in high-uptime environments such as radiotherapy clinics, semiconductor fabs, and vacuum process chambers. The installed base of VARIAN systems globally — spanning cancer treatment centers, chip manufacturers, and industrial vacuum platforms — creates sustained demand for these motor assemblies as lifecycle replacement parts.

The Evolution of VARIAN Maxon Motor Assembly Architecture

VARIAN's motion subsystems have evolved across multiple platform generations. Early VARIAN ion implant and LINAC platforms (1990s–2000s) used single-axis Maxon RE-series brushed DC motors with analog encoder feedback. The transition to brushless EC-series Maxon motors (mid-2000s) introduced digital encoder interfaces and improved thermal performance, enabling higher duty cycles in continuous-rotation gantry and collimator leaf drive applications.

The X3 Maxon Motor configuration — as found in assembly 406144 / E11686970 / 810-370066 / AQ8971 / DV524901 — represents a third-generation multi-motor cluster design, where three Maxon motor units are mechanically coupled or independently driven to provide redundancy or torque multiplication. This architecture is characteristic of VARIAN's high-reliability motion platforms used in MLC (Multi-Leaf Collimator) leaf drive banks and robotic couch positioning systems.

Compatibility considerations: these assemblies are not interchangeable across VARIAN platform generations without firmware and encoder calibration verification. Replacement units must match the original motor winding specification, encoder line count, and connector pinout. Cross-referencing all five part numbers (406144, E11686970, 810-370066, AQ8971, DV524901) is standard practice to confirm fitment across VARIAN's internal revision history for this assembly.

VARIAN Maxon Motor Assembly Full Catalog & Functionalities (SKU List)

The following SKUs represent the primary VARIAN motor assembly and related motion-control components commonly sourced as spare or replacement parts. Each entry reflects a distinct part number used across VARIAN's equipment platforms:

406144: Primary VARIAN motor assembly part number; X3 Maxon motor cluster base reference.
E11686970: Engineering-release part number cross-reference for assembly 406144; used in VARIAN service documentation.
810-370066: Mechanical sub-assembly number; identifies the motor bracket and mounting interface.
AQ8971: Alternate vendor or revision code associated with the Maxon motor sub-unit within the assembly.
DV524901: Drive/variant suffix identifying the specific winding and encoder configuration.
Maxon EC-i 40: Brushless DC motor (40 mm diameter) commonly used as the individual unit within X3 cluster assemblies.
Maxon RE 35: Brushed DC motor predecessor used in earlier VARIAN single-motor drive assemblies.
Maxon GP 32: Planetary gearhead (32 mm) paired with EC-i 40 in VARIAN motion assemblies; reduction ratios 4:1–156:1.
Maxon HEDL 5540: Optical encoder module; 500 CPR standard; integrated into VARIAN motor assemblies for position feedback.
Maxon EPOS4: Positioning controller used in VARIAN systems for closed-loop control of Maxon motor assemblies.
VARIAN 810-370067: Variant of the motor assembly with alternate mounting flange; used in specific LINAC gantry configurations.
VARIAN 810-370068: Higher-torque variant of the base assembly; identified by heavier gearhead ratio.
VARIAN E11686971: Revised engineering release of E11686970; incorporates updated encoder cable routing.
VARIAN 406145: Next-revision motor assembly; minor PCB and connector updates over 406144.
VARIAN DV524902: Drive variant with modified winding for 48 VDC bus operation; replaces DV524901 in newer platforms.
VARIAN AQ8972: Updated alternate-vendor code; Maxon motor sub-unit with revised bearing specification.
VARIAN 810-370070: Complete motor-gearhead-encoder sub-assembly; drop-in replacement for 810-370066 in field service kits.

Sourcing Hard-to-Find & Obsolete VARIAN Maxon Motor Assembly Parts

VARIAN medical and industrial platforms have operational lifespans of 15–25 years. As OEM production of specific motor assembly configurations is discontinued, end-users — including hospital biomedical engineering departments, semiconductor equipment maintenance teams, and industrial vacuum system operators — require reliable access to tested surplus and refurbished units.

DriveKNMS maintains a global sourcing network for VARIAN motor assemblies including 406144, E11686970, 810-370066, AQ8971, and DV524901. Our inventory strategy covers: (1) new-old-stock (NOS) units from decommissioned equipment; (2) professionally refurbished assemblies with Maxon motor sub-unit replacement; (3) cross-reference matching across all five part numbers to confirm fitment. For systems where the original assembly is no longer available, DriveKNMS provides engineering consultation on compatible Maxon motor configurations that meet the original winding, encoder, and mechanical interface specifications.

Quality Control for the VARIAN Maxon Motor Assembly Range

Motor assemblies of this type require multi-stage verification before deployment in safety-critical medical or semiconductor environments. DriveKNMS applies the following test protocol to all VARIAN Maxon motor assemblies:

Electrical verification: Winding resistance measurement per phase; insulation resistance test at 500 VDC; back-EMF constant verification against Maxon datasheet specification.
Encoder integrity check: Signal output verification at rated speed; index pulse confirmation; differential signal integrity on A/B/Z channels.
Mechanical inspection: Shaft runout measurement (≤5 µm TIR); gearhead backlash measurement; bearing noise assessment under no-load rotation.
Functional run-in: Closed-loop operation under load simulation for minimum 30 minutes; thermal monitoring to confirm no abnormal temperature rise.
Documentation: Each unit ships with a test report referencing the specific part numbers (406144 / E11686970 / 810-370066 / AQ8971 / DV524901) and measured parameters.
