VIBRO METER 200-595 Series Modules

Technical Dossier

Product Details And Specifications

VIBRO METER 200-595 Series: Comprehensive Module Range and Technical Overview

The VIBRO METER 200-595 series represents a mature, field-proven platform of vibration monitoring and signal conditioning modules deployed across global heavy industry. These cards are integral components of the VM600 and legacy VM500 machinery protection systems, with documented installations in petrochemical complexes, nuclear power stations, offshore platforms, LNG terminals, and large-scale refineries. The 200-595 series occupies a critical position in rotating machinery protection infrastructure: it interfaces directly with proximity probes, accelerometers, and velocity transducers to deliver real-time vibration, position, and speed data to plant DCS and safety instrumented systems. Due to the long operational lifecycles typical of process industry assets—often 20 to 30 years—the 200-595 card range remains in active service at facilities worldwide, even as the broader VIBRO METER product line has transitioned toward newer architectures.

The Evolution of 200-595 Architecture

The 200-595 series was developed as part of VIBRO METER's modular rack-based monitoring philosophy, designed for integration into 19-inch card frames with a standardized backplane bus. Early iterations of the platform, introduced in the 1980s and refined through the 1990s, established the electrical and mechanical form factor that persists across the entire 200-595 range. The architecture separates signal conditioning (input cards), processing (CPU/computation cards), and output/communication functions into discrete, independently replaceable modules—a design principle that maximized maintainability in environments where downtime carries significant financial and safety consequences.

As industrial communication standards evolved, VIBRO METER introduced variants within the 200-595 family supporting serial interfaces (RS-232, RS-485) and later fieldbus protocols, enabling integration with SCADA and DCS platforms from Honeywell, ABB, Emerson, and Yokogawa. The transition from analog-only output cards to hybrid analog/digital modules reflects the broader industry shift toward digital plant architectures during the 2000s. By the 2010s, the VM600 platform emerged as the designated successor, offering Ethernet-based communication and IEC 61511-compliant safety functions. However, the 200-595 series was not immediately retired; instead, it entered a long-tail support phase, with many end users electing to maintain existing installations rather than undertake costly system replacements. Compatibility between 200-595 cards and their associated rack frames, power supplies, and backplane connectors is version-specific and must be verified against the original system configuration documentation before substitution.

200-595 Full Catalog & Functionalities (SKU List)

The following SKUs represent the core module types within the VIBRO METER 200-595 series. Each entry reflects a distinct functional role within the monitoring system architecture.

Signal Conditioning / Input Cards

• 200-595-000-013: Proximity probe input card, eddy-current signal conditioning, dual-channel
• 200-595-001-013: Velocity transducer input card, single-channel, 4–20 mA output
• 200-595-002-013: Accelerometer input card, IEPE/ICP compatible, charge amplifier integrated
• 200-595-010-013: Dual-channel displacement input card, configurable alarm thresholds
• 200-595-020-013: Speed/phase reference input card, TTL and proximity probe compatible
• 200-595-030-013: Temperature input card, thermocouple and RTD signal conditioning

Processing / Computation Cards

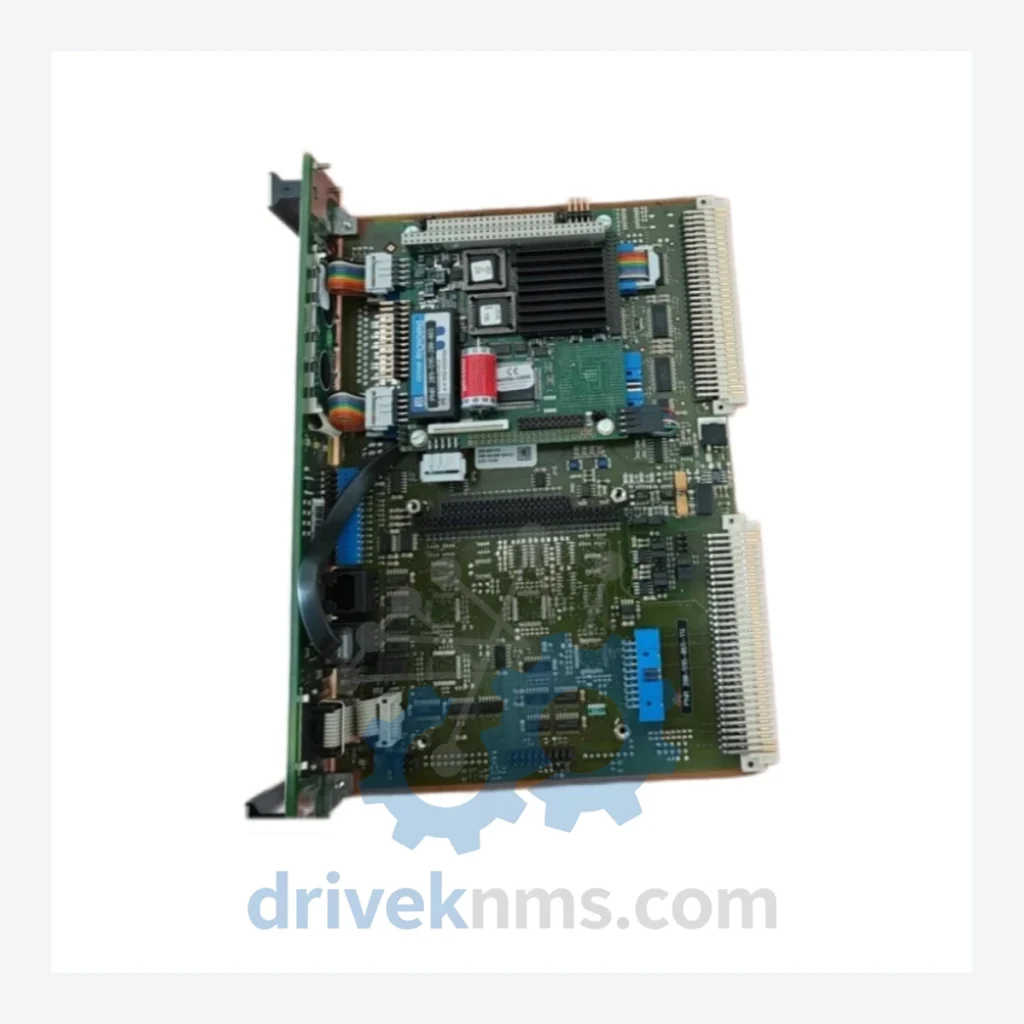

• 200-595-065-114: Central computation card, RMS and peak vibration calculation, relay output control
• 200-595-100-013: Advanced computation card, FFT spectrum analysis capability, dual-processor architecture
• 200-595-110-013: Keyphasor processing card, phase reference computation for balancing and orbit analysis
• 200-595-120-013: Differential expansion computation card, axial position monitoring

Communication / Interface Cards

• 200-595-200-013: Serial communication card, RS-232/RS-485, Modbus RTU protocol support
• 200-595-210-013: Parallel I/O interface card, relay contact outputs, 16-channel digital output
• 200-595-220-013: Analog output card, 4–20 mA isolated outputs, 8-channel configuration
• 200-595-230-013: BNC output card, buffered raw signal output for external analyzers

Power Supply Cards

• 200-595-300-013: Primary power supply card, 24 VDC input, internal bus regulation
• 200-595-310-013: Redundant power supply card, hot-swap capable, fault annunciation relay

Sourcing Hard-to-Find & Obsolete 200-595 Parts

DriveKNMS maintains a dedicated inventory program for VIBRO METER 200-595 series modules, with particular focus on cards that have been discontinued by the original manufacturer. As the 200-595 platform has entered its end-of-life phase, OEM support channels have progressively reduced stock availability and technical assistance for these part numbers. DriveKNMS addresses this gap through three primary sourcing mechanisms: direct surplus acquisition from decommissioned plant assets, cross-referencing with certified refurbishment partners, and maintaining a global network of industrial spare parts brokers with documented VIBRO METER inventory.

For end users operating 200-595-based systems beyond the OEM support window, DriveKNMS provides lifecycle extension services including: verified functional testing against original VIBRO METER performance specifications, documentation of firmware revision compatibility where applicable, and long-term storage under controlled environmental conditions (temperature, humidity, ESD protection) to preserve module integrity. Customers requiring multiple card types for a single rack configuration can submit consolidated part lists for batch sourcing, which typically reduces lead time compared to individual part requests.

Quality Control for the 200-595 Range

The 200-595 series presents specific quality verification challenges due to the complexity of its backplane communication bus and the precision requirements of its analog signal conditioning circuits. DriveKNMS applies a structured test protocol to all 200-595 modules prior to shipment, addressing the failure modes most commonly observed in aged units from this platform.

Input cards are tested for channel-to-channel isolation, input impedance conformance, and signal linearity across the full rated input range. Computation cards undergo functional verification of alarm setpoint logic, relay output actuation, and—where applicable—spectrum computation accuracy. Communication cards are tested for protocol compliance using hardware protocol analyzers, with particular attention to baud rate stability and isolation barrier integrity on RS-485 variants. Power supply cards are load-tested at rated current with ripple and regulation measurements recorded against original specification limits. All modules are inspected for capacitor condition, solder joint integrity, and connector pin condition before functional testing commences. Test records are retained and available to customers on request.
