VIBRO-METER GSI Series: Comprehensive Module Range and Technical Overview

The VIBRO-METER GSI (General Signal Interface) series represents one of the most widely deployed signal conditioning and interface module families in continuous-process heavy industry. Manufactured by VIBRO-METER SA (Fribourg, Switzerland) — now operating under the Meggitt Sensing Systems / Safran group — GSI-series modules are installed across petrochemical complexes, nuclear power stations, offshore platforms, and large-scale refineries worldwide. Their primary function is to bridge raw transducer signals (accelerometers, proximity probes, velocity sensors, thermocouples) to plant-level DCS and safety instrumented systems (SIS). The GSI 124, as a dedicated interface module, handles signal conditioning and galvanic isolation for eddy-current proximity probe channels, making it a critical component in turbomachinery protection systems operating under API 670 and IEC 61511 frameworks.

The Evolution of GSI Architecture

The GSI series was introduced in the late 1980s as a modular rack-based architecture designed to replace hardwired relay logic in rotating machinery monitoring. Early generations (GSI 100-series) focused on single-channel analog signal conditioning with passive isolation. The mid-generation GSI 120-series introduced active buffering, configurable alarm thresholds via DIP switches, and compatibility with VIBRO-METER's VM 600 rack system. The GSI 124 specifically added dual-channel proximity probe interfacing with selectable gap voltage outputs (–24 VDC driver supply) and 4–20 mA retransmission outputs for DCS integration.

The later GSI 200-series and IQS 450/600 platforms introduced digital communication (PROFIBUS, Modbus RTU) and replaced analog potentiometer calibration with software-configurable parameters via VIBRO-METER's VMConfig utility. Compatibility between generations is limited: GSI 100/120-series modules use a proprietary 96-pin DIN 41612 backplane connector that is not pin-compatible with IQS-series racks. Plants upgrading from GSI to IQS must account for full rack replacement, rewiring of field terminal blocks, and reconfiguration of alarm setpoints. For installations where a full migration is not feasible, DriveKNMS maintains a dedicated stock of GSI-series spares to support long-term lifecycle extension.

GSI Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the VIBRO-METER GSI and associated VM 600 ecosystem. Modules are grouped by functional category.

Interface & Signal Conditioning Modules

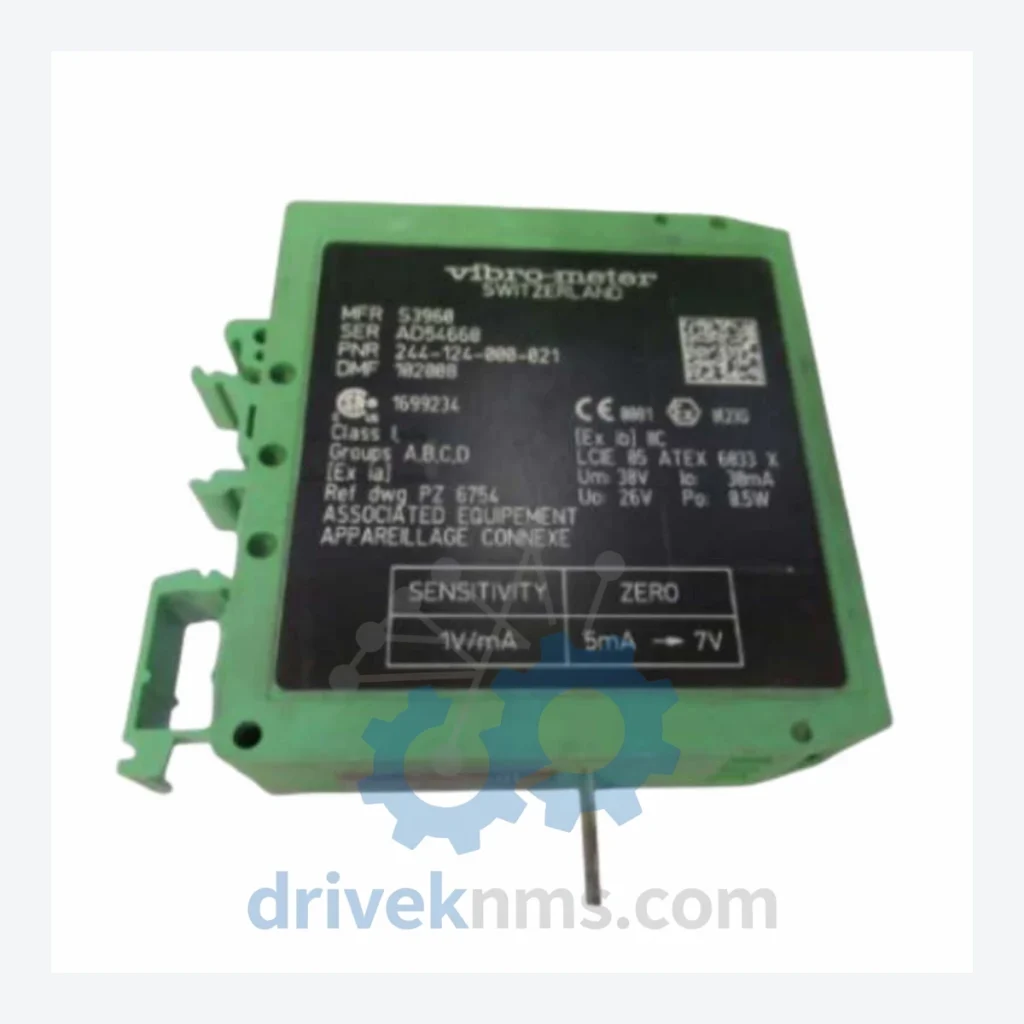

• GSI 124: Dual-channel eddy-current proximity probe interface, –24 VDC driver, 4–20 mA output, galvanic isolation.
• GSI 127: Single-channel velocity/acceleration signal conditioner with RMS and peak detection outputs.
• GSI 127.1: Enhanced GSI 127 variant with extended frequency response (2 Hz–10 kHz) for high-speed machinery.
• GSI 127.2: GSI 127 variant with ATEX Zone 1 intrinsic safety barrier for hazardous area installations.
• GSI 200: Multi-channel universal input interface module supporting proximity, velocity, and temperature inputs on a single card.

Rack Controller & CPU Modules

• IPC 711: Rack-level intelligent processing card; manages alarm logic, relay outputs, and serial communication for VM 600 racks.
• IPC 711-T: IPC 711 variant with extended temperature rating (–20°C to +70°C) for outdoor enclosure installations.
• IPC 600: Earlier-generation rack controller for VM 600 systems; supports up to 6 I/O module slots.
• IPC 620: Expanded IPC 600 with dual redundant power inputs and watchdog relay output.

Measurement & Monitoring Modules

• IQS 450: Intelligent measurement module for displacement (gap) and dynamic (vibration) channels; PROFIBUS DP interface.
• IQS 452: IQS 450 variant with additional OK relay output and configurable danger/alert setpoints per channel.
• IQS 600: High-density 6-channel measurement module; supports Bode plot and orbit data acquisition for advanced diagnostics.
• IQS 610: IQS 600 variant with integrated speed measurement channel (keyphasor input) for phase-referenced analysis.
• TQ 402: Torque and speed measurement module; interfaces with strain-gauge telemetry systems on rotating shafts.
• VM 600: Core rack chassis for the VM 600 system; 19-inch, 6U, accepts up to 12 module slots with passive backplane.

Sourcing Hard-to-Find & Obsolete GSI Series Parts

VIBRO-METER officially discontinued active production of the GSI 100 and GSI 120 series. Replacement parts are no longer available through standard OEM distribution channels. DriveKNMS specializes in lifecycle extension support for exactly this scenario. Our inventory includes tested, pull-out GSI 124, GSI 127, GSI 127.1, and GSI 200 modules sourced from decommissioned plant equipment, with full traceability documentation. For customers operating under planned maintenance windows, we offer advance reservation of critical spares against scheduled turnaround dates. All obsolete modules are stored in ESD-safe, climate-controlled warehousing and shipped with individual test reports. Customers requiring long-term supply agreements (LTA) for multi-year maintenance contracts are encouraged to contact our technical sales team directly.

Quality Control for the GSI Range

GSI-series modules incorporate multi-layer PCBs with proprietary VIBRO-METER ASIC components that require specialized test procedures beyond standard bench multimeter checks. DriveKNMS applies the following protocol to all GSI modules prior to dispatch:

• Backplane connector pin continuity and isolation resistance test (≥100 MΩ at 500 VDC) per IEC 61010-1.
• Functional signal injection test: calibrated proximity probe simulator applied to input terminals; output verified against factory specification (gap voltage linearity ±0.5%, 4–20 mA output accuracy ±0.1 mA).
• Alarm relay actuation test: alert and danger thresholds verified at ±2% of setpoint.
• Thermal soak: 4-hour burn-in at 55°C to screen latent component failures.
• Final visual inspection: PCB for corrosion, cold solder joints, and capacitor condition.

Each module ships with a signed test record referencing the specific unit serial number.
