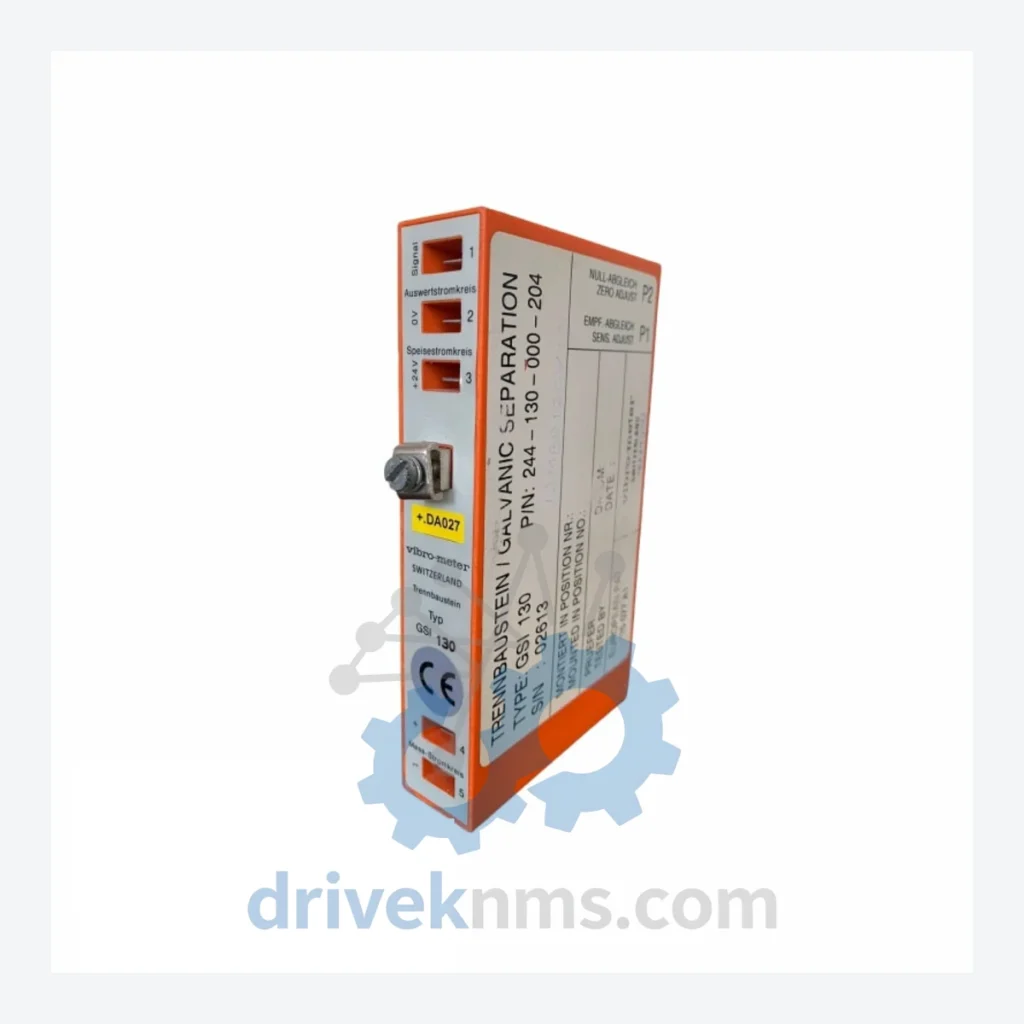

Vibro-Meter GSI130 Galvanic Separation Modules GSI130 244-130-000-204

Technical Dossier

Product Details And Specifications

Vibro-Meter GSI130 Series Technical Notes

The Vibro-Meter GSI130 series is a line of galvanic separation and signal conditioning modules designed for continuous integration within machinery protection and condition monitoring systems. Vibro-Meter, a brand of Meggitt SA (Switzerland), has supplied these modules to critical industrial installations worldwide, including petrochemical refineries, nuclear power stations, offshore platforms, and rotating machinery monitoring systems in heavy manufacturing. The GSI130 series functions as the signal isolation backbone in multi-channel vibration monitoring racks, ensuring electrical separation between field sensors (accelerometers, proximity probes, velocity transducers) and the data acquisition or control layer. Its role in preventing ground loop interference and protecting downstream electronics from high-voltage transients makes it a non-negotiable component in SIL-rated and API 670-compliant monitoring architectures.

The Evolution of GSI130 Architecture

The GSI130 series was developed as part of Vibro-Meter's modular rack-based instrumentation philosophy, which traces its origins to the VM600 and earlier CM series platforms. Early galvanic isolation modules in the Vibro-Meter ecosystem used transformer-based isolation with passive signal conditioning, offering limited bandwidth and fixed gain. The GSI130 generation introduced active isolation circuitry with configurable input impedance and improved common-mode rejection ratios (CMRR), enabling compatibility with both IEPE (Integrated Electronics Piezo-Electric) and charge-mode sensors.

As industrial DCS and PLC architectures migrated from 4–20 mA analog loops to HART and fieldbus protocols, the GSI130 maintained backward compatibility with legacy wiring infrastructure while supporting higher-resolution signal transmission. The series is now considered mature/end-of-production for several sub-variants, with Meggitt/Vibro-Meter directing new installations toward the VM600 MPC4 and IOC4T card set. However, the installed base of GSI130 modules across long-lifecycle plants (nuclear, refinery, hydro) remains substantial, sustaining strong demand for spare and replacement units through specialist distributors such as DriveKNMS.

GSI130 Full Catalog & Functionalities (SKU List)

Galvanic Separation / Signal Isolation Modules

• GSI130 244-130-000-204: Galvanic separation module, standard configuration, rack-mount, for vibration signal isolation.
• GSI130 244-130-000-104: Galvanic separation module, single-channel, low-noise variant for proximity probe inputs.
• GSI130 244-130-000-304: Dual-channel galvanic isolator with extended frequency response for high-speed machinery.
• GSI130 244-130-000-404: Galvanic separation module with 4–20 mA output conversion for DCS integration.
• GSI130 244-130-000-504: Isolated signal conditioner for velocity transducer (geophone) inputs, 10 Hz–1 kHz.
• GSI130 244-130-000-604: IEPE-compatible galvanic isolator with constant current source, 4 mA excitation.
• GSI130 244-130-000-704: High-voltage isolation variant, 1500 V rms isolation barrier, for hazardous area installations.
• GSI130 244-130-000-804: Charge-mode input galvanic separator for high-temperature piezoelectric sensors.

Power Supply & Rack Infrastructure

• GSI130 244-130-100-001: Rack power supply module, 24 VDC input, for GSI130 backplane bus.
• GSI130 244-130-100-002: Redundant power supply module, dual-feed, for continuous availability racks.
• GSI130 244-130-100-003: Backplane bus terminator card for 8-slot GSI130 rack chassis.

Communication & Interface Adapters

• GSI130 244-130-200-001: RS-232/RS-485 communication adapter for GSI130 rack to SCADA interface.
• GSI130 244-130-200-002: Modbus RTU gateway module for GSI130 series integration with PLC systems.
• GSI130 244-130-200-003: HART pass-through adapter, preserves HART signal integrity across isolation barrier.

Chassis & Mounting Hardware

• GSI130 244-130-300-001: 8-slot 19-inch rack chassis for GSI130 module series, DIN rail compatible.
• GSI130 244-130-300-002: 16-slot extended rack chassis with integrated backplane for high-channel-count installations.
• GSI130 244-130-300-003: Field terminal block assembly for GSI130 rack, screw-type, 24-channel.

Sourcing Hard-to-Find & Obsolete GSI130 Parts

Several GSI130 sub-variants have been discontinued by Meggitt SA, with no direct OEM replacement offered for legacy rack configurations. Plants operating on 20–40 year maintenance cycles — including nuclear facilities under NRC or IAEA oversight, and refineries with API 670 machinery protection mandates — cannot perform like-for-like substitutions without extensive re-engineering and re-validation costs.

DriveKNMS maintains a dedicated inventory of GSI130 modules sourced through certified secondary market channels. All units are subject to pre-shipment functional verification. DriveKNMS provides: (1) traceable unit history documentation where available; (2) cross-reference matching for obsolete part numbers to current equivalents; (3) long-term supply agreements for plants requiring multi-year spare part coverage; (4) emergency urgent RFQ handling for critical plant shutdown scenarios. Inquiries for bulk quantities, kitted rack assemblies, or specific firmware-revision units are handled directly by the technical sales team.
