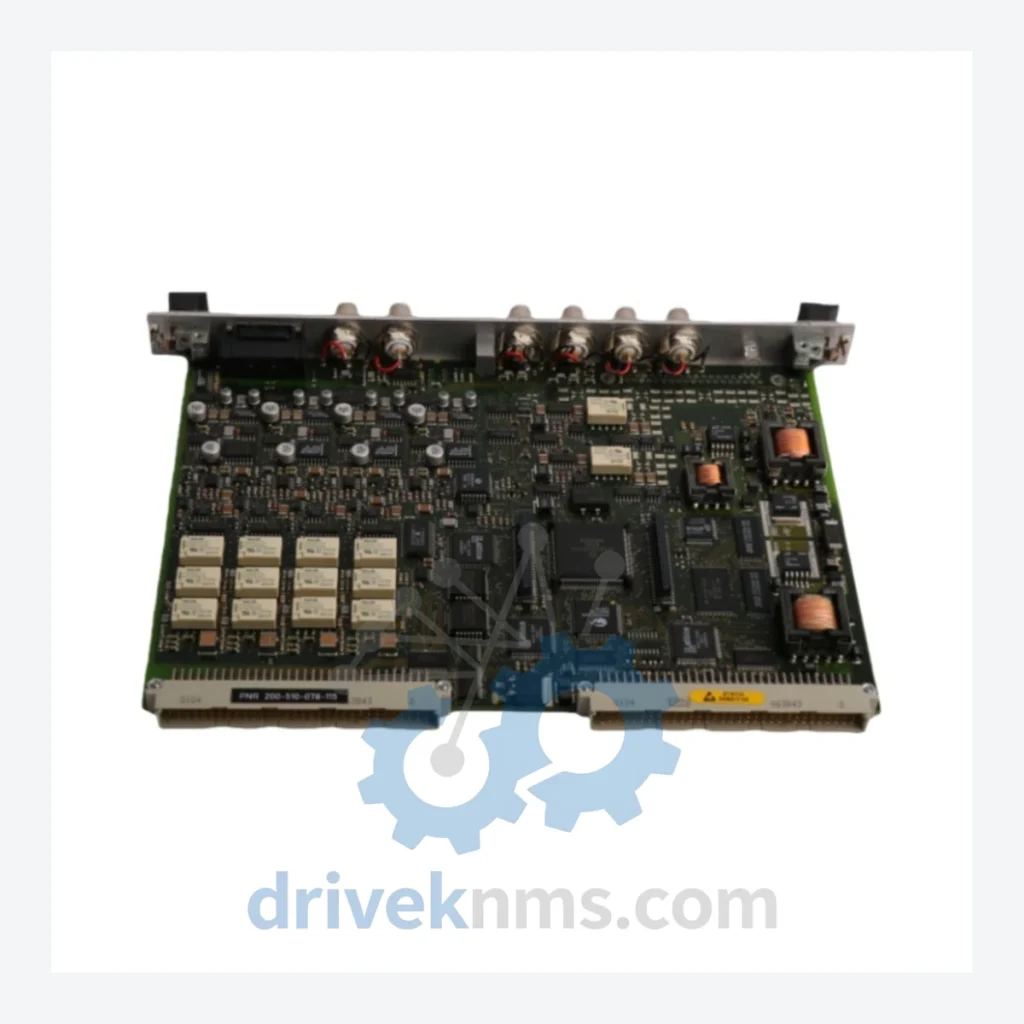

Vibro-Meter MPC4 200-510-078-115 Mechanical Protection Card – Obsolete VM600 Spare Part

Technical Dossier

Product Details And Specifications

Vibro-Meter MPC4 200-510-078-115 Mechanical Protection Card – Obsolete VM600 Spare Part

When a Mechanical Protection Card fails inside a running VM600 rack, the consequences are not limited to a single sensor channel going dark. The MPC4 is the module responsible for processing vibration and speed signals and triggering protective relay outputs. Its failure can force a full turbine or compressor shutdown — and in facilities where that machine is the backbone of a continuous process, unplanned downtime costs routinely exceed USD $50,000 per day. The deeper problem: Vibro-Meter's VM600 platform has been progressively phased out, and the MPC4 200-510-078-115 is no longer manufactured. Migrating to a current-generation protection system — hardware, engineering, commissioning, and revalidation — typically runs USD $300,000 to over $1,000,000 per train. DriveKNMS holds verified physical stock of this card. Securing a spare now is not a procurement exercise; it is asset protection.

Technical Specifications

Solving the Discontinued Hardware Crisis

The VM600 system was deployed extensively throughout the 1990s and 2000s in oil & gas, power generation, and petrochemical facilities. Many of these installations remain in service today — not because operators are unaware of the platform's age, but because the machines they protect are themselves long-lived capital assets with 20- to 40-year operational lifespans. Replacing the protection system in isolation is rarely straightforward: sensor wiring, relay logic, DCS integration points, and safety function documentation are all tied to the existing architecture. A forced migration triggered by a single failed card is the worst possible scenario — rushed, unplanned, and expensive.

The MPC4 card occupies a specific functional role within the VM600 rack that cannot be substituted with a generic module. It handles the conditioning, processing, and relay-output logic for mechanical protection channels. Removing it from service without a direct replacement means either running the machine unprotected — an unacceptable safety and insurance liability — or shutting down until a replacement is sourced. In markets where VM600 spares have largely disappeared from authorized channels, the sourcing window for a verified unit is narrow. Facilities that have not pre-positioned at least one spare MPC4 are operating with a single point of failure that has no fast resolution path.

The practical strategy for plant managers facing VM600 end-of-life pressure is not immediate system replacement. It is a structured spare-parts buffer that extends the operational life of the existing protection system by 5 to 10 years — long enough to align the migration with a planned major overhaul, secure capital budget approval, and execute the project on the facility's schedule rather than in response to an emergency.

Condition & Reliability Assurance

Obsolete cards sourced from secondary markets carry real risks. DriveKNMS applies a 5-step inspection protocol before any VM600 module is offered for sale:

• Visual and mechanical inspection: Board-level examination for physical damage, burn marks, cracked solder joints, and connector pin condition. Cards with corrosion on edge connectors or backplane pins are rejected.
• Electrolytic capacitor assessment: Electrolytic capacitors are the primary age-related failure point on cards of this era. Each unit is inspected for bulging, leakage, and ESR deviation. Cards with suspect capacitors are flagged and not offered as direct replacements without disclosure.
• Firmware and label verification: The hardware revision and any firmware version markings are documented and cross-referenced against the part number suffix (-115) to confirm configuration consistency.
• Functional pre-check: Where test infrastructure permits, cards are powered and basic signal-path continuity is verified prior to packaging.
• Packaging for long-term storage: Units are shipped in anti-static packaging with desiccant. Cards intended for long-term spare storage are sealed to minimize humidity exposure during storage.

Key Features for System Maintenance

• Drop-in replacement: The MPC4 200-510-078-115 installs directly into the existing VM600 rack slot. No rewiring, no DCS reconfiguration, no relay logic changes.
• No reprogramming required: Protection setpoints and channel configuration are stored in the rack system, not on the card itself. Swapping the card does not require re-entry of trip thresholds or time delays.
• Avoids engineering reconstruction costs: A like-for-like card replacement eliminates the need for a protection system functional safety review, revalidation testing, or updated as-built documentation — costs that accompany any platform migration.
• Maintains API 670 compliance continuity: Facilities operating under API 670 machinery protection standards can maintain their existing compliance posture without re-engineering the protection architecture.
• Supports long-term asset strategy: Pre-positioning one or two MPC4 spares converts a potential emergency shutdown into a planned maintenance event, preserving production continuity and protecting capital asset value.

FAQ

What warranty applies to an obsolete card like the MPC4?
DriveKNMS provides a 90-day warranty covering functional defects identified during installation and commissioning. Given the age of this platform, we recommend functional verification in a test rack prior to installation in a live protection system.

How do I confirm the card is genuine and not a counterfeit?
All units are inspected against known-good reference markings for the MPC4 200-510-078-115 part number. We provide photographic documentation of the physical unit — board markings, revision labels, and connector condition — prior to shipment upon request.

Should I buy more than one unit?
For facilities with multiple VM600 racks or machines, holding two units is the standard recommendation. The MPC4 is no longer manufactured, and secondary market availability will continue to decline. The cost of a second spare card is a fraction of one day of unplanned downtime on a protected machine.

Can you source other VM600 modules?
Yes. DriveKNMS specializes in legacy Vibro-Meter and broader turbomachinery protection system spares. Contact us with your full rack configuration and we will advise on availability.
