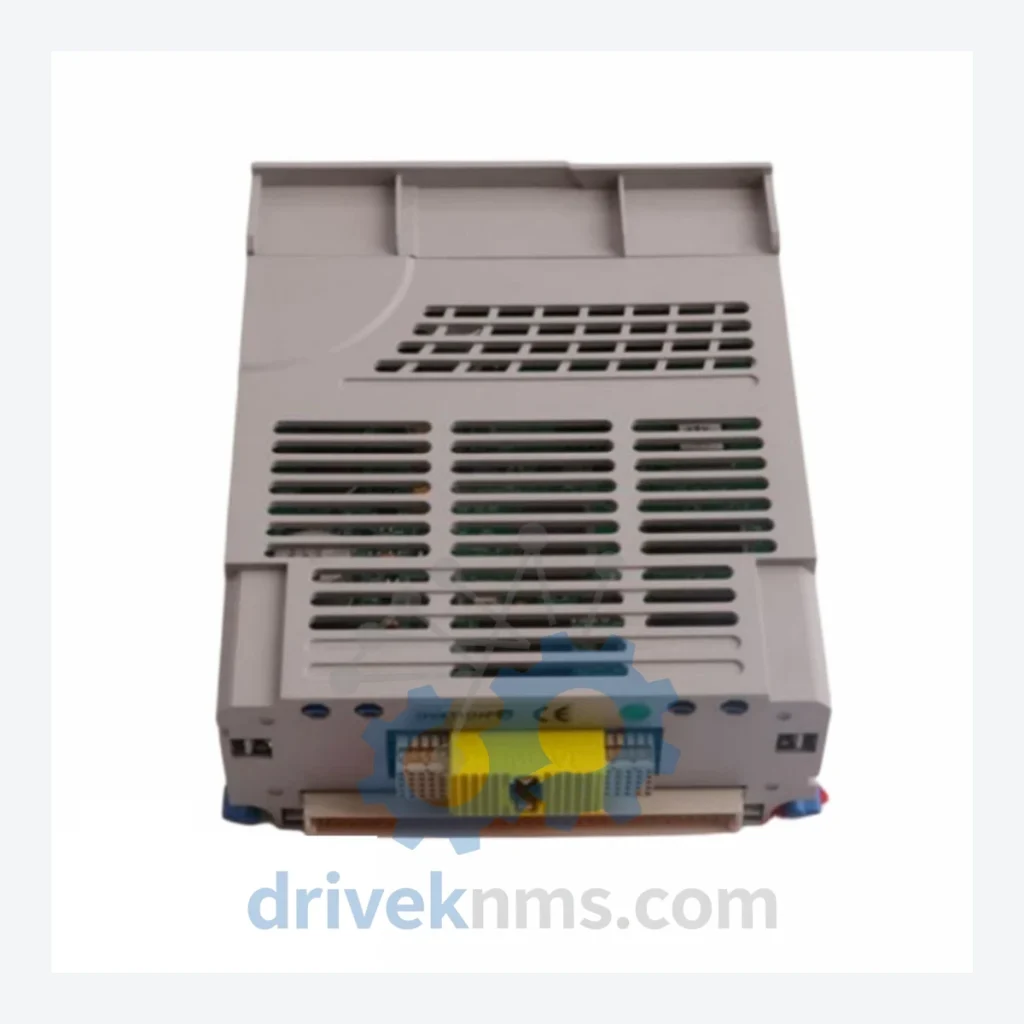

Westinghouse WDPF 1C31129G03 Modules

Technical Dossier

Product Details And Specifications

Westinghouse WDPF Series: Comprehensive Module Range and Technical Overview

The Westinghouse WDPF (Westinghouse Distributed Processing Family) is a process control platform engineered for continuous, high-availability industrial operations. Deployed across petrochemical refineries, nuclear power stations, fossil fuel generation plants, and large-scale chemical processing facilities, the WDPF architecture has accumulated decades of field-proven runtime in environments where unplanned downtime carries direct safety and financial consequences. Its modular backplane design, deterministic scan cycle, and redundant communication bus architecture made it a reference standard for distributed control system (DCS) engineering throughout the 1980s and 1990s. Today, the installed base remains substantial, and the demand for verified spare parts — including the 1C31129G03 Diagnostic Analog Output Module — continues across the full lifecycle of these plants.

The Evolution of WDPF Architecture

The WDPF platform was introduced by Westinghouse Electric Corporation in the early 1980s as a response to the limitations of centralized control architectures. The original WDPF-I generation established the distributed node concept, where individual Distributed Processing Units (DPUs) handled localized control loops independently, communicating over a proprietary WEStation data highway. This design eliminated single-point-of-failure risks inherent in centralized PLC topologies.

The WDPF-II generation refined the backplane bus, increased I/O density per node, and introduced enhanced diagnostic capabilities — including the analog output diagnostic functions embedded in modules such as the 1C31129G03. Communication adapters were updated to support higher-speed data exchange between DPUs and operator workstations running the WEStation UNIX-based HMI environment.

Following Westinghouse's exit from the power generation controls market and subsequent acquisition by Emerson (Ovation platform) and ABB, the WDPF line entered a maintenance-only lifecycle phase. No new hardware revisions have been released. Plants operating WDPF systems face a binary choice: full DCS migration (capital-intensive, requiring re-engineering of all control logic) or lifecycle extension through verified spare parts sourcing. The latter is the dominant strategy for facilities with remaining operational horizons of 10–20 years.

Compatibility note: WDPF-I and WDPF-II modules are not universally interchangeable. Backplane connector pinouts, firmware revision dependencies, and DPU slot addressing must be verified before substitution. DriveKNMS provides cross-reference validation as part of its sourcing process.

WDPF Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced components within the Westinghouse WDPF module family. Each entry reflects the module's primary functional role within the DCS architecture.

Controllers & Processors

• 1C31116G01: DPU Processor Module — primary distributed processing unit controller for WDPF node execution.
• 1C31113G03: DPU Coprocessor Module — extended arithmetic and logic processing support for high-density control loops.
• 1C31192G01: Sequence of Events (SOE) Controller Module — high-resolution timestamping for event-driven process diagnostics.

Analog I/O Modules

• 1C31129G03: Diagnostic Analog Output Module — 4–20 mA analog output with integrated loop diagnostics and open-circuit detection.
• 1C31189G01: Analog Input Module — 16-channel differential analog input for process variable acquisition.
• 1C31227G01: Analog Output Module — 8-channel 4–20 mA output for final control element positioning.
• 1C31234G01: High-Density Analog Input Module — 32-channel configuration for high I/O count process areas.
• 1C31150G01: Thermocouple Input Module — direct thermocouple signal conditioning with cold junction compensation.
• 1C31166G01: RTD Input Module — resistance temperature detector input with 3-wire and 4-wire support.

Digital I/O Modules

• 1C31169G01: Digital Input Module — 32-channel 24 VDC discrete input for field contact monitoring.
• 1C31179G01: Digital Output Module — 16-channel relay output for motor starter and valve actuator control.
• 1C31194G01: High-Speed Digital Input Module — pulse counting and frequency measurement for turbine speed monitoring.
• 1C31197G01: Digital Output Module — 32-channel solid-state output for high-density discrete control applications.

Communication & Network Adapters

• 1C31199G01: WEStation Data Highway Interface Module — primary node communication adapter for WDPF bus connectivity.
• 1C31232G01: Redundant Communication Module — dual-path data highway adapter for fault-tolerant node communication.
• 1C31238H01: Serial Communication Interface — RS-232/RS-485 gateway for third-party device integration and legacy protocol bridging.

Sourcing Hard-to-Find & Obsolete WDPF Parts

The Westinghouse WDPF platform has been in end-of-life status for over two decades. OEM support, factory repair services, and new-manufacture availability have been discontinued. The secondary market is the sole viable source for replacement modules, and quality variance within that market is significant.

DriveKNMS maintains a dedicated inventory of WDPF modules sourced from decommissioned plant equipment, controlled storage facilities, and verified industrial surplus channels. Each unit in stock is cataloged by part number, revision suffix (G01, G02, G03, H01, etc.), and physical condition grade. For the 1C31129G03 specifically, DriveKNMS holds stock across multiple revision levels and can advise on revision compatibility with specific DPU firmware versions upon request.

For facilities requiring long-term supply agreements — covering annual maintenance windows, emergency replacement pools, or full-plant spare parts kitting — DriveKNMS offers structured procurement contracts with guaranteed response times and documented traceability for each unit shipped.

Quality Control for the WDPF Range

WDPF modules present specific testing challenges due to their proprietary backplane bus protocol and the age-related degradation patterns common in modules that have been in continuous service or extended storage. DriveKNMS applies a structured inspection and functional verification process to all WDPF inventory:

• Visual inspection: PCB examination for corrosion, capacitor swelling, solder joint fatigue, and connector pin integrity.
• Backplane bus communication test: Each module is seated in a WDPF-compatible test rack and verified for correct node addressing and data highway handshake.
• Analog channel calibration: For analog I/O modules including the 1C31129G03, all output channels are verified against NIST-traceable reference standards across the full 4–20 mA range.
• Diagnostic register verification: Modules with embedded diagnostic functions are tested for correct fault flag generation under simulated open-loop and over-range conditions.
• Burn-in cycle: Selected modules undergo extended power-on testing to identify latent component failures before shipment.

Test records are retained and available for customer review upon request. All units are shipped with ESD-protective packaging and documented part number confirmation.
